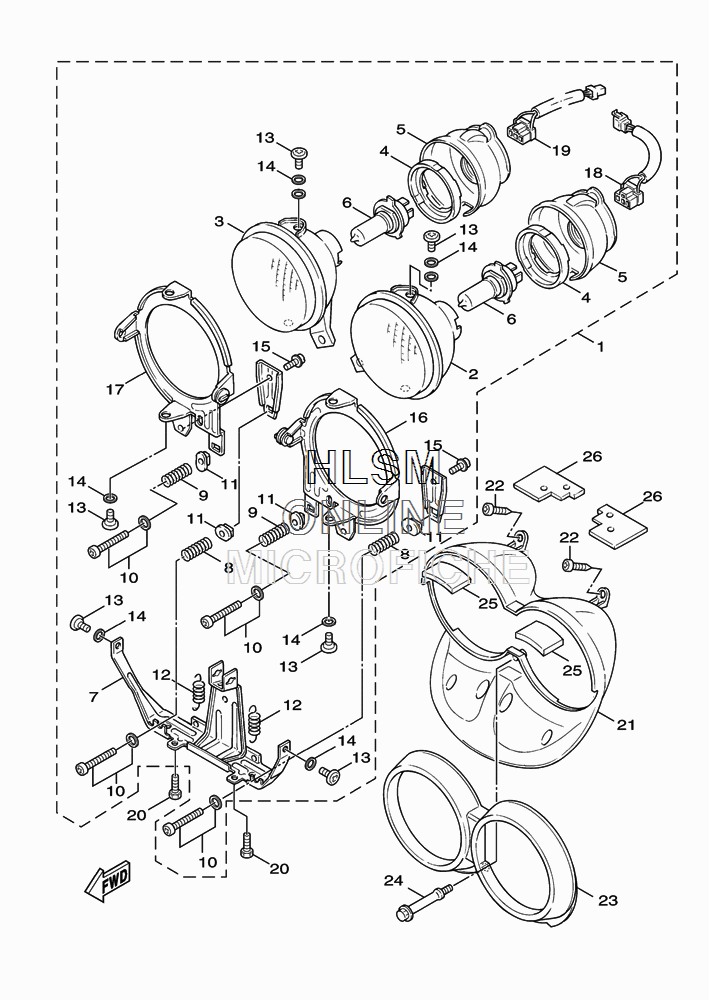

HEADLIGHT ASSY. для Yamaha ZUMA - 2010 года выпуска
-
№АртикулНазвание
-
15PJ-H430A-11-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
25PJ-H4310-10-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
35PJ-H4310-20-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
45PJ-H4397-10-00 COVER, SOCKETCOVER, SOCKET
-
55PJ-H4378-10-00 CAPCAP
-
65PJ-H4314-00-00 BULB, HEADLIGHTBULB, HEADLIGHT
-
75PJ-H431R-00-00 STAY, SETTINGSTAY, SETTING
-
85PJ-H4332-00-00 SPRING, SCREWSPRING, SCREW
-
95PJ-H4332-00-00 SPRING, SCREWSPRING, SCREW
-
105PJ-H4331-00-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
115PJ-H4317-00-00 NUTNUT
-
125PJ-H4335-00-00 SPRINGSPRING
-
135PJ-H4325-00-00 SCREW, RIM FITTINGSCREW, RIM FITTING
-
145PJ-H4344-00-00 WASHER, PLAINWASHER, PLAIN
-
155PJ-H4526-00-00 SCREWSCREW
-
165PJ-H4318-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
175PJ-H4319-00-00 STAY, HEADLIGHT 2STAY, HEADLIGHT 2
-
185PJ-H4312-10-00 CORD ASSYCORD ASSY
-
195PJ-H4312-00-00 CORD ASSYCORD ASSY
-
2090119-06821-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
215PJ-H4144-00-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
2297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
235PJ-H4169-00-00 GUARD, HEADLIGHTGUARD, HEADLIGHT
-
245PJ-H3546-00-00 BOLTBOLT
-
254VP-H4366-00-00 DAMPER, HEADLIGHT 1DAMPER, HEADLIGHT 1
-
264VP-H4368-00-00 DAMPER 3DAMPER 3
