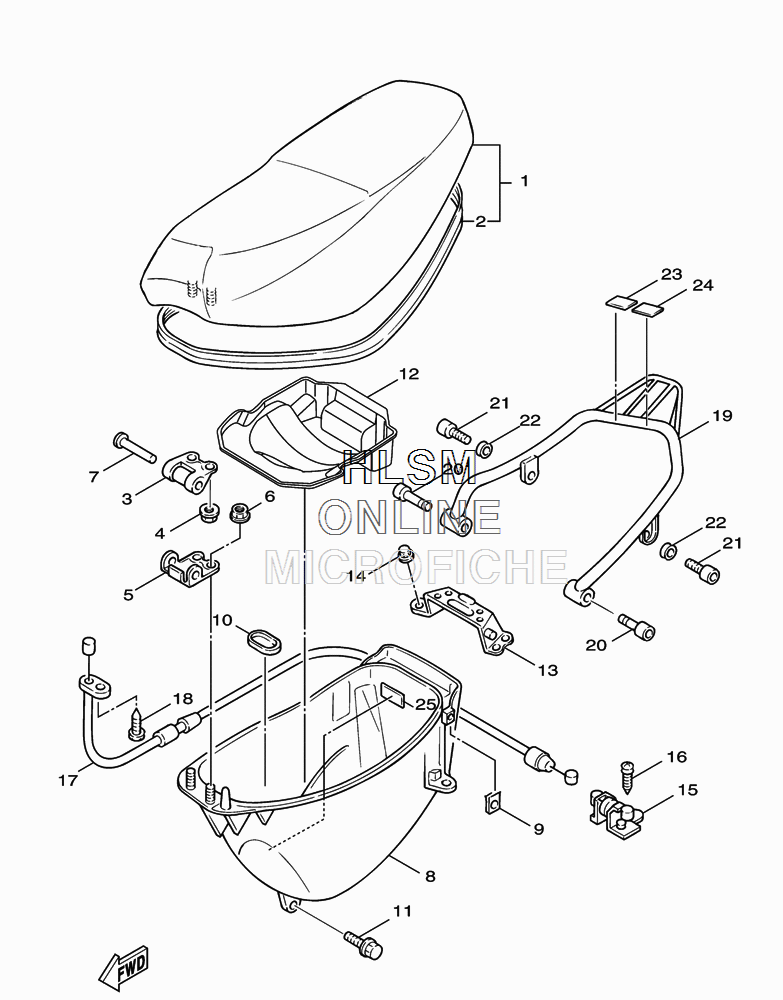

SEAT ASSY. для Yamaha ZUMA - 2010 года выпуска
-
№АртикулНазвание
-
15PJ-F4730-00-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
24VP-F475M-00-00 SEALSEAL
-
34CW-F4726-01-00 HINGE, SEATHINGE, SEAT
-
495707-06500-00 NUT, FLANGENUT, FLANGE
-
54VP-F4726-00-00 HINGE, SEATHINGE, SEAT
-
695707-06500-00 NUT, FLANGENUT, FLANGE
-
790241-10015-00 PINPIN
-
84VP-F473R-02-00 BOX 1BOX 1
-
990183-05807-00 NUT, SPRINGNUT, SPRING
-
104VP-F4742-00-00 GROMMETGROMMET
-
1190109-063F1-00 BOLTBOLT
-
125DA-F4747-00-00 DAMPER, SEATDAMPER, SEAT
-
134VP-F4738-10-00 BRACKET, SEATBRACKET, SEAT
-
1495707-06500-00 NUT, FLANGENUT, FLANGE
-
154UE-F4780-02-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
1697007-06016-00 BOLTBOLT
-
174VP-F478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1898507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
194VP-F4842-01-1V CARRIER, REARCARRIER, REAR
-
2091317-06045-00 BOLTBOLT
-
2191317-06016-00 BOLTBOLT
-
2292907-06600-00 WASHER, PLATEWASHER, PLATE
-
235PJ-F4875-00-00 LABEL 1LABEL 1
-
245PJ-F4877-10-00 LABEL, CAUTIONLABEL, CAUTION
-
255PJ-F4877-00-00 LABEL, CAUTIONLABEL, CAUTION
