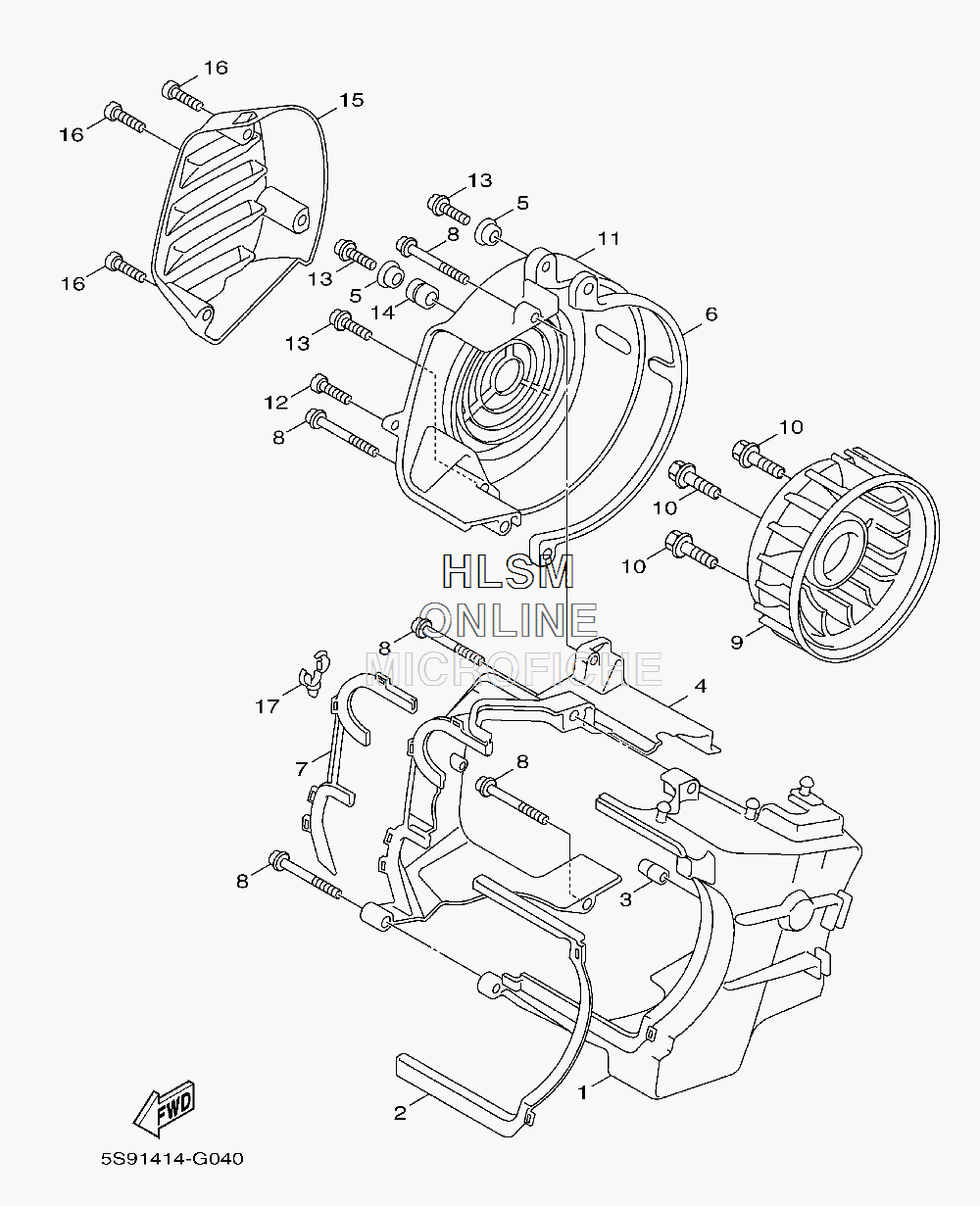

AIR SHROUD W/ FAN для Yamaha ZUMA 125 - 2011 года выпуска
-
№АртикулНазвание
-
15ML-E2651-00-00 AIR SHROUD, CYLINDER 1AIR SHROUD, CYLINDER 1
-
25ML-E2659-00-00 DAMPER, AIR SHROUD 2DAMPER, AIR SHROUD 2
-
33KW-E3569-00-00 PLUG, BLINDPLUG, BLIND
-
44C6-E2652-00-00 AIR SHROUD, CYLINDER 2AIR SHROUD, CYLINDER 2
-
590387-068F9-00 COLLARCOLLAR
-
65ML-E2658-00-00 DAMPER, AIR SHROUD 1DAMPER, AIR SHROUD 1
-
75ML-E2668-00-00 DAMPER, AIR SHROUD 3DAMPER, AIR SHROUD 3
-
897707-60530-00 SCREW, TAPPINGSCREW, TAPPING
-
95TY-E2611-00-00 FANFAN
-
1090119-06857-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
115ML-E2653-01-00 AIR SHROUD, CYLINDER 3AIR SHROUD, CYLINDER 3
-
1297707-60516-00 SCREW, TAPPINGSCREW, TAPPING
-
1398980-06020-00 SCREW, BINDSCREW, BIND
-
1490480-12497-00 GROMMETGROMMET
-
155S9-E262H-00-00 GUIDE 1GUIDE 1
-
1697707-60520-00 SCREW, TAPPINGSCREW, TAPPING
-
1790464-10800-00 CLAMPCLAMP
