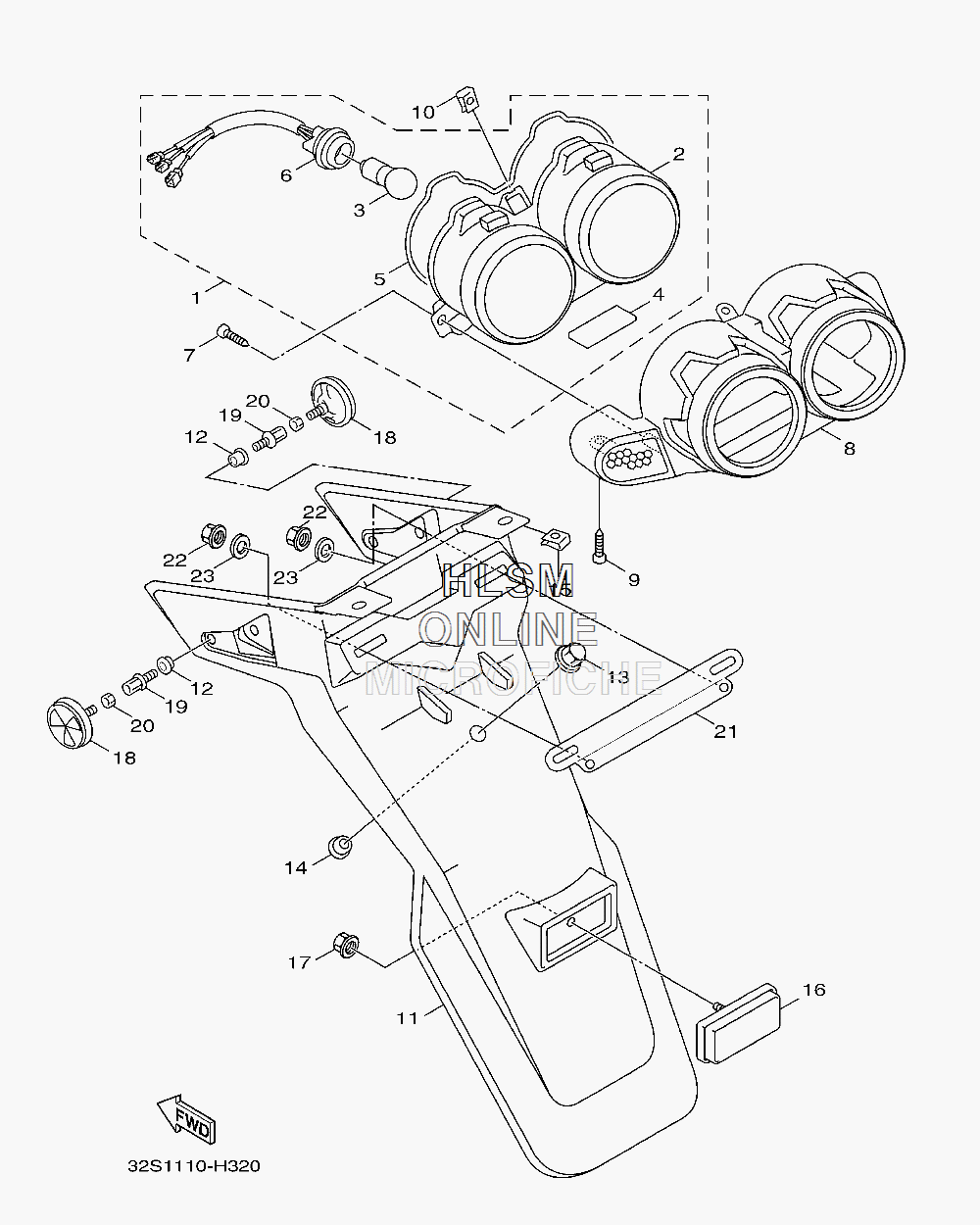

TAILLIGHT ASSY. для Yamaha ZUMA 125 - 2011 года выпуска
-
№АртикулНазвание
-
15S9-H4700-10-00 TAILLIGHT ASSYTAILLIGHT ASSY
-
25S9-H4721-00-00 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
34VP-H4714-00-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
45S9-H4743-00-00 ...LENS, LICENCE LIGHT...LENS, LICENCE LIGHT
-
55S9-H4723-00-00 ...GASKET, TAIL LENS...GASKET, TAIL LENS
-
65S9-H473A-00-00 ...CORD ASSY...CORD ASSY
-
797707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
85S9-H4716-01-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
997707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1090183-05807-00 NUT, SPRINGNUT, SPRING
-
115S9-F1685-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
1290387-068C3-00 COLLARCOLLAR
-
1390176-06065-00 NUT, CROWNNUT, CROWN
-
1490387-06868-00 COLLARCOLLAR
-
1590183-05807-00 NUT, SPRINGNUT, SPRING
-
163KW-H5130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
1795707-05300-00 NUT, FLANGENUT, FLANGE
-
1832S-H5131-00-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
1990109-06868-00 BOLTBOLT
-
2095707-06500-00 NUT, FLANGENUT, FLANGE
-
2132S-H4751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
2295607-06100-00 NUT, UNUT, U
-
2390201-06557-00 WASHER, PLATEWASHER, PLATE
