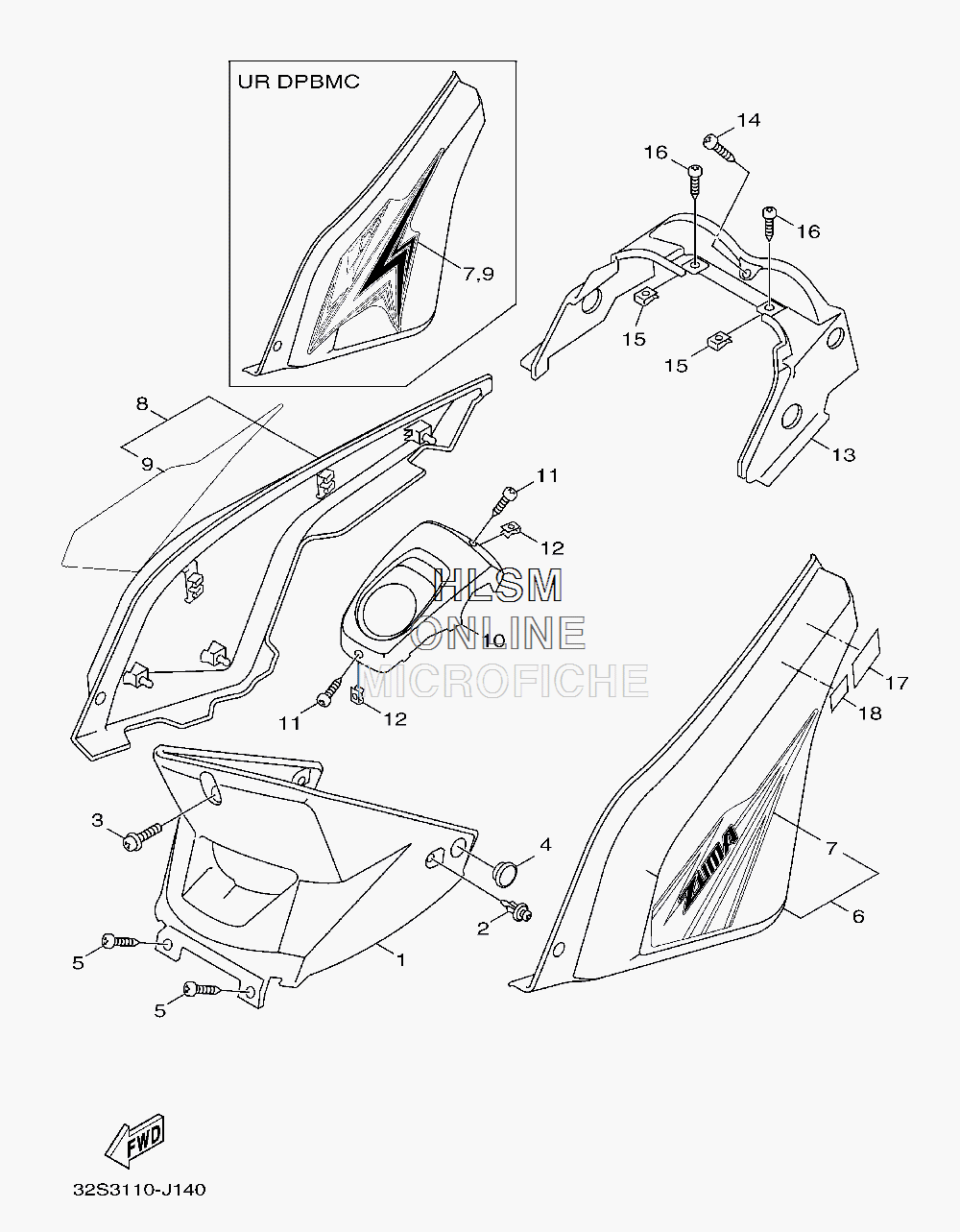

SIDE COVER для Yamaha ZUMA 125 - 2011 года выпуска
-
№АртикулНазвание
-
15S9-F1711-00-00 COVER, SIDE 1COVER, SIDE 1
-
290269-06806-00 RIVETRIVET
-
390159-06812-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
44DH-F6199-01-00 PLUG, BLINDPLUG, BLIND
-
597707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
65S9-XF172-40-P0 COVER, SIDE 2 (SMX)COVER, SIDE 2 (SMX)
-
732S-F1786-00-00 ...EMBLEM 6...EMBLEM 6
-
85S9-XF173-40-P0 COVER, SIDE 3 (SMX)COVER, SIDE 3 (SMX)
-
932S-F1787-00-00 ...EMBLEM 7...EMBLEM 7
-
105S9-F1741-00-00 COVER, SIDE 4COVER, SIDE 4
-
1197707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1290183-05807-00 NUT, SPRINGNUT, SPRING
-
135S9-F171E-00-00 COVER, SIDE 5COVER, SIDE 5
-
1497707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1590183-05807-00 NUT, SPRINGNUT, SPRING
-
1690169-05800-00 TAPPING SCREWTAPPING SCREW
-
175PJ-F118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
184JK-F8446-01-00 LABEL, CAUTIONLABEL, CAUTION
