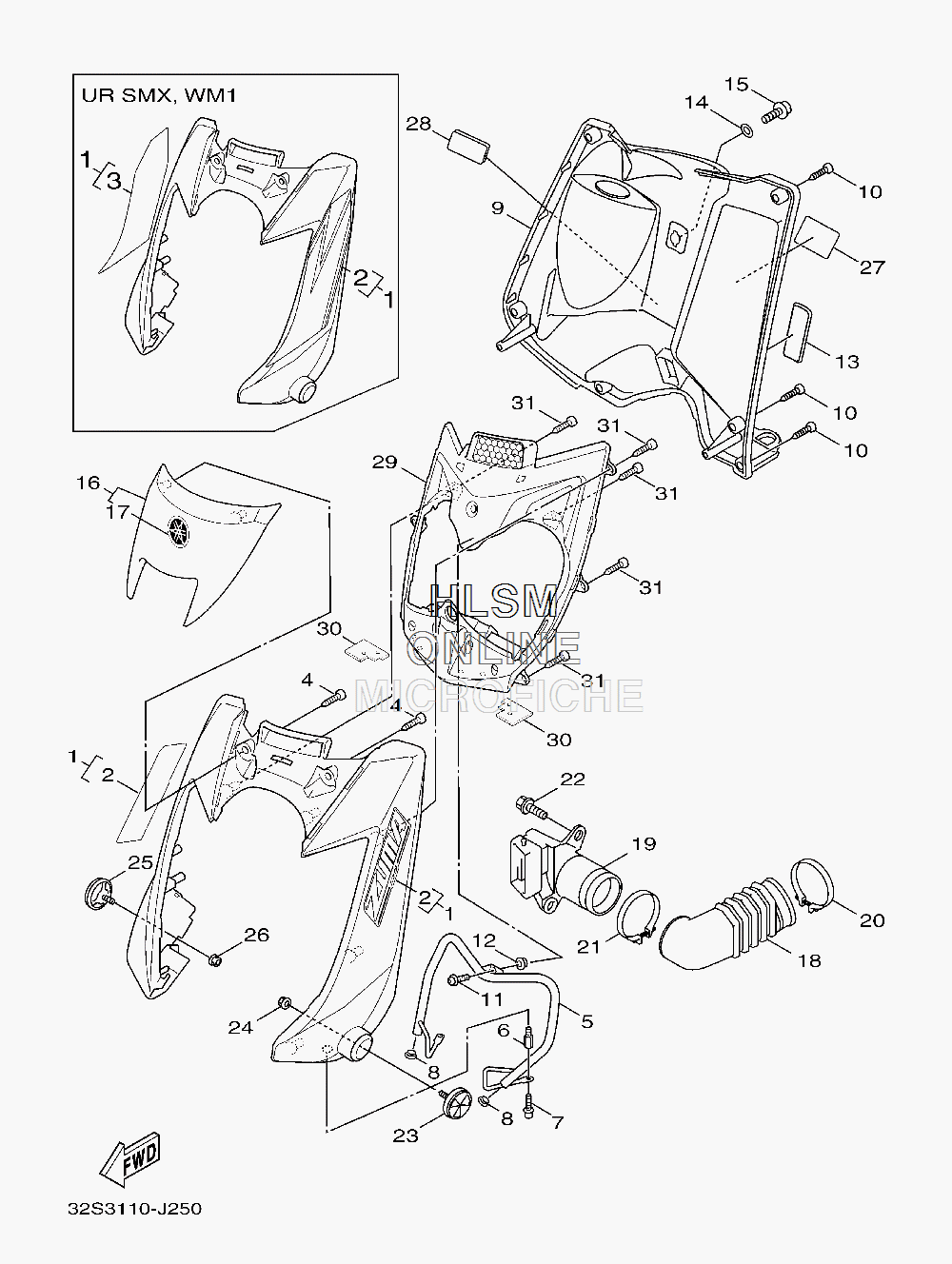

COWLING W/ LEG SHIELD для Yamaha ZUMA 125 - 2011 года выпуска
-
№АртикулНазвание
-
132S-XF831-01-P1 LEG SHIELD 1 (SMX)LEG SHIELD 1 (SMX)
-
232S-F8328-00-00 ...EMBLEM...EMBLEM
-
332S-F8338-00-00 ...EMBLEM...EMBLEM
-
497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
532S-F840K-00-7M GUARD COMP.GUARD COMP.
-
65S9-F1535-00-00 NUT 1NUT 1
-
790110-06851-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
890338-16801-00 PLUGPLUG
-
95S9-F8312-00-00 LEG SHIELD 2LEG SHIELD 2
-
1097707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1190159-06822-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
1290387-068C3-00 COLLARCOLLAR
-
135FM-F8349-00-00 CAPCAP
-
1490201-068A5-00 WASHER, PLATEWASHER, PLATE
-
1590159-06822-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
1632S-XF834-00-P0 MOLE 1MOLE 1
-
175NW-F152A-00-00 ...EMBLEM 3...EMBLEM 3
-
185ML-F838N-00-00 DUCT 1DUCT 1
-
195ML-F838R-00-00 DUCT 2DUCT 2
-
205CA-F1823-20-00 CLAMP, HOSECLAMP, HOSE
-
2190450-53061-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2290109-063F1-00 BOLTBOLT
-
2332S-H5110-00-00 REFLECTOR ASSYREFLECTOR ASSY
-
2495707-06500-00 NUT, FLANGENUT, FLANGE
-
2532S-H5120-00-00 FRONT REFLECTOR ASSY 2FRONT REFLECTOR ASSY 2
-
2695707-06500-00 NUT, FLANGENUT, FLANGE
-
2724P-F1668-00-00 LABEL, TIRELABEL, TIRE
-
2832S-F118B-10-00 PLATE, APPROVAL USPLATE, APPROVAL US
-
2932S-XH414-01-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
304VP-H4368-00-00 DAMPER 3DAMPER 3
-
3197707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
