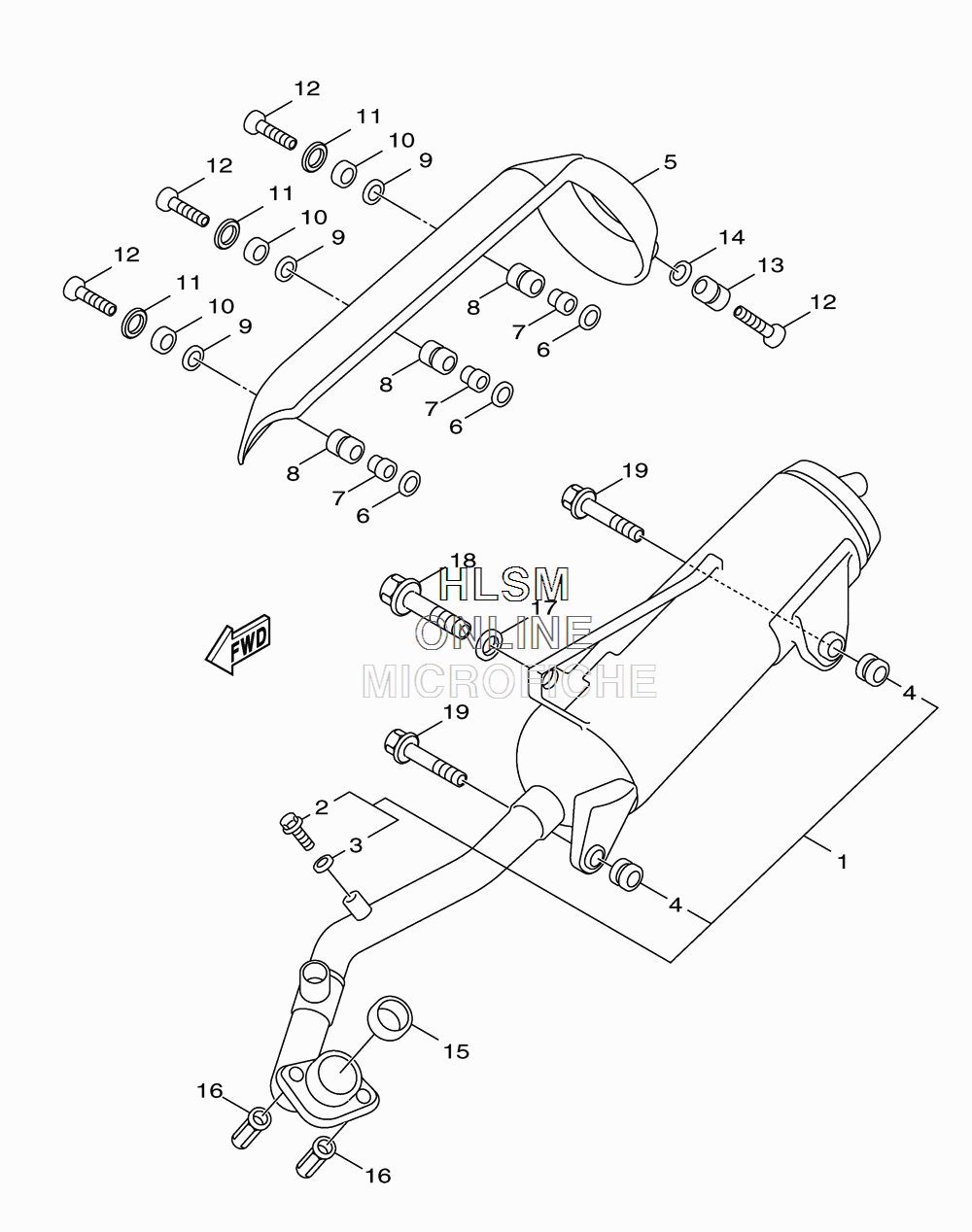

EXHAUST ASSY. для Yamaha ZUMA 125 - 2012 года выпуска
-
№АртикулНазвание
-
132S-E4610-00-98 EXHAUST PIPE ASSY 1 (LOW GLOSS BLACK)EXHAUST PIPE ASSY 1 (LOW GLOSS BLACK)
-
297080-06008-00 ...BOLT, HEX....BOLT, HEX.
-
392990-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
45ML-E4737-10-00 ...DAMPER, MUFFLER...DAMPER, MUFFLER
-
524P-E4708-00-00 PROTECTOR ASSYPROTECTOR ASSY
-
64CW-E4766-00-00 WASHER, PROTECTORWASHER, PROTECTOR
-
75JS-E4779-00-00 COLLARCOLLAR
-
85JS-E4445-00-00 GROMMETGROMMET
-
95JS-E4759-00-00 WASHERWASHER
-
105JS-E4617-00-00 WASHERWASHER
-
1190201-06055-00 WASHER, PLATEWASHER, PLATE
-
1290111-06801-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1390480-14810-00 GROMMETGROMMET
-
1490387-061N6-00 COLLARCOLLAR
-
154DH-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1690179-08804-00 NUTNUT
-
1790201-101J1-00 WASHER, PLATEWASHER, PLATE
-
1895817-10035-00 BOLT, FLANGEBOLT, FLANGE
-
1990105-08835-00 BOLT, FLANGEBOLT, FLANGE
