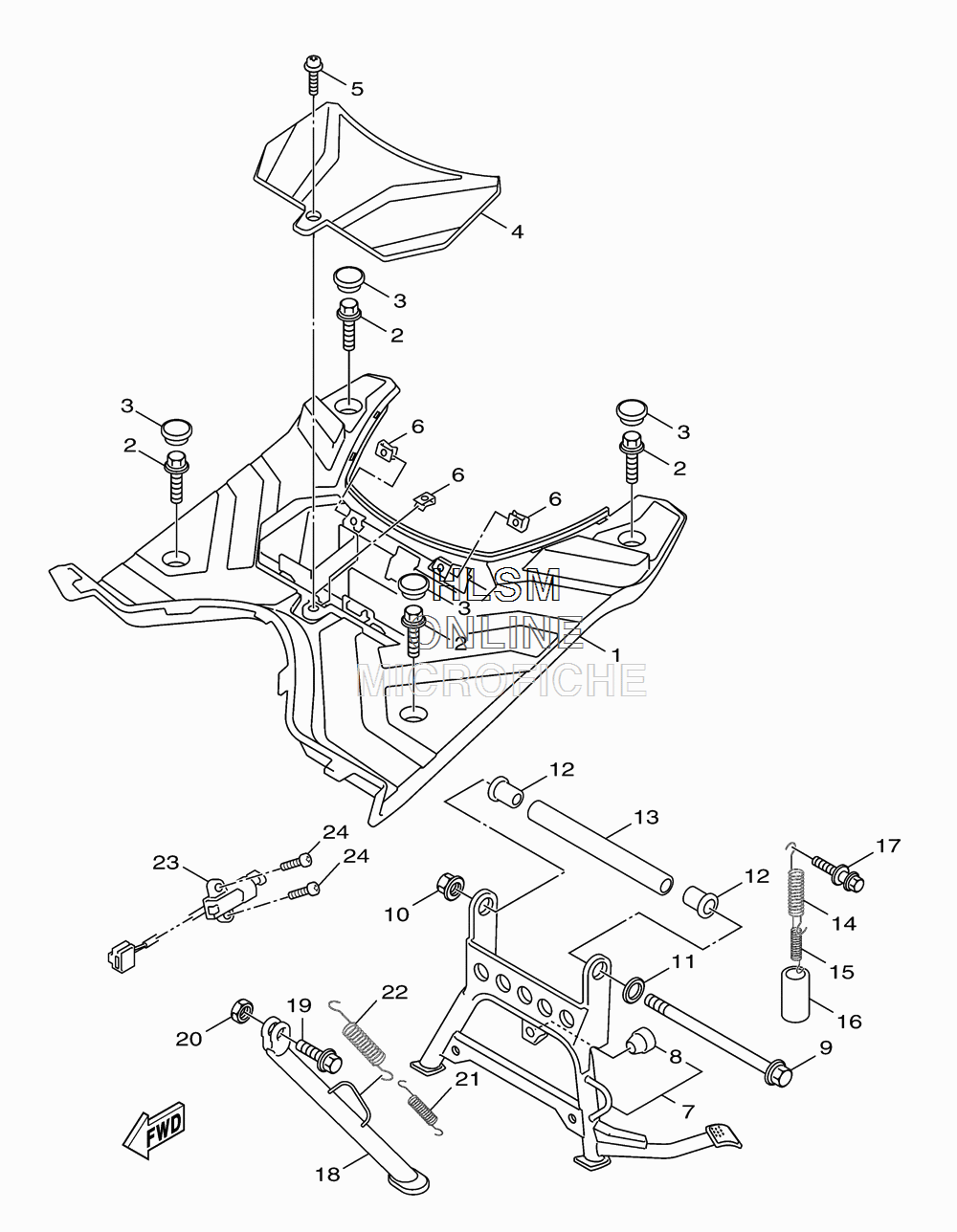

STAND W/ FOOTREST для Yamaha ZUMA 125 - 2012 года выпуска
-
№АртикулНазвание
-
15S9-F7481-00-00 BOARD, FOOTRESTBOARD, FOOTREST
-
290119-06874-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
35HK-F7475-00-00 CAP 1CAP 1
-
45S9-H2129-00-00 COVER, BATTERYCOVER, BATTERY
-
597707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
690183-05807-00 NUT, SPRINGNUT, SPRING
-
75S9-XF711-02-00 STAND, MAINSTAND, MAIN
-
85S9-F7114-01-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
95ML-F7117-00-00 BOLT, MAIN STANDBOLT, MAIN STAND
-
1095604-08200-00 NUT, U FLANGENUT, U FLANGE
-
1190201-08810-00 WASHER, PLATEWASHER, PLATE
-
125ML-F7121-00-00 BUSHBUSH
-
135ML-F7113-00-00 COLLAR, MAIN STANDCOLLAR, MAIN STAND
-
1490506-40800-00 SPRING, TENSIONSPRING, TENSION
-
1590506-20803-00 SPRING, TENSIONSPRING, TENSION
-
165S9-F7244-00-00 COVERCOVER
-
175SU-F7254-01-00 HOOKHOOK
-
185S9-F7311-00-00 STAND, SIDESTAND, SIDE
-
1990109-10005-00 BOLTBOLT
-
2090185-10110-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2190506-16801-00 SPRING, TENSIONSPRING, TENSION
-
2290506-26802-00 SPRING, TENSIONSPRING, TENSION
-
2332S-H2566-10-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
2490157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
