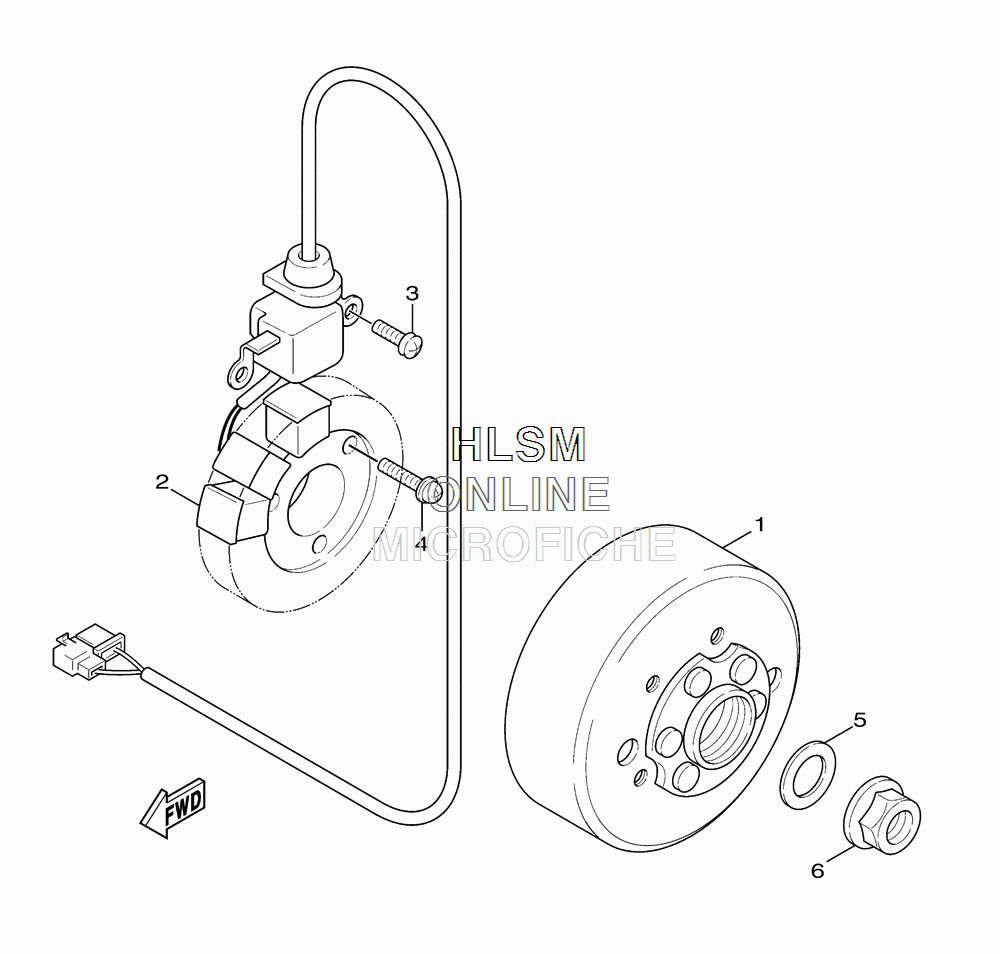

GENERATOR ASSY. для Yamaha ZUMA 125 - 2012 года выпуска
-
№АртикулНазвание
-
11P5-H1450-00-00 ROTOR ASSYROTOR ASSY
-
25S9-H1410-00-00 STATOR ASSYSTATOR ASSY
-
398507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
497607-06225-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
590201-12688-00 WASHER, PLATEWASHER, PLATE
-
690179-12248-00 NUTNUT
