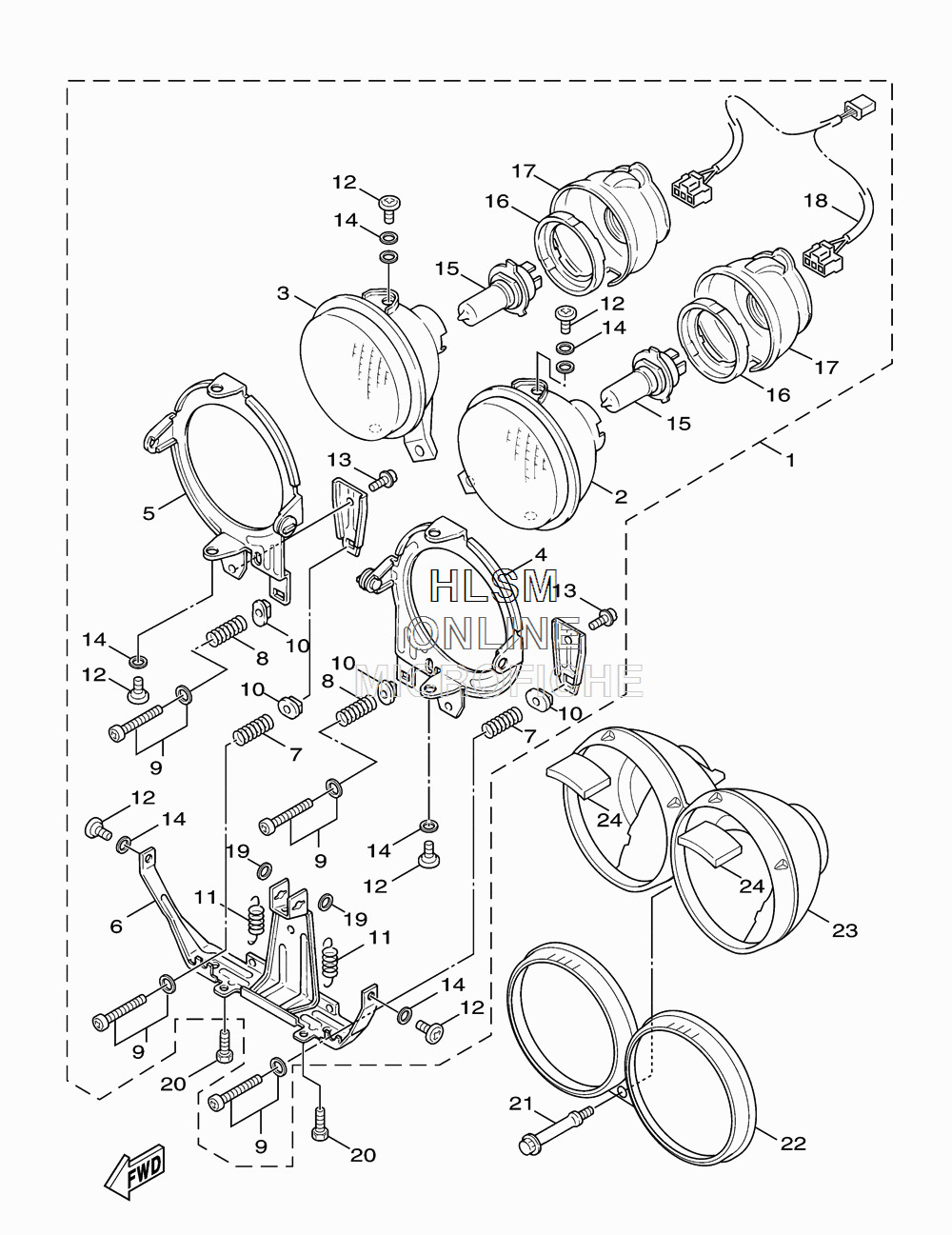

HEADLIGHT ASSY. для Yamaha ZUMA 125 - 2012 года выпуска
-
№АртикулНазвание
-
132S-H430A-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
232S-H4310-00-00 ...HEADLIGHT UNIT (LEFT)...HEADLIGHT UNIT (LEFT)
-
332S-H4310-10-00 ...HEADLIGHT UNIT (RIGHT)...HEADLIGHT UNIT (RIGHT)
-
432S-H4318-00-00 ...STAY, HEADLIGHT 1...STAY, HEADLIGHT 1
-
532S-H4319-00-00 ...STAY, HEADLIGHT 2...STAY, HEADLIGHT 2
-
632S-H431R-00-00 ...STAY, SETTING...STAY, SETTING
-
75PJ-H4332-00-00 ...SPRING, SCREW...SPRING, SCREW
-
85PJ-H4332-10-00 ...SPRING, SCREW...SPRING, SCREW
-
95PJ-H4331-00-00 ...SCREW, RIM ADJUSTING...SCREW, RIM ADJUSTING
-
105PJ-H4317-00-00 ...NUT...NUT
-
115PJ-H4335-00-00 ...SPRING...SPRING
-
125PJ-H4325-00-00 ...SCREW, RIM FITTING...SCREW, RIM FITTING
-
135PJ-H4526-00-00 ...SCREW...SCREW
-
145PJ-H4344-00-00 ...WASHER, PLAIN...WASHER, PLAIN
-
153YB-H4314-00-00 ...BULB, HEADLIGHT (12V-60/55W)...BULB, HEADLIGHT (12V-60/55W)
-
165PJ-H4397-10-00 ...COVER, SOCKET...COVER, SOCKET
-
175PJ-H4378-10-00 ...CAP...CAP
-
1832S-H4312-00-00 ...CORD ASSY...CORD ASSY
-
1932S-H4345-00-00 ...DAMPER, HEADLIGHT...DAMPER, HEADLIGHT
-
2090119-06874-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
215PJ-H3546-00-00 BOLTBOLT
-
2232S-H4169-00-00 GUARD, HEADLIGHTGUARD, HEADLIGHT
-
2332S-F838E-00-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
244VP-H4366-00-00 DAMPER, HEADLIGHT 1DAMPER, HEADLIGHT 1
