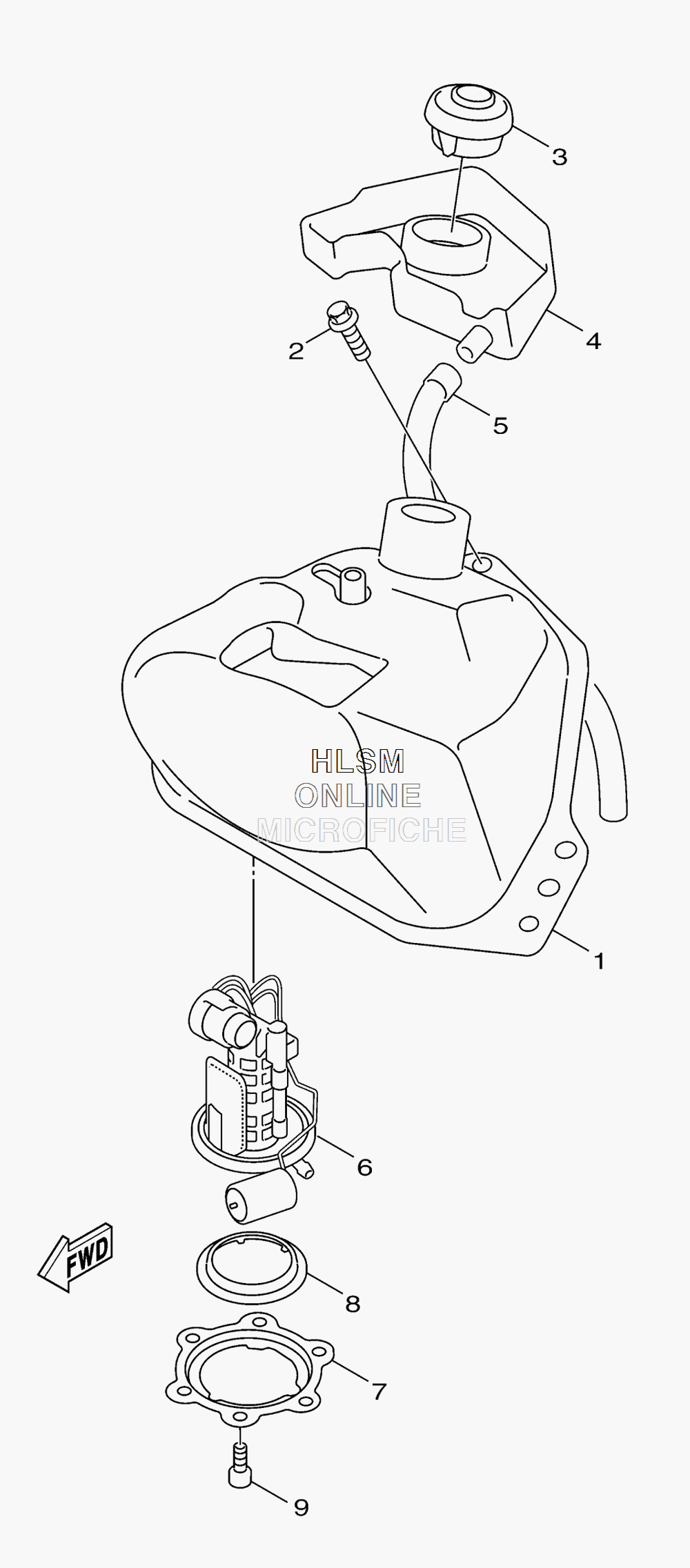

FUEL TANK ASSY. для Yamaha VINO 50 - 2013 года выпуска
-
№АртикулНазвание
-
113P-F4110-10-33 FUEL TANK COMP. (BLACK)FUEL TANK COMP. (BLACK)
-
295827-06016-00 BOLT, FLANGEBOLT, FLANGE
-
35ST-F4602-42-00 CAP ASSYCAP ASSY
-
45ST-F414A-00-00 COVER, FILLERCOVER, FILLER
-
591A20-12026-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
63P3-E3907-10-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
713P-F4491-01-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
81S4-24486-00-00 O-RINGO-RING
-
991317-05010-00 BOLTBOLT
