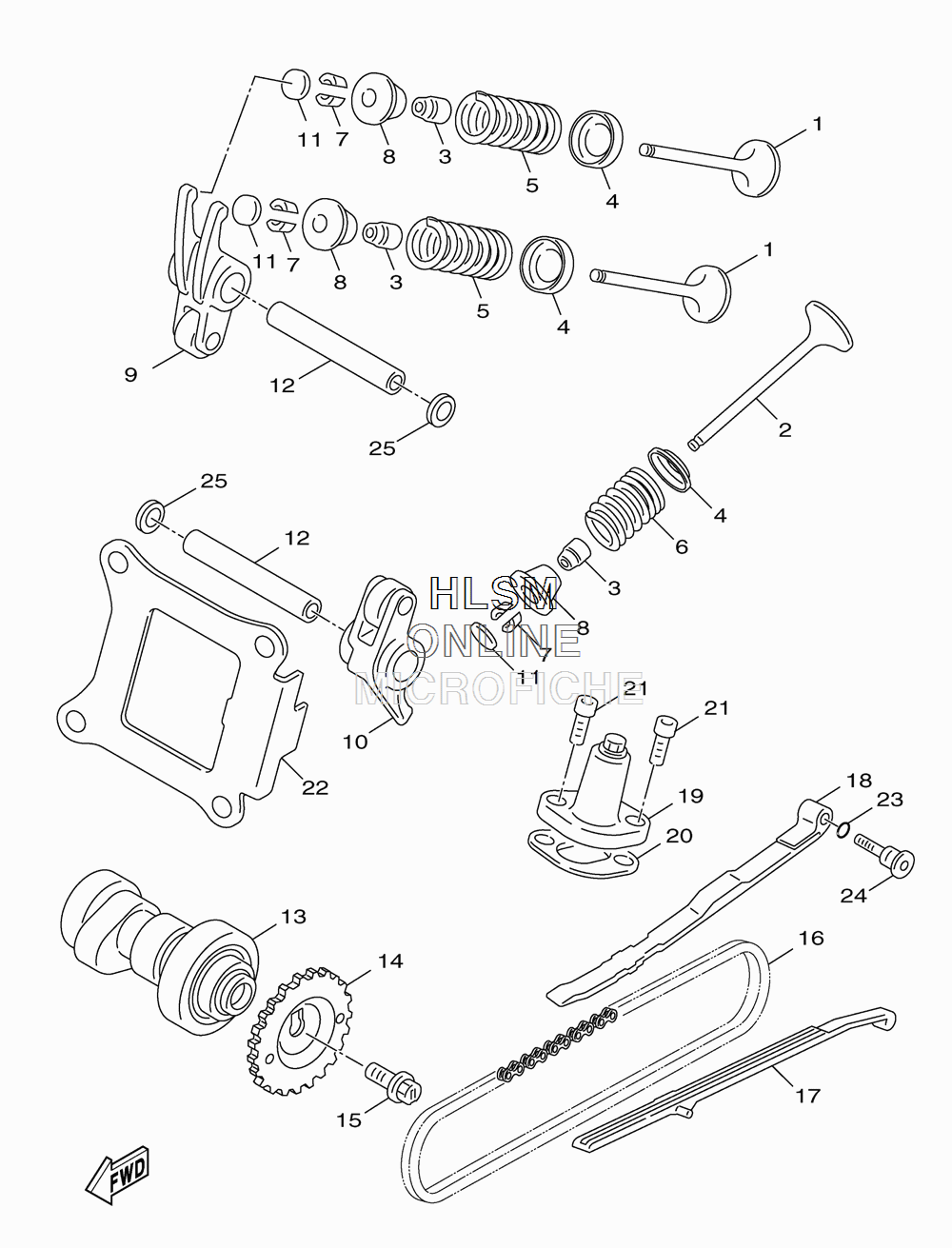

VALVE ASSY. для Yamaha VINO 50 - 2013 года выпуска
-
№АртикулНазвание
-
15ST-E2111-00-00 VALVE, INTAKEVALVE, INTAKE
-
25ST-E2121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
35ST-E2119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
45ST-E2116-00-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
55ST-12113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
65ST-12114-00-00 SPRING, VALVE OUTERSPRING, VALVE OUTER
-
71HX-12118-00-00 COTTER, VALVECOTTER, VALVE
-
85ST-E2117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
93B3-E2151-03-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
103B3-E2161-03-00 ARM, VALVE ROCKER 2ARM, VALVE ROCKER 2
-
115ST-E2168-K1-00 PAD, ADJUSTING (1.60)PAD, ADJUSTING (1.60)
-
115ST-E2168-H1-00 PAD, ADJUSTING (1.55)PAD, ADJUSTING (1.55)
-
115ST-E2168-R1-00 PAD, ADJUSTING (1.70)PAD, ADJUSTING (1.70)
-
115ST-E2168-U1-00 PAD, ADJUSTING (1.75)PAD, ADJUSTING (1.75)
-
115ST-E2168-W1-00 PAD, ADJUSTING (1.80)PAD, ADJUSTING (1.80)
-
115ST-E2168-Y1-00 PAD, ADJUSTING (1.85)PAD, ADJUSTING (1.85)
-
115ST-E2169-11-00 PAD, ADJUSTING (1.90)PAD, ADJUSTING (1.90)
-
115ST-E2169-31-00 PAD, ADJUSTING (1.95)PAD, ADJUSTING (1.95)
-
115ST-E2169-50-00 PAD, ADJUSTING (2.00)PAD, ADJUSTING (2.00)
-
115ST-E2169-70-00 PAD, ADJUSTING (2.05)PAD, ADJUSTING (2.05)
-
115ST-E2169-90-00 PAD, ADJUSTING (2.10)PAD, ADJUSTING (2.10)
-
115ST-E2169-E0-00 PAD, ADJUSTING (2.15)PAD, ADJUSTING (2.15)
-
115ST-E2169-G0-00 PAD, ADJUSTING (2.20)PAD, ADJUSTING (2.20)
-
115ST-E2169-J0-00 PAD, ADJUSTING (2.25)PAD, ADJUSTING (2.25)
-
115ST-E2169-L0-00 PAD, ADJUSTING (2.30)PAD, ADJUSTING (2.30)
-
115ST-E2169-N0-00 PAD, ADJUSTING (2.35)PAD, ADJUSTING (2.35)
-
115ST-E2169-T0-00 PAD, ADJUSTING (2.40)PAD, ADJUSTING (2.40)
-
115ST-E2168-M1-00 PAD, ADJUSTING (1.65)PAD, ADJUSTING (1.65)
-
115ST-E2168-00-00 PAD, ADJUSTING (1.20)PAD, ADJUSTING (1.20)
-
115ST-E2168-20-00 PAD, ADJUSTING (1.25)PAD, ADJUSTING (1.25)
-
115ST-E2168-40-00 PAD, ADJUSTING (1.30)PAD, ADJUSTING (1.30)
-
115ST-E2168-60-00 PAD, ADJUSTING (1.35)PAD, ADJUSTING (1.35)
-
115ST-E2168-80-00 PAD, ADJUSTING (1.40)PAD, ADJUSTING (1.40)
-
115ST-E2168-A0-00 PAD, ADJUSTING (1.45)PAD, ADJUSTING (1.45)
-
115ST-E2168-F0-00 PAD, ADJUSTING (1.50)PAD, ADJUSTING (1.50)
-
125ST-E2156-00-00 SHAFT, ROCKER 2SHAFT, ROCKER 2
-
135ST-E2170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
145ST-E2176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
1590105-08876-00 BOLT, FLANGEBOLT, FLANGE
-
165ST-E2190-00-00 CHAIN ASSYCHAIN ASSY
-
175ST-E2231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
185ST-E2241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
195ML-E2210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
204DH-E2213-01-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
2190105-06806-00 BOLT, FLANGEBOLT, FLANGE
-
2210B-E111F-00-00 PLATEPLATE
-
2393210-15862-00 O-RINGO-RING
-
243B3-E2157-00-00 BOLTBOLT
-
2590201-10836-00 WASHER, PLATEWASHER, PLATE
