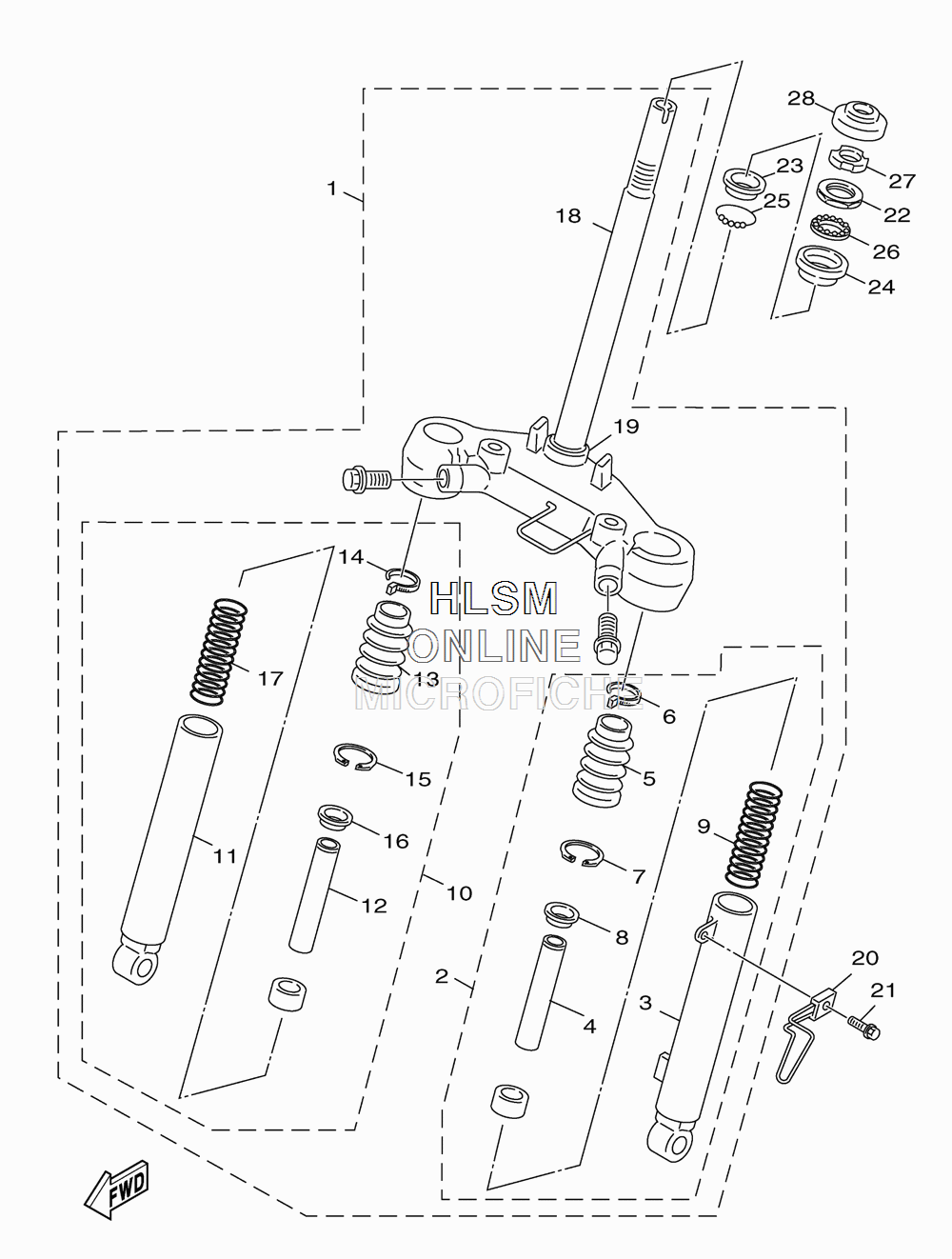

SUSPENSION - FRONT FORK для Yamaha VINO 50 - 2013 года выпуска
-
№АртикулНазвание
-
13D1-F3100-10-00 FRONT FORK ASSYFRONT FORK ASSY
-
213P-F3102-10-00 ...FRONT FORK ASSY (LEFT HAND)...FRONT FORK ASSY (LEFT HAND)
-
313P-F3126-10-00 ......TUBE, OUTER (LEFT)......TUBE, OUTER (LEFT)
-
43B3-F3110-00-00 ......INNER TUBE COMP 1......INNER TUBE COMP 1
-
513P-F3191-00-00 ......BOOT......BOOT
-
613P-F3192-00-00 ......BAND......BAND
-
73NW-F3156-00-00 ......RING, SNAP......RING, SNAP
-
85SU-F3145-00-00 ......OIL SEAL......OIL SEAL
-
913P-F3141-00-00 ......SPRING, FRONT FORK......SPRING, FRONT FORK
-
1013P-F3103-10-00 ...FRONT FORK ASSY (RIGHT HAND)...FRONT FORK ASSY (RIGHT HAND)
-
1113P-F3136-10-00 ......TUBE, OUTER (RIGHT)......TUBE, OUTER (RIGHT)
-
123B3-F3110-00-00 ......INNER TUBE COMP 1......INNER TUBE COMP 1
-
1313P-F3191-00-00 ......BOOT......BOOT
-
1413P-F3192-00-00 ......BAND......BAND
-
153NW-F3156-00-00 ......RING, SNAP......RING, SNAP
-
165SU-F3145-00-00 ......OIL SEAL......OIL SEAL
-
1713P-F3141-00-00 ......SPRING, FRONT FORK......SPRING, FRONT FORK
-
183D1-F3340-00-00 ...UNDER BRACKET COMP....UNDER BRACKET COMP.
-
1922F-23414-01-00 ...RACE, BALL 4...RACE, BALL 4
-
2013P-F3317-00-00 HOLDER, CABLEHOLDER, CABLE
-
219580L-06010-00 BOLT, FLANGEBOLT, FLANGE
-
223KJ-23411-01-00 RACE, BALL 1RACE, BALL 1
-
2322F-23412-01-00 RACE, BALL 2RACE, BALL 2
-
242E9-23412-00-00 RACE, BALL 2RACE, BALL 2
-
2522F-2341E-00-00 RETAINER, BALL BEARINGRETAINER, BALL BEARING
-
2693505-32042-00 BALL 5/32BALL 5/32
-
272E9-23454-00-00 NUT, FITTING 2NUT, FITTING 2
-
285SU-F3415-00-00 COVER, BALL RACE 1COVER, BALL RACE 1
