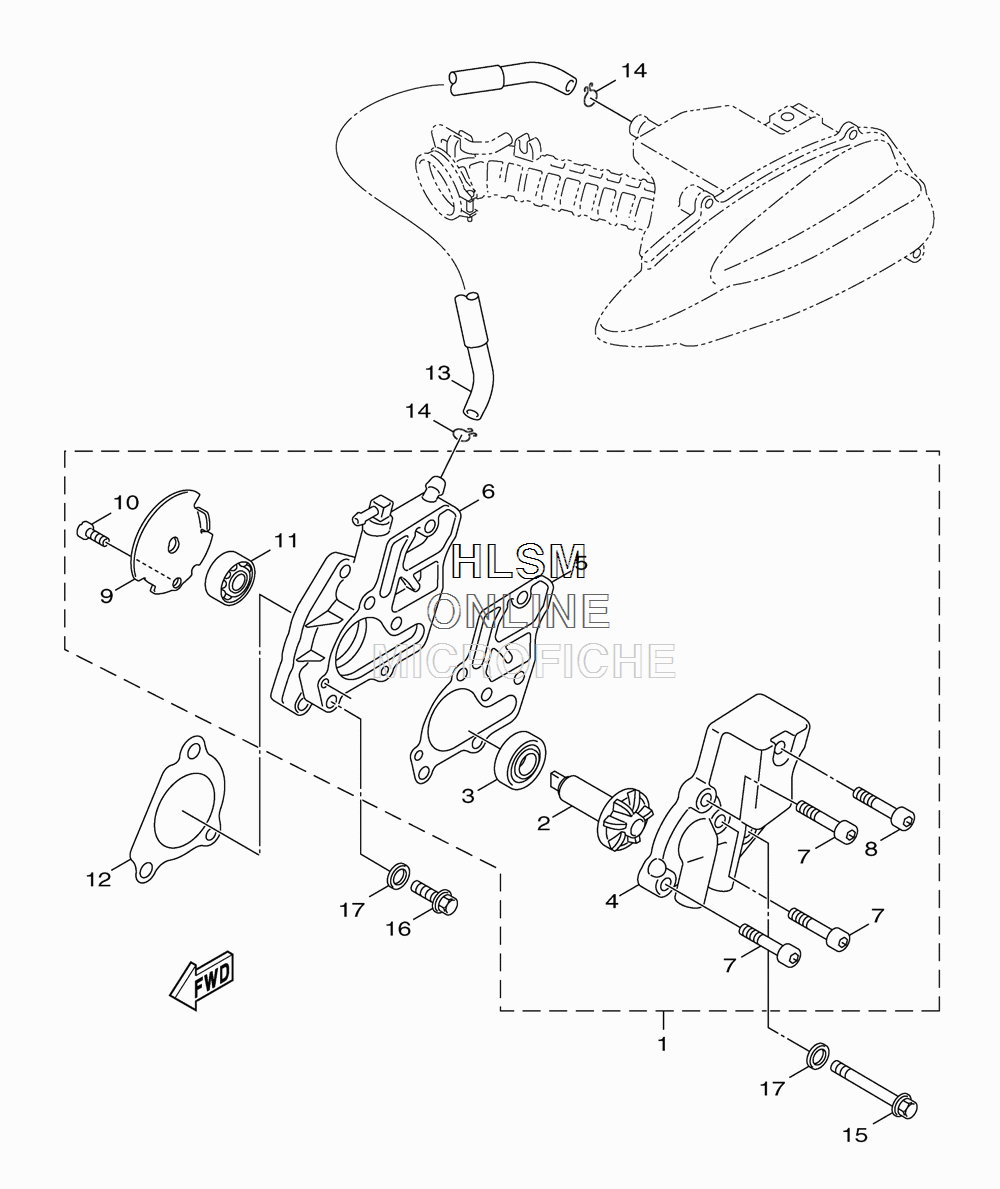

WATER PUMP ASSY. для Yamaha VINO 50 - 2013 года выпуска
-
№АртикулНазвание
-
15ST-E2420-12-00 WATER PUMP ASSYWATER PUMP ASSY
-
25ST-E2450-01-00 IMPELLER SHAFT ASSYIMPELLER SHAFT ASSY
-
393103-10168-00 OIL SEAL, SW-TYPEOIL SEAL, SW-TYPE
-
45ST-E2422-10-00 COVER, HOUSINGCOVER, HOUSING
-
55ST-E2428-01-00 GASKET, HOUSING COVER 2GASKET, HOUSING COVER 2
-
65ST-E1185-12-00 COVER, CYLINDER HEAD SIDE 3COVER, CYLINDER HEAD SIDE 3
-
791317-06020-00 BOLTBOLT
-
891317-06035-00 BOLTBOLT
-
910B-E1951-00-00 PLATEPLATE
-
1095027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1193306-000Y1-00 BEARINGBEARING
-
125ST-E2435-10-00 GASKETGASKET
-
1313P-E1166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
1490467-11800-00 CLIPCLIP
-
1595027-06035-00 BOLT, FLANGEBOLT, FLANGE
-
1690105-06897-00 BOLT, FLANGEBOLT, FLANGE
-
1790430-06166-00 GASKETGASKET
