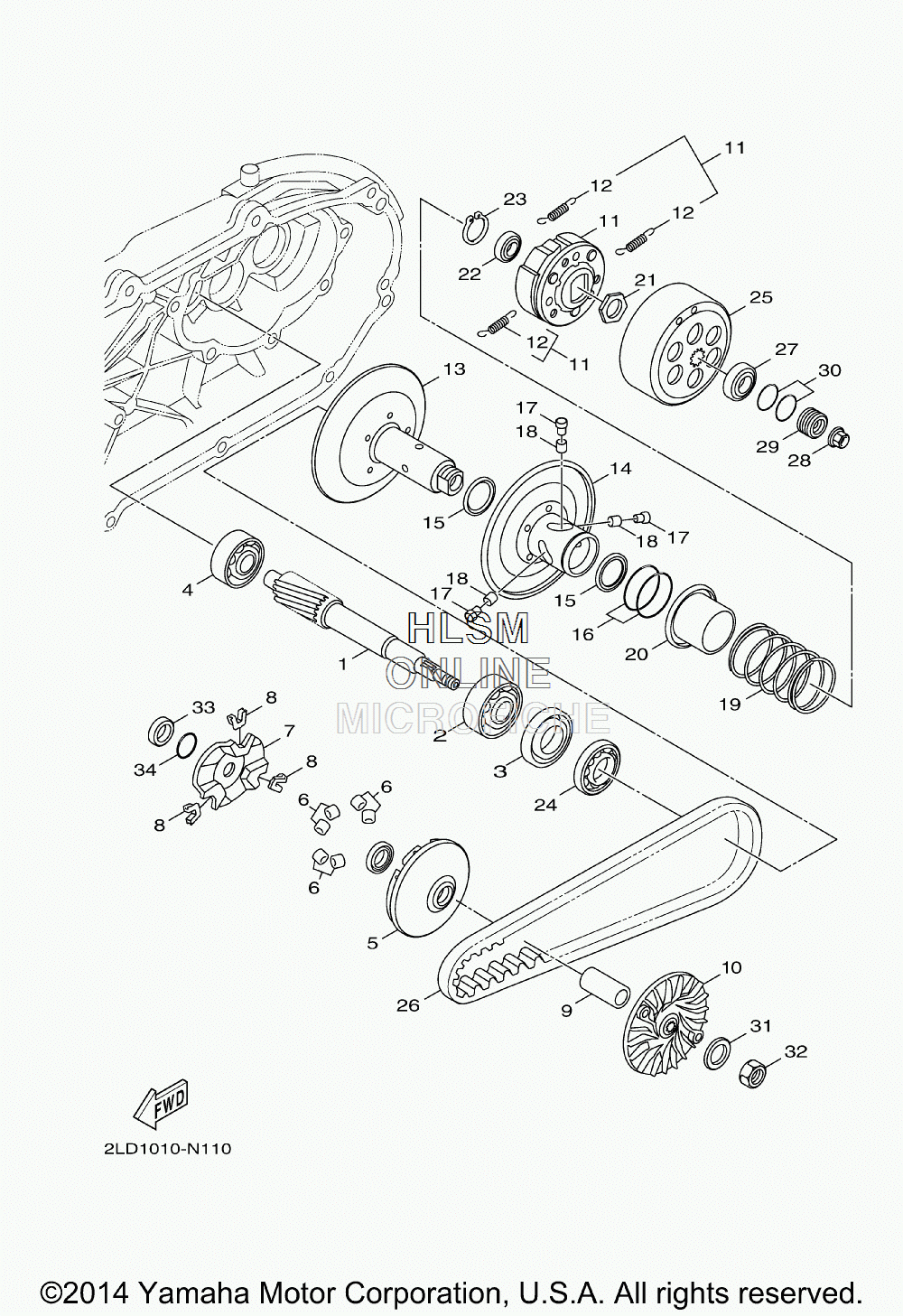

CLUTCH ASSY. для Yamaha SMAX - 2015 года выпуска
-
№АртикулНазвание
-
11DK-E6111-00-00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
293306-272X6-00 BEARINGBEARING
-
393102-22820-00 OIL SEALOIL SEAL
-
493306-302Y1-00 BEARINGBEARING
-
51DK-E7620-00-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
61DK-E7632-00-00 WEIGHTWEIGHT
-
71DK-E7623-00-00 CAMCAM
-
81DK-E7653-00-00 SLIDERSLIDER
-
91DK-E7674-10-00 COLLAR, GUIDECOLLAR, GUIDE
-
101DK-E7611-00-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
111DK-E6620-00-00 CLUTCH CARRIER ASSYCLUTCH CARRIER ASSY
-
121DK-E6626-00-00 ...SPRING, CLUTCH WEIGHT 1...SPRING, CLUTCH WEIGHT 1
-
131DK-E7660-00-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
141DK-E7670-00-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
151DK-E7465-00-00 SEALSEAL
-
161DK-E7465-10-00 SEALSEAL
-
171DK-E7664-00-00 PIN, GUIDEPIN, GUIDE
-
181DK-E7674-00-00 COLLAR, GUIDECOLLAR, GUIDE
-
191DK-E7683-00-00 SPRING, SECONDARYSPRING, SECONDARY
-
201DK-E7684-00-00 SEAT, SECONDARY SPRINGSEAT, SECONDARY SPRING
-
211DK-E7668-00-00 NUTNUT
-
221DK-E7678-00-00 BEARINGBEARING
-
231DK-E5744-00-00 CIRCLIPCIRCLIP
-
241DK-E7678-10-00 BEARINGBEARING
-
251DK-E6611-00-00 CLUTCH HOUSING COMP.CLUTCH HOUSING COMP.
-
261DK-E7641-00-00 V-BELTV-BELT
-
2793306-082Y4-00 BEARINGBEARING
-
2890179-10803-00 NUTNUT
-
2952S-E7649-00-00 SPACERSPACER
-
3093210-28802-00 O-RINGO-RING
-
3190201-120A5-00 WASHER, PLATEWASHER, PLATE
-
3295307-12700-00 NUTNUT
-
3352S-E6375-00-00 COLLARCOLLAR
-
3493210-16804-00 O-RINGO-RING
