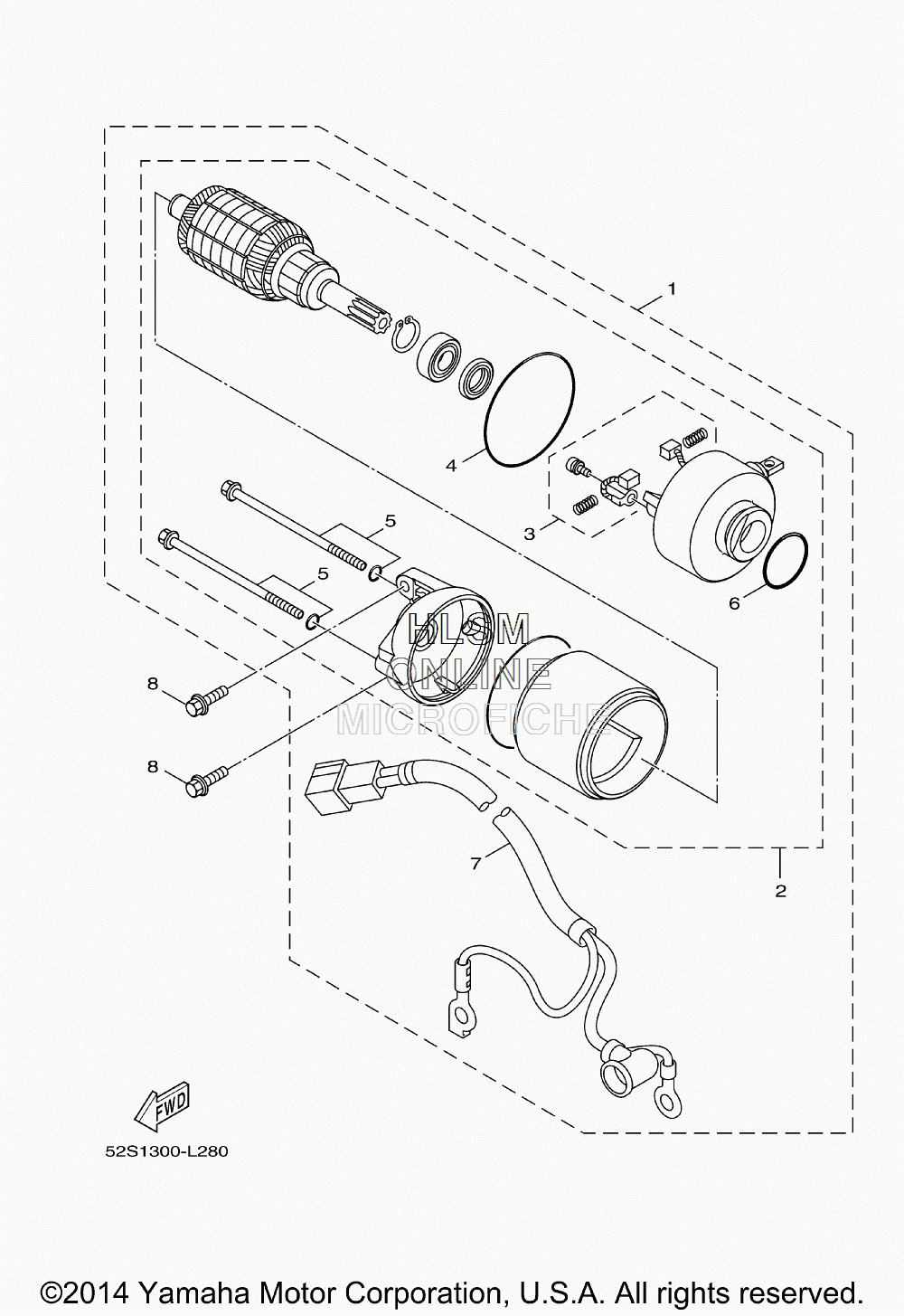

STARTING MOTOR ASSY. для Yamaha SMAX - 2015 года выпуска
-
№АртикулНазвание
-
152S-H1800-00-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
252S-H1890-00-00 ...MOTOR ASSY...MOTOR ASSY
-
33KW-H1801-00-00 ......BRUSH SET......BRUSH SET
-
493210-55669-00 ......O-RING......O-RING
-
55S9-H1828-00-00 ......SCREW 2......SCREW 2
-
64FP-H1821-00-00 ......COVER, SWITCH......COVER, SWITCH
-
752S-H183G-00-00 ...CORD COMP....CORD COMP.
-
897502-06525-00 BOLT, WITH WASHERBOLT, WITH WASHER
