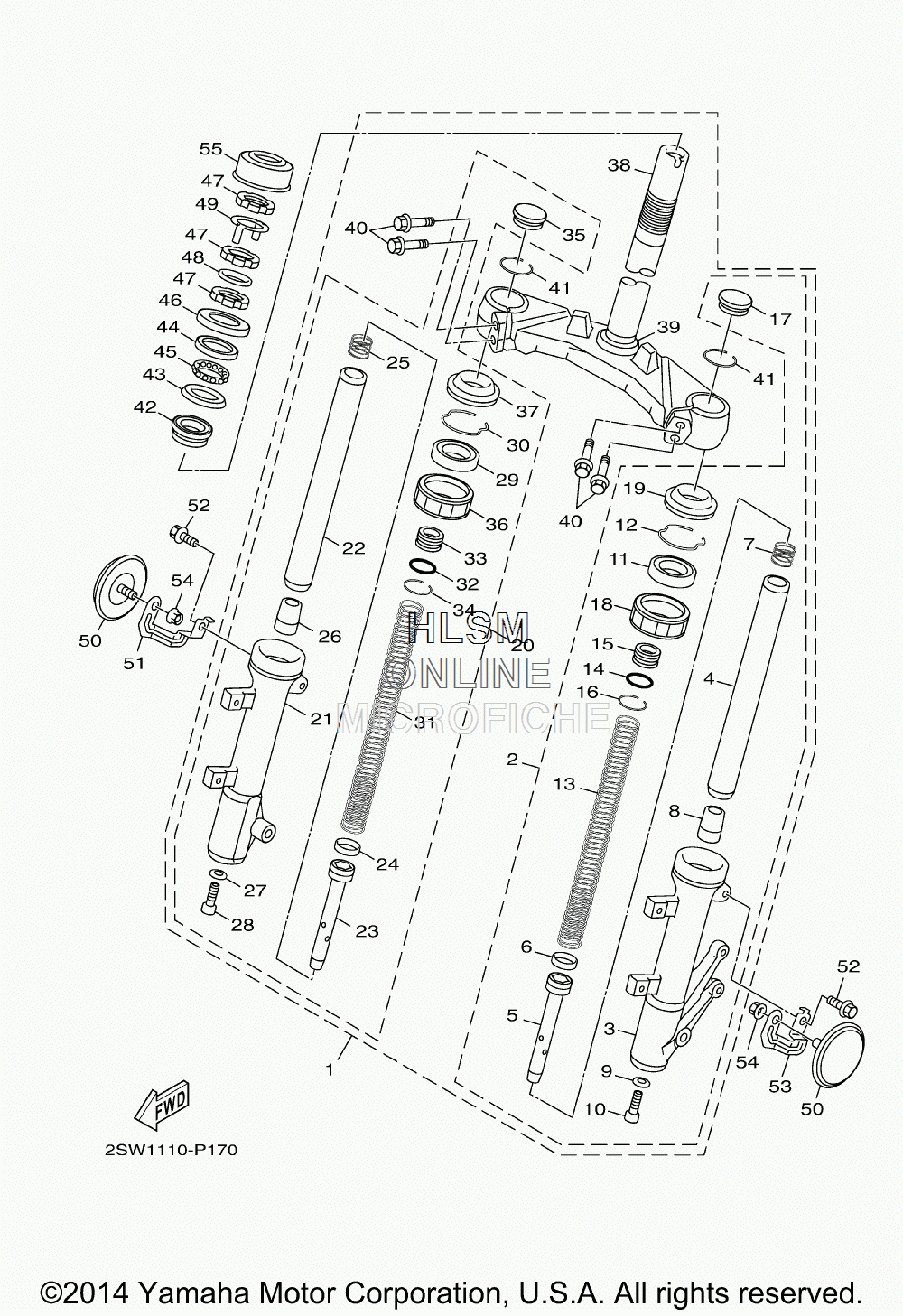

SUSPENSION - FRONT FORK для Yamaha SMAX - 2015 года выпуска
-
№АртикулНазвание
-
12PE-F3100-00-00 FRONT FORK ASSYFRONT FORK ASSY
-
22PE-F3102-00-00 ...FRONT FORK ASSY (L.H)...FRONT FORK ASSY (L.H)
-
31DK-F3126-00-00 ......TUBE, OUTER (L.H)......TUBE, OUTER (L.H)
-
42PE-F3110-00-00 ............INNER TUBE COMP. 1............INNER TUBE COMP. 1
-
52PE-F3142-00-00 ......SEAT, SPRING UPPER......SEAT, SPRING UPPER
-
64P9-F318X-00-00 ......PISTON RING......PISTON RING
-
74P9-F3151-00-00 ......SPRING, REBOUND......SPRING, REBOUND
-
84P9-F3171-00-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
94P9-F3158-00-00 ......GASKET......GASKET
-
104P9-F3181-00-00 ......BOLT, HEXAGON SOCKET HEAD......BOLT, HEXAGON SOCKET HEAD
-
114C6-F3145-00-00 ......OIL SEAL......OIL SEAL
-
124P9-F3157-00-00 ......RING, PISTON......RING, PISTON
-
131DK-F3141-00-00 ......SPRING, FRONT FORK......SPRING, FRONT FORK
-
144C6-F3147-00-00 ......O-RING......O-RING
-
154P9-F3113-00-00 ......COLLAR......COLLAR
-
164P9-F3155-00-00 ......RING, FELT......RING, FELT
-
174P9-F3154-00-00 ......CAP......CAP
-
184P9-F331G-00-00 ......COVER......COVER
-
194P9-F3191-00-00 ......SEAL, DUST......SEAL, DUST
-
202PE-F3103-00-00 ...FRONT FORK ASSY (R.H)...FRONT FORK ASSY (R.H)
-
211DK-F3136-00-00 ......TUBE, OUTER......TUBE, OUTER
-
222PE-F3110-00-00 ............INNER TUBE COMP. 1............INNER TUBE COMP. 1
-
232PE-F3142-00-00 ......SEAT, SPRING UPPER......SEAT, SPRING UPPER
-
244P9-F318X-00-00 ......PISTON RING......PISTON RING
-
254P9-F3151-00-00 ......SPRING, REBOUND......SPRING, REBOUND
-
264P9-F3171-00-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
274P9-F3158-00-00 ......GASKET......GASKET
-
284P9-F3181-00-00 ......BOLT, HEXAGON SOCKET HEAD......BOLT, HEXAGON SOCKET HEAD
-
294C6-F3145-00-00 ......OIL SEAL......OIL SEAL
-
304P9-F3157-00-00 ......RING, PISTON......RING, PISTON
-
311DK-F3141-00-00 ......SPRING, FRONT FORK......SPRING, FRONT FORK
-
324C6-F3147-00-00 ......O-RING......O-RING
-
334P9-F3113-00-00 ......COLLAR......COLLAR
-
344P9-F3155-00-00 ......RING, FELT......RING, FELT
-
354P9-F3154-00-00 ......CAP......CAP
-
364P9-F331G-00-00 ......COVER......COVER
-
374P9-F3191-00-00 ......SEAL, DUST......SEAL, DUST
-
382PE-F3340-00-00 ...UNDER BRACKET COMP....UNDER BRACKET COMP.
-
393KW-F3462-00-00 ...SEAL, DUST...SEAL, DUST
-
401CE-F3346-00-00 ...BOLT 1...BOLT 1
-
414P9-F3153-00-00 ...RING, SNAP...RING, SNAP
-
4293399-99942-00 BEARINGBEARING
-
434C6-F3414-00-00 RACE, BALL 4RACE, BALL 4
-
444C6-F3413-00-00 RACE, BALL 3RACE, BALL 3
-
454C6-F341D-00-00 RETAINER, BALL BEARING 2RETAINER, BALL BEARING 2
-
464C6-F3416-00-00 COVER, BALL RACE 2COVER, BALL RACE 2
-
4790179-25811-00 NUTNUT
-
4890202-26142-00 WASHER, PLATEWASHER, PLATE
-
494VP-F3418-00-00 WASHER, SPECIALWASHER, SPECIAL
-
501CH-H5131-00-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
512SW-H5122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
5295807-06014-00 BOLT, FLANGEBOLT, FLANGE
-
532SW-H5112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
5495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5517C-F3415-00-00 COVER, BALL RACE 1COVER, BALL RACE 1
