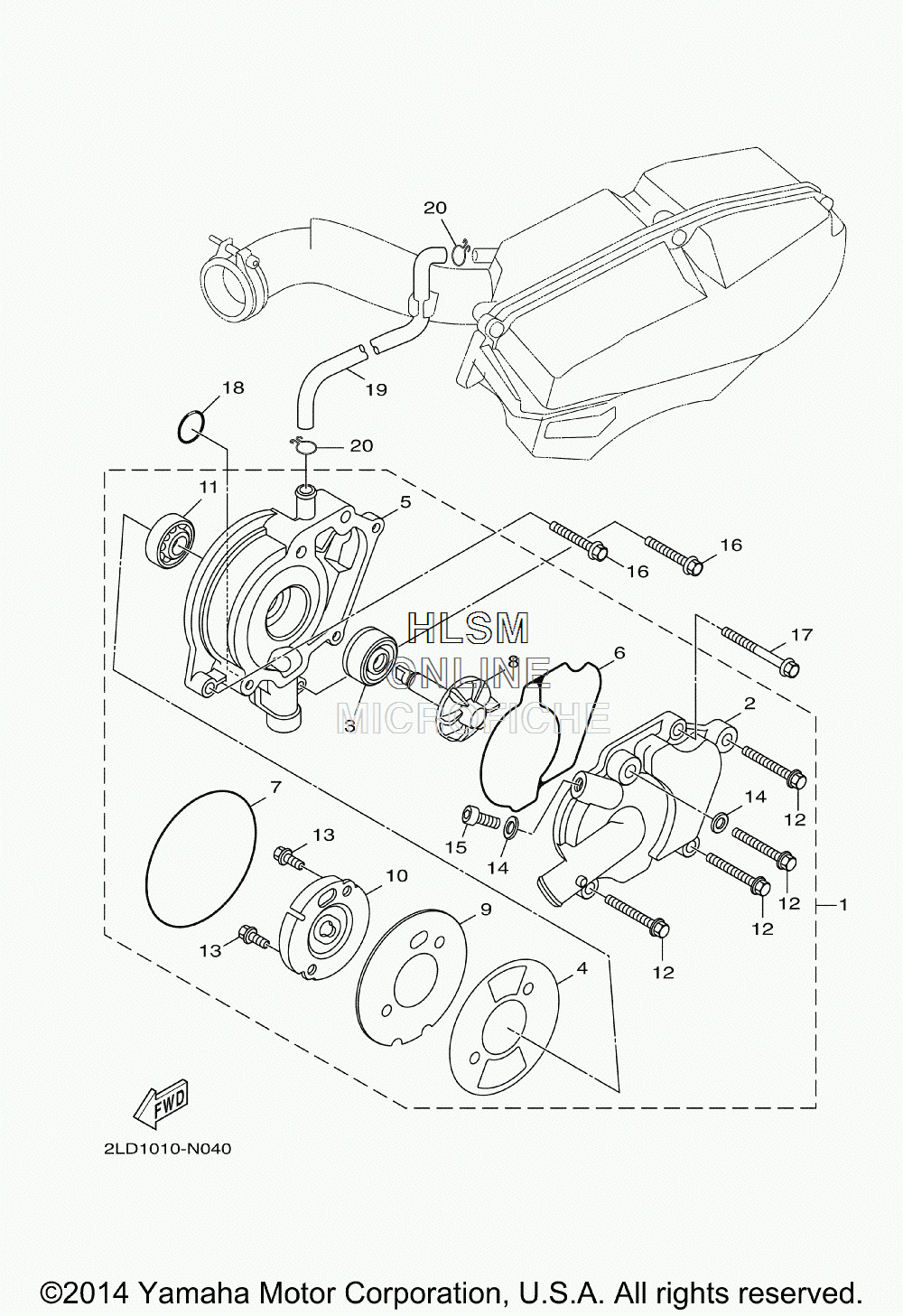

WATER PUMP ASSY. для Yamaha SMAX - 2015 года выпуска
-
№АртикулНазвание
-
11DK-E2420-00-00 WATER PUMP ASSYWATER PUMP ASSY
-
21DK-E2422-00-00 ...COVER, HOUSING...COVER, HOUSING
-
393103-10011-00 ...OIL SEAL...OIL SEAL
-
452S-E2428-00-00 ...GASKET, HOUSING COVER 2...GASKET, HOUSING COVER 2
-
552S-E1185-00-00 ...COVER, CYLINDER HEAD SIDE 3...COVER, CYLINDER HEAD SIDE 3
-
652S-E2449-00-00 ...GASKET, WATER PUMP...GASKET, WATER PUMP
-
752S-E2439-00-00 ...O-RING...O-RING
-
852S-E2450-00-00 ...IMPELLER SHAFT ASSY...IMPELLER SHAFT ASSY
-
952S-E1951-00-00 ...PLATE...PLATE
-
1052S-E1952-00-00 ...PLATE...PLATE
-
1193306-000Y1-00 ...BEARING...BEARING
-
1295022-06025-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1395022-06012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1490430-06014-00 ...GASKET...GASKET
-
1591312-06012-00 ...BOLT...BOLT
-
1695022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1795022-06050-00 BOLT, FLANGEBOLT, FLANGE
-
1893210-19809-00 O-RINGO-RING
-
192SW-E1166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
2090467-13042-00 CLIPCLIP
