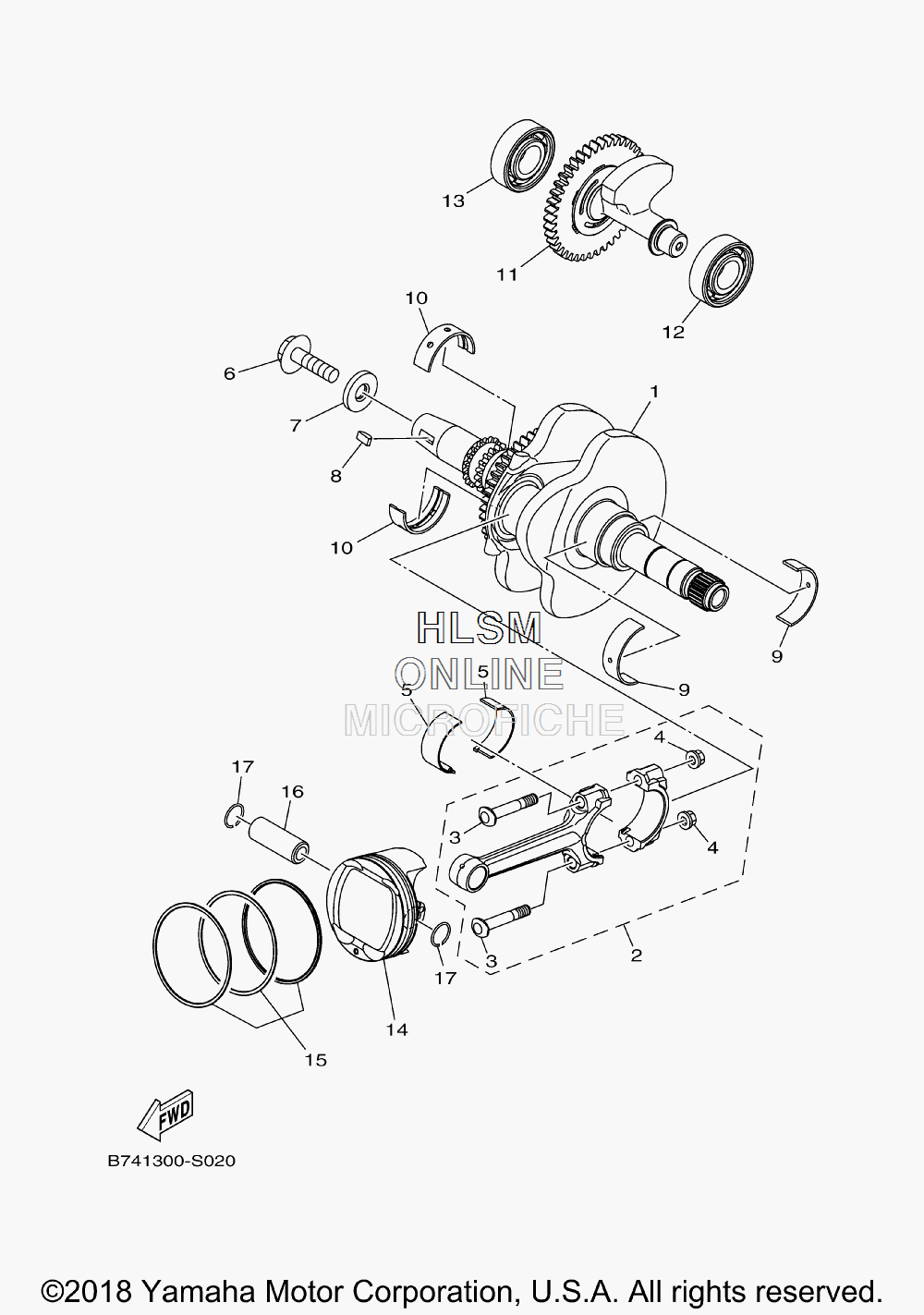

CRANKSHAFT W/ PISTON ASSY. для Yamaha XMAX - 2018 года выпуска
-
№АртикулНазвание
-
1B74-E1400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
2B74-11650-00-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
32C0-11654-00-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
490179-07001-00 ...NUT...NUT
-
5B74-11656-30-00 PLANE BEARING, CONNECTING ROD (GREEN)PLANE BEARING, CONNECTING ROD (GREEN)
-
5B74-11656-20-00 PLANE BEARING, CONNECTING ROD (BROWN)PLANE BEARING, CONNECTING ROD (BROWN)
-
5B74-11656-00-00 PLANE BEARING, CONNECTING ROD (BLUE)PLANE BEARING, CONNECTING ROD (BLUE)
-
5B74-11656-10-00 PLANE BEARING, CONNECTING ROD (BLACK)PLANE BEARING, CONNECTING ROD (BLACK)
-
690105-10883-00 BOLT, FLANGEBOLT, FLANGE
-
790201-10848-00 WASHER, PLATEWASHER, PLATE
-
890280-05013-00 KEY, WOODRUFFKEY, WOODRUFF
-
9B74-11416-40-00 PLANE BEARING, CRANKSHAFT 1 (YELLOW)PLANE BEARING, CRANKSHAFT 1 (YELLOW)
-
9B74-11416-50-00 PLANE BEARING, CRANKSHAFT 1 (PINK)PLANE BEARING, CRANKSHAFT 1 (PINK)
-
9B74-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (GREEN)PLANE BEARING, CRANKSHAFT 1 (GREEN)
-
9B74-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (BROWN)PLANE BEARING, CRANKSHAFT 1 (BROWN)
-
9B74-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (BLACK)PLANE BEARING, CRANKSHAFT 1 (BLACK)
-
9B74-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (BLUE)PLANE BEARING, CRANKSHAFT 1 (BLUE)
-
9B74-11416-A0-00 PLANE BEARING, CRANKSHAFT 1 (WHITE)PLANE BEARING, CRANKSHAFT 1 (WHITE)
-
10B74-11417-50-00 PLANE BEARING, CRANKSHAFT 2 (PINK)PLANE BEARING, CRANKSHAFT 2 (PINK)
-
10B74-11417-40-00 PLANE BEARING, CRANKSHAFT 2 (YELLOW)PLANE BEARING, CRANKSHAFT 2 (YELLOW)
-
10B74-11417-30-00 PLANE BEARING, CRANKSHAFT 2 (GREEN)PLANE BEARING, CRANKSHAFT 2 (GREEN)
-
10B74-11417-20-00 PLANE BEARING, CRANKSHAFT 2 (BROWN)PLANE BEARING, CRANKSHAFT 2 (BROWN)
-
10B74-11417-10-00 PLANE BEARING, CRANKSHAFT 2 (BLACK)PLANE BEARING, CRANKSHAFT 2 (BLACK)
-
10B74-11417-00-00 PLANE BEARING, CRANKSHAFT 2 (BLUE)PLANE BEARING, CRANKSHAFT 2 (BLUE)
-
10B74-11417-A0-00 PLANE BEARING, CRANKSHAFT 2 (WHITE)PLANE BEARING, CRANKSHAFT 2 (WHITE)
-
11B74-E1500-00-00 BALANCER ASSYBALANCER ASSY
-
1293306-303YT-00 BEARINGBEARING
-
1393306-204XV-00 BEARINGBEARING
-
14B74-E1631-01-00 PISTON (STD)PISTON (STD)
-
15B74-E1603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
16B74-E1633-00-00 PIN, PISTONPIN, PISTON
-
1793450-17129-00 CIRCLIPCIRCLIP
