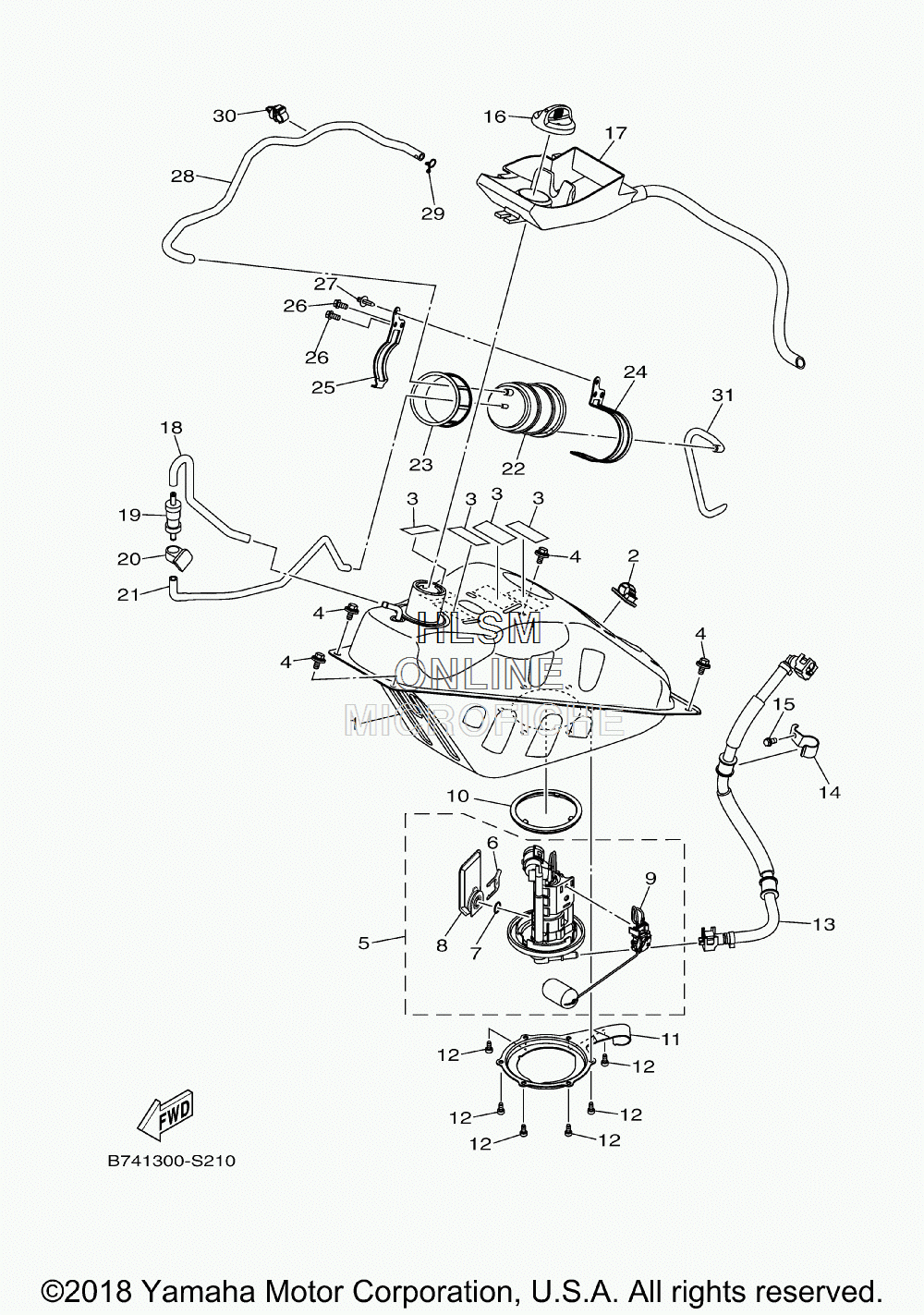

FUEL TANK ASSY. для Yamaha XMAX - 2018 года выпуска
-
№АртикулНазвание
-
1B74-F4110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
290464-13185-00 CLAMPCLAMP
-
35D9-F414G-00-00 SEALSEAL
-
490119-068A2-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5B74-E3907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
63C1-F4519-00-00 ...CLIP...CLIP
-
73C1-24512-00-00 ...GASKET...GASKET
-
83C1-E3915-00-00 ...FILTER...FILTER
-
9B74-H5752-00-00 ...SENDER UNIT ASSY, FUEL METER...SENDER UNIT ASSY, FUEL METER
-
103C1-F4486-00-00 O-RINGO-RING
-
11B74-F4425-00-00 BRACKET, FUEL PUMP 1BRACKET, FUEL PUMP 1
-
1291312-05010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
13B74-E3971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
14B74-F419A-00-00 HOLDERHOLDER
-
1595022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
16B74-F4610-00-00 CAP ASSYCAP ASSY
-
17B74-F414A-00-00 COVER, FILLERCOVER, FILLER
-
18B74-F4313-00-00 PIPE 3PIPE 3
-
191DW-F4180-02-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
20B74-F4135-00-00 CLAMP 1CLAMP 1
-
21B74-F4314-10-00 PIPE 4PIPE 4
-
22B74-F4170-00-00 CANISTER ASSYCANISTER ASSY
-
23B74-F483H-00-00 BANDBAND
-
24B74-F452E-00-00 STAYSTAY
-
25B74-F454E-00-00 STAY 2STAY 2
-
2695022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2790269-06816-00 RIVETRIVET
-
28B74-F4315-10-00 PIPE 5PIPE 5
-
2990467-09006-00 CLIPCLIP
-
3090464-10008-00 CLAMPCLAMP
-
31B74-F4316-00-00 PIPE 6PIPE 6
