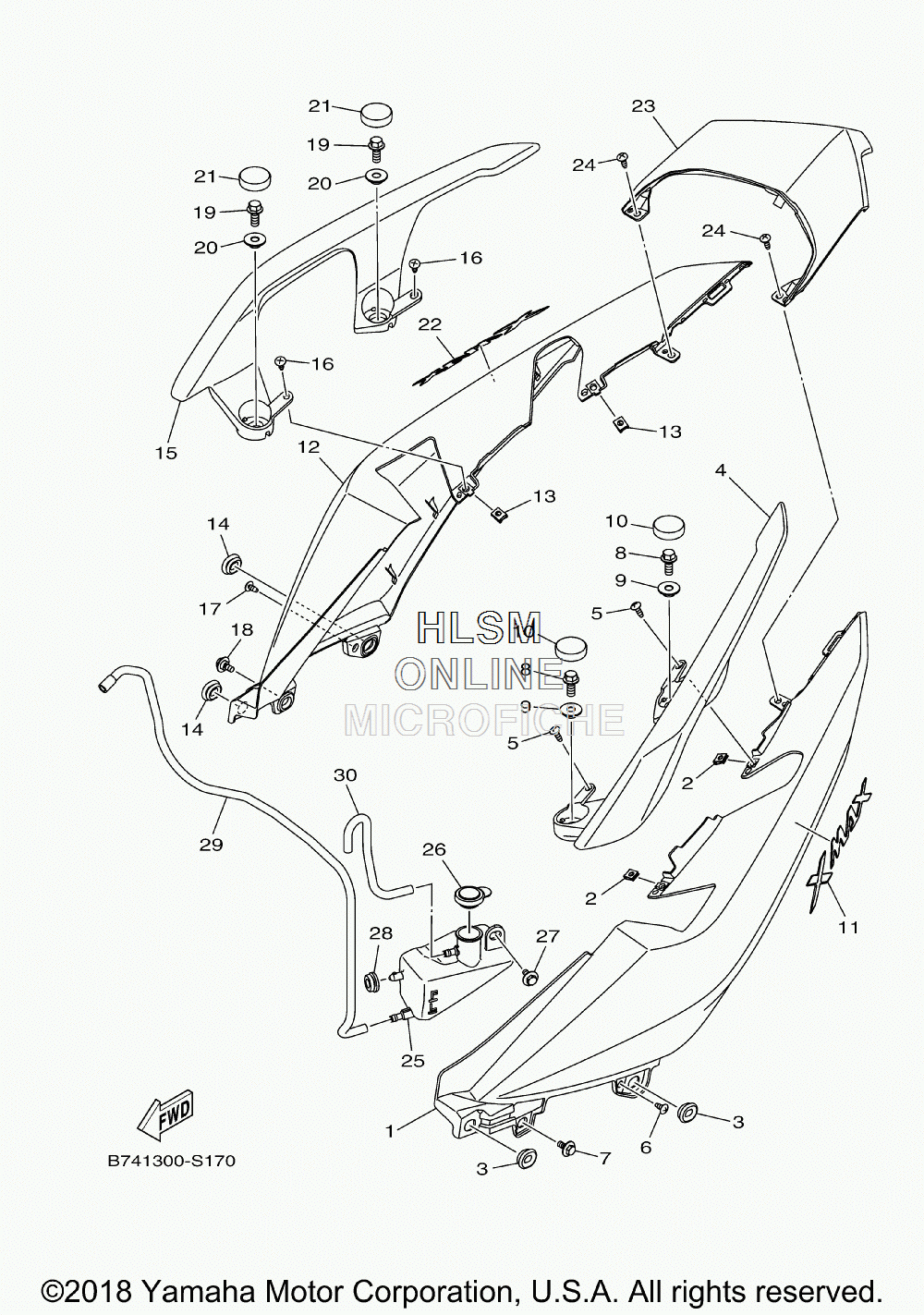

SIDE COVER для Yamaha XMAX - 2018 года выпуска
-
№АртикулНазвание
-
1B74-F1731-00-P1 COVER, SIDE 3 (WM6 - WHITE METALLIC)COVER, SIDE 3 (WM6 - WHITE METALLIC)
-
290183-05807-00 NUT, SPRINGNUT, SPRING
-
390480-01559-00 GROMMETGROMMET
-
4B74-F474A-00-P1 ASSIST, GRIP (WM6 - WHITE METALLIC)ASSIST, GRIP (WM6 - WHITE METALLIC)
-
597702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
697702-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
790109-06887-00 BOLTBOLT
-
895812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
990387-08839-00 COLLARCOLLAR
-
10B74-F3469-00-00 CAP, BOLTCAP, BOLT
-
11B74-F173B-00-00 EMBLEM 3DEMBLEM 3D
-
12B74-F1741-00-P1 COVER, SIDE 4 (WM6 - WHITE METALLIC)COVER, SIDE 4 (WM6 - WHITE METALLIC)
-
1390183-05807-00 NUT, SPRINGNUT, SPRING
-
1490480-01559-00 GROMMETGROMMET
-
15B74-F474W-00-P1 ASSIST, GRIP 2 (WM6 - WHITE METALLIC)ASSIST, GRIP 2 (WM6 - WHITE METALLIC)
-
1697702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
1797702-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
1890109-06887-00 BOLTBOLT
-
1995812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
2090387-08839-00 COLLARCOLLAR
-
21B74-F3469-00-00 CAP, BOLTCAP, BOLT
-
22B74-F173B-00-00 EMBLEM 3DEMBLEM 3D
-
23B74-F171E-00-P1 COVER, SIDE 5 (WM6 - WHITE METALLIC)COVER, SIDE 5 (WM6 - WHITE METALLIC)
-
2497702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
25B74-F1871-00-00 TANK, RECOVERYTANK, RECOVERY
-
261S7-F1875-00-00 CAPCAP
-
2790109-06887-00 BOLTBOLT
-
2890480-13567-00 GROMMETGROMMET
-
29B74-F1816-00-00 PIPE 1PIPE 1
-
30B74-F1817-00-00 PIPE 2PIPE 2
