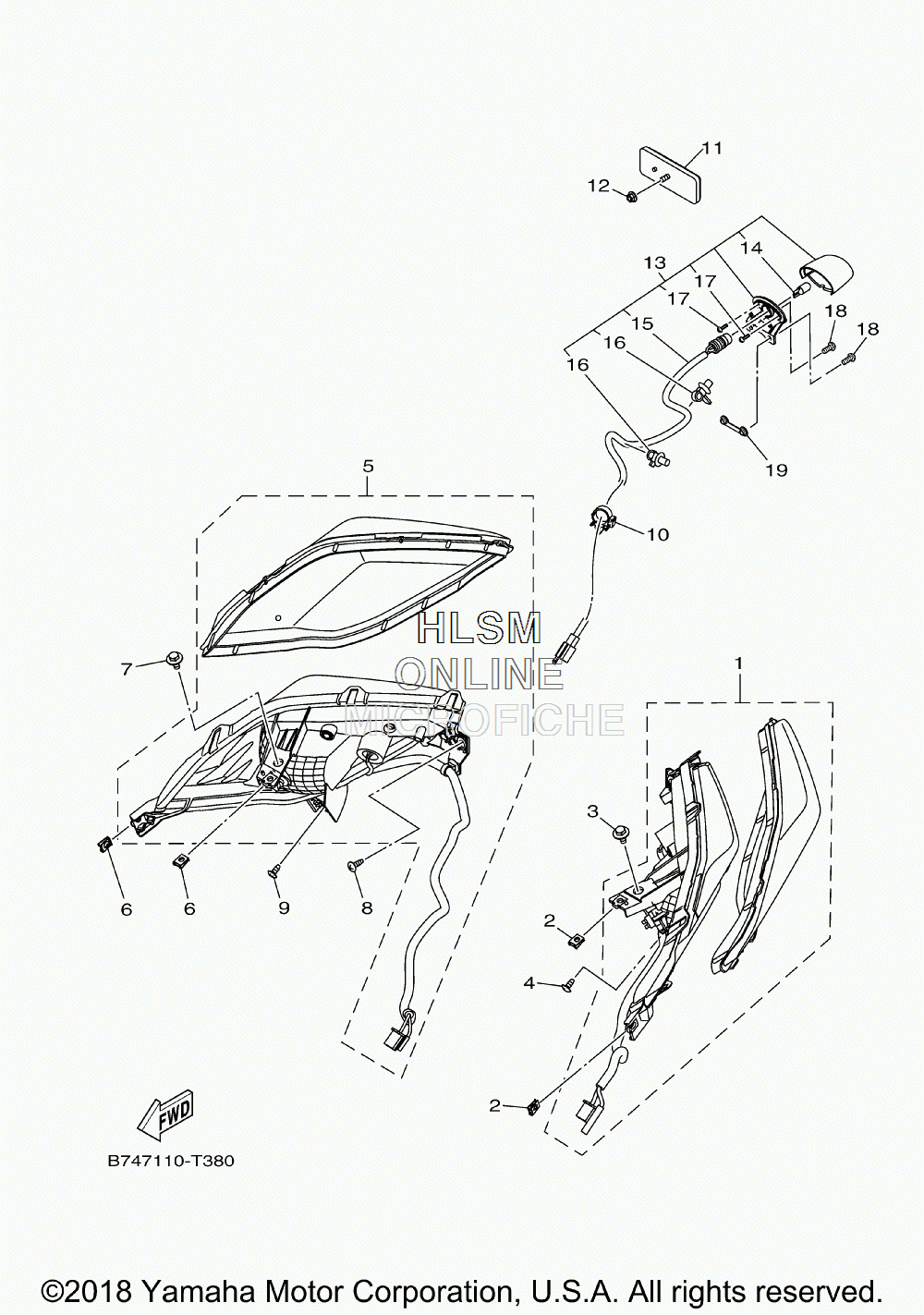

TAILLIGHT ASSY. для Yamaha XMAX - 2018 года выпуска
-
№АртикулНазвание
-
1B74-H4710-10-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
290183-05807-00 NUT, SPRINGNUT, SPRING
-
390109-06887-00 BOLTBOLT
-
497702-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
5B74-H4730-10-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
690183-05807-00 NUT, SPRINGNUT, SPRING
-
790109-06887-00 BOLTBOLT
-
897702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
997702-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
1090464-16006-00 CLAMPCLAMP
-
113C1-H5130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
1295702-05500-00 NUT, FLANGENUT, FLANGE
-
13B74-H4740-00-00 LICENCE LIGHT ASSYLICENCE LIGHT ASSY
-
141WD-H4744-00-00 ...BULB (12V-5W)...BULB (12V-5W)
-
15B74-H4547-00-00 ......CORD, LICENSE LIGHT......CORD, LICENSE LIGHT
-
16B74-H454J-00-00 ...CLAMP, CORD...CLAMP, CORD
-
171WD-H4726-00-00 ...SCREW...SCREW
-
1892017-05012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
19B74-H4748-00-00 NUT, SPECIALNUT, SPECIAL
