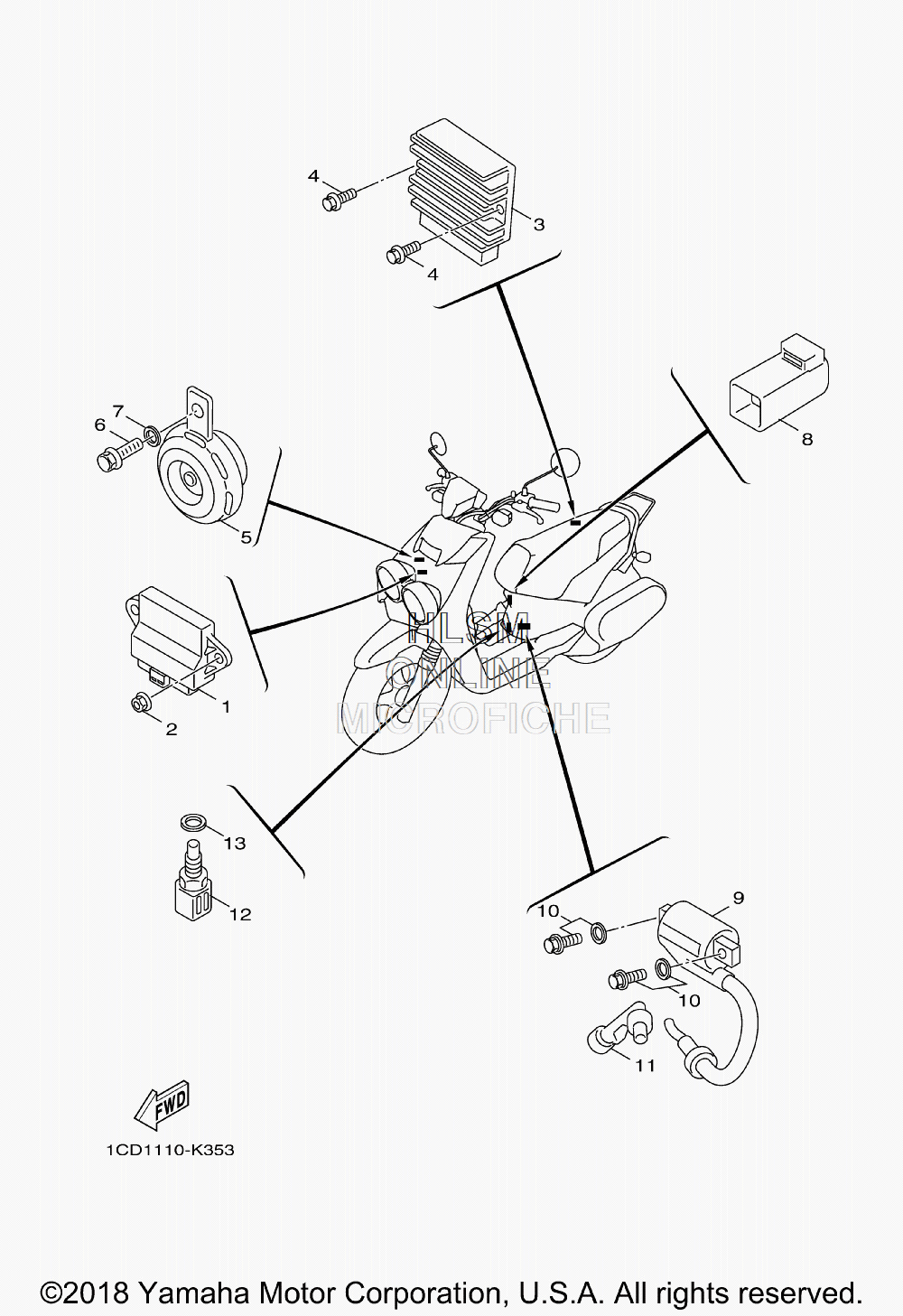

ELECTRICAL для Yamaha ZUMA 50 F - 2019 года выпуска
-
№АртикулНазвание
-
13B3-H591A-10-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
295707-06500-00 NUT, FLANGENUT, FLANGE
-
33B3-H1960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
495807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
55ST-H3371-40-00 HORNHORN
-
695027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
790201-06107-00 WASHER, PLATEWASHER, PLATE
-
85WC-H1940-01-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
91P5-H2310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
1097507-06525-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
111CD-H2370-01-00 PLUG CAP ASSYPLUG CAP ASSY
-
125YP-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1390201-12172-00 WASHER, PLATEWASHER, PLATE
