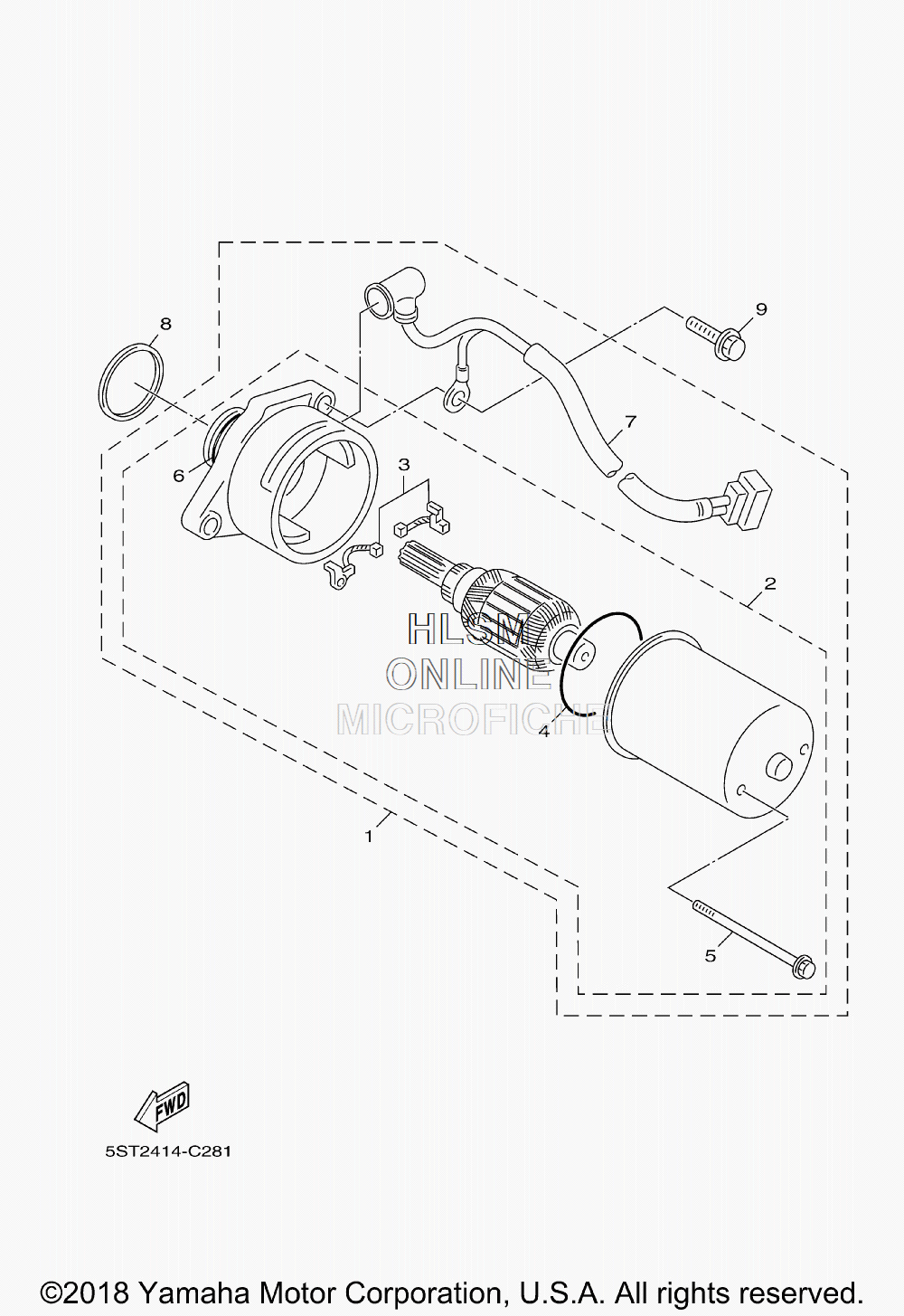

STARTING MOTOR ASSY. для Yamaha ZUMA 50 F - 2019 года выпуска
-
№АртикулНазвание
-
11CD-H1800-00-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
23B3-H1890-01-00 ...MOTOR ASSY...MOTOR ASSY
-
34DM-H1801-00-00 ......BRUSH SET......BRUSH SET
-
493210-44678-00 ......O-RING......O-RING
-
55ST-H1828-10-00 ......BOLT 2......BOLT 2
-
693210-23614-00 ......O-RING......O-RING
-
71CD-H183G-00-00 ...CORD COMP....CORD COMP.
-
890202-26800-00 WASHER, PLATEWASHER, PLATE
-
991317-06020-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
