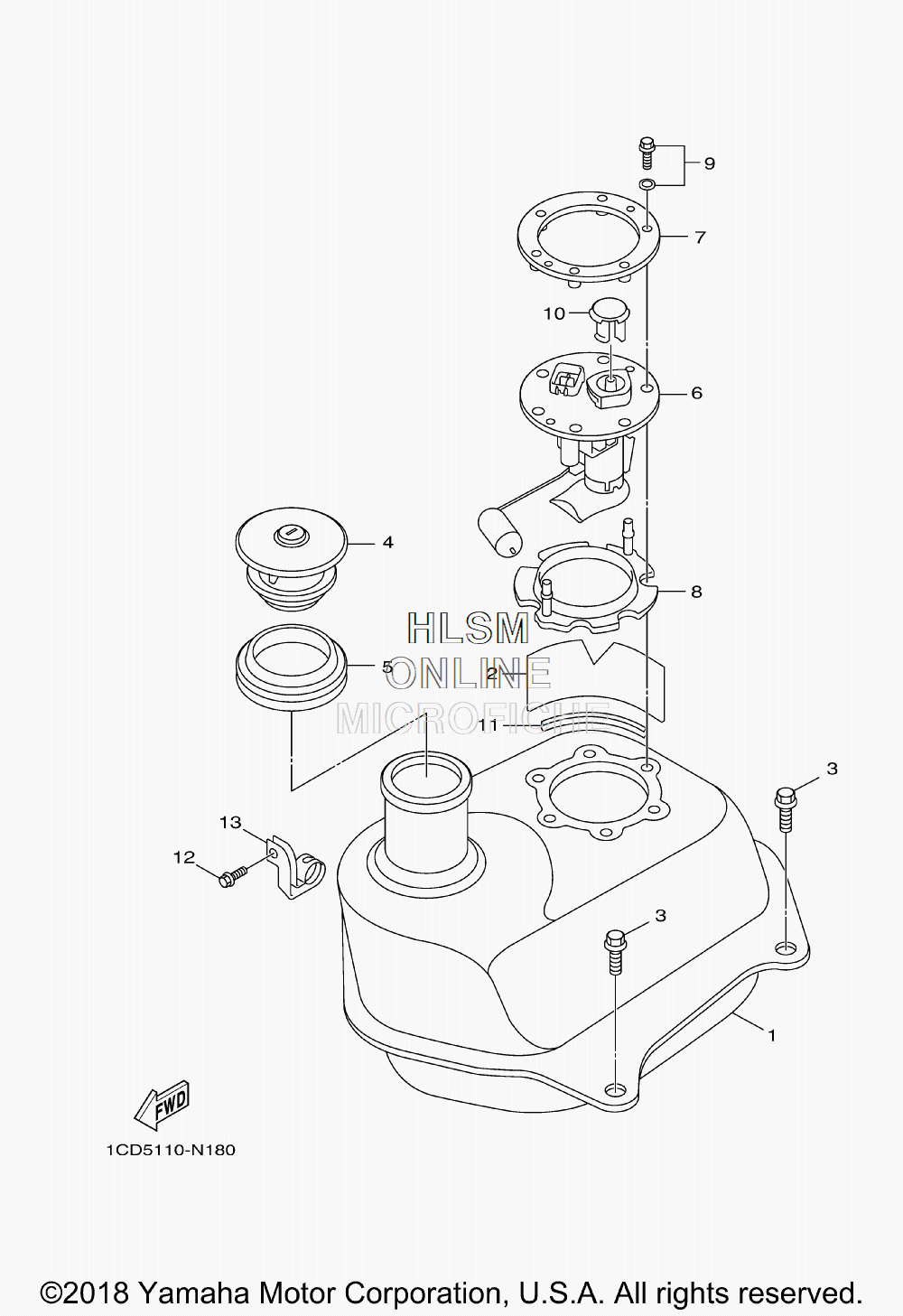

FUEL TANK ASSY. для Yamaha ZUMA 50 F - 2019 года выпуска
-
№АртикулНазвание
-
13B3-F4110-00-33 FUEL TANK COMP. (YB - YAMAHA BLACK)FUEL TANK COMP. (YB - YAMAHA BLACK)
-
21VC-F4181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
395827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
41CD-F4602-01-00 CAP ASSYCAP ASSY
-
53B3-F414G-10-00 SEALSEAL
-
63B3-E3907-11-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
73D0-F4491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
85CA-2414G-01-00 SEALSEAL
-
997507-05520-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
105VU-24135-00-00 CLAMP 1CLAMP 1
-
111VC-F4141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
123B3-F4136-00-00 CLAMP 2CLAMP 2
-
1395807-06012-00 BOLT, FLANGEBOLT, FLANGE
