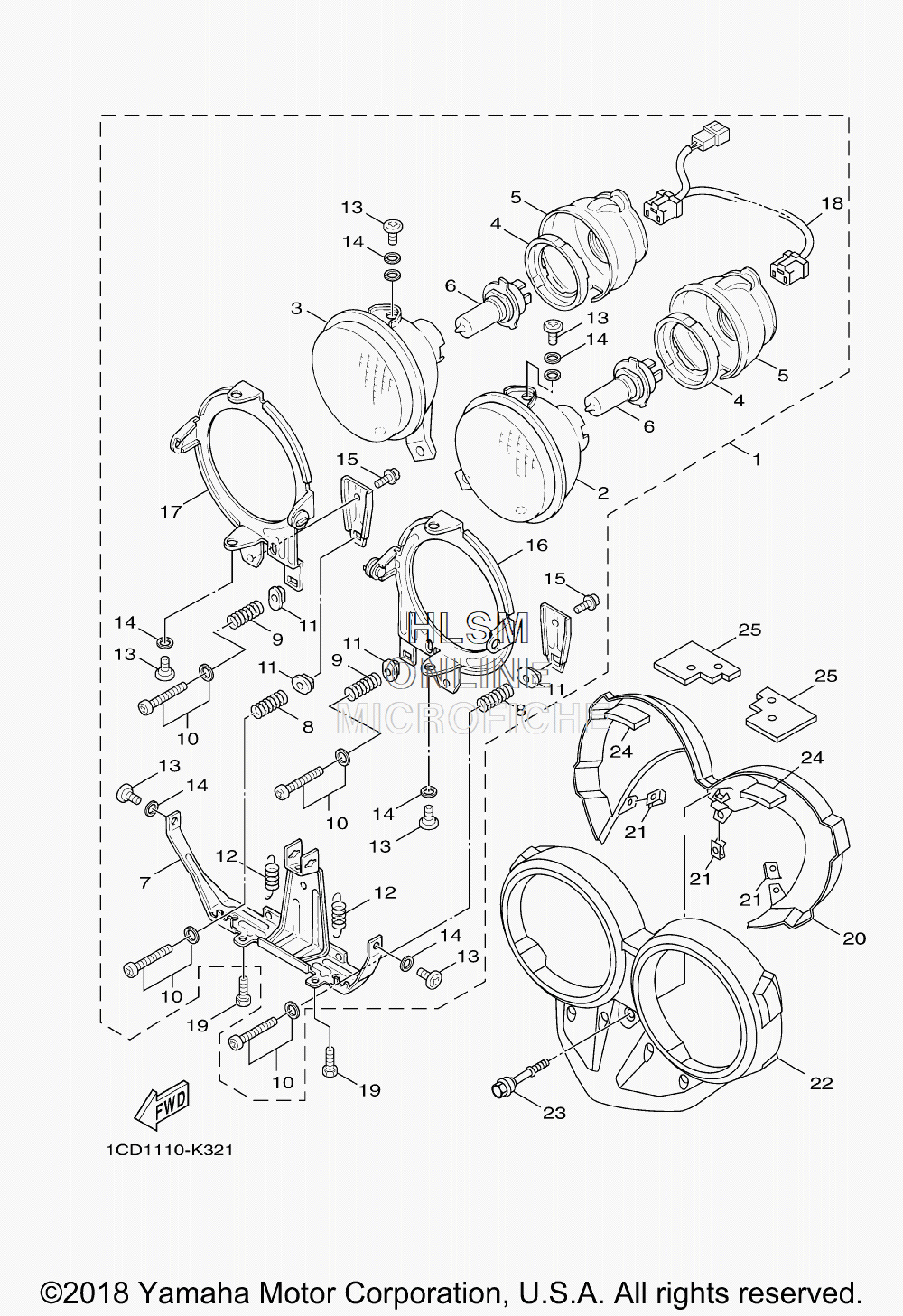

HEADLIGHT ASSY. для Yamaha ZUMA 50 F - 2019 года выпуска
-
№АртикулНазвание
-
11CD-H430A-00-00 HEADLIGHT UNIT COMP.HEADLIGHT UNIT COMP.
-
25PJ-H4310-10-00 ...HEADLIGHT UNIT ASSY...HEADLIGHT UNIT ASSY
-
35PJ-H4310-20-00 ...HEADLIGHT UNIT ASSY...HEADLIGHT UNIT ASSY
-
45PJ-H4397-10-00 ...COVER, SOCKET...COVER, SOCKET
-
55PJ-H4378-10-00 ...CAP...CAP
-
65PJ-H4314-00-00 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
75PJ-H431R-00-00 ...STAY, SETTING...STAY, SETTING
-
85PJ-H4332-00-00 ...SPRING, SCREW...SPRING, SCREW
-
95PJ-H4332-00-00 ...SPRING, SCREW...SPRING, SCREW
-
105PJ-H4331-00-00 ...SCREW, RIM ADJUSTING...SCREW, RIM ADJUSTING
-
115PJ-H4317-00-00 ...NUT...NUT
-
125PJ-H4335-00-00 ...SPRING...SPRING
-
135PJ-H4325-00-00 ...SCREW, RIM FITTING...SCREW, RIM FITTING
-
145PJ-H4344-00-00 ...WASHER, PLAIN...WASHER, PLAIN
-
155PJ-H4526-00-00 ...SCREW...SCREW
-
165PJ-H4318-00-00 ...STAY, HEADLIGHT 1...STAY, HEADLIGHT 1
-
175PJ-H4319-00-00 ...STAY, HEADLIGHT 2...STAY, HEADLIGHT 2
-
181CD-H4312-00-00 ...CORD ASSY...CORD ASSY
-
1990119-06821-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
201CD-H4144-00-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
2190183-05816-00 NUT, SPRINGNUT, SPRING
-
221CD-H4169-00-00 GUARD, HEADLIGHTGUARD, HEADLIGHT
-
235PJ-H3546-00-00 BOLTBOLT
-
244VP-H4366-00-00 DAMPER, HEADLIGHT 1DAMPER, HEADLIGHT 1
-
254VP-H4368-00-00 DAMPER 3DAMPER 3
