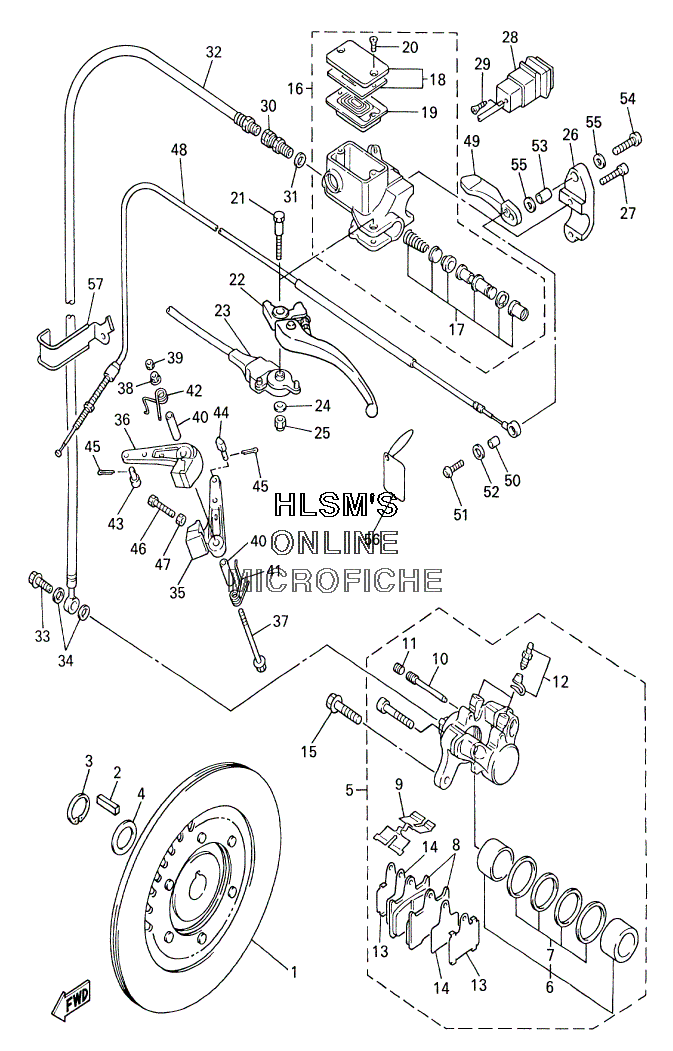

BRAKE ASSY для Yamaha VENTURE 700 - 2002 года выпуска
-
№АртикулНазвание
-
18CR-2581T-00-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
290281-07004-00 KEY, SLIDINGKEY, SLIDING
-
393410-27080-00 CIRCLIPCIRCLIP
-
490201-270U5-00 WASHER, PLATEWASHER, PLATE
-
58DF-2580T-01-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
68CR-W0057-00-00 ....PISTON ASSY, CALIPER....PISTON ASSY, CALIPER
-
78CR-W0047-00-00 ........CALIPER SEAL KIT........CALIPER SEAL KIT
-
88DF-W0046-00-00 ....BRAKE PAD KIT 2....BRAKE PAD KIT 2
-
98CR-25919-00-00 ....SUPPORT, PAD....SUPPORT, PAD
-
108CR-25924-00-00 ....PIN, PAD....PIN, PAD
-
118CR-25926-00-00 ....BOLT....BOLT
-
128CR-W0048-00-00 ....BLEED SCREW KIT....BLEED SCREW KIT
-
138DF-2582F-00-00 ....RETAINER....RETAINER
-
148DF-25828-00-00 ....SHIM, CALIPER....SHIM, CALIPER
-
1590105-10634-00 BOLT, FLANGEBOLT, FLANGE
-
168EK-W2587-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
178CR-W0041-00-00 ....CYLINDER KIT, MASTER....CYLINDER KIT, MASTER
-
188CR-W2585-00-00 ....RESERVOIR CAP SET....RESERVOIR CAP SET
-
1955U-25854-00-00 ....DIAPHRAGM, RESERVOIR....DIAPHRAGM, RESERVOIR
-
2098706-04012-00 ...SCREW, FLAT HEAD (+)...SCREW, FLAT HEAD (+)
-
218CR-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
228DN-83912-00-00 LEVER 1LEVER 1
-
238CR-82530-01-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
248CR-8398X-00-00 WASHER, PLAINWASHER, PLAIN
-
2595707-05300-00 NUT, FLANGENUT, FLANGE
-
268CR-25867-00-00 HOLDER, MASTER CYLINDERHOLDER, MASTER CYLINDER
-
2791316-06022-00 BOLTBOLT
-
288EK-83950-00-00 BEAM SWITCH ASSYBEAM SWITCH ASSY
-
298CR-2589H-00-00 SCREWSCREW
-
303LC-25885-00-00 JOINTJOINT
-
3190201-10118-00 WASHER, PLATEWASHER, PLATE
-
328DF-25872-10-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
3390401-10159-00 BOLT, UNIONBOLT, UNION
-
3490201-10118-00 WASHER, PLATEWASHER, PLATE
-
358CR-25730-00-00 CALIPER BODY COMP.1CALIPER BODY COMP.1
-
368CR-25740-00-00 CALIPER BODY COMP. 2CALIPER BODY COMP. 2
-
3790105-08094-00 BOLT, FLANGEBOLT, FLANGE
