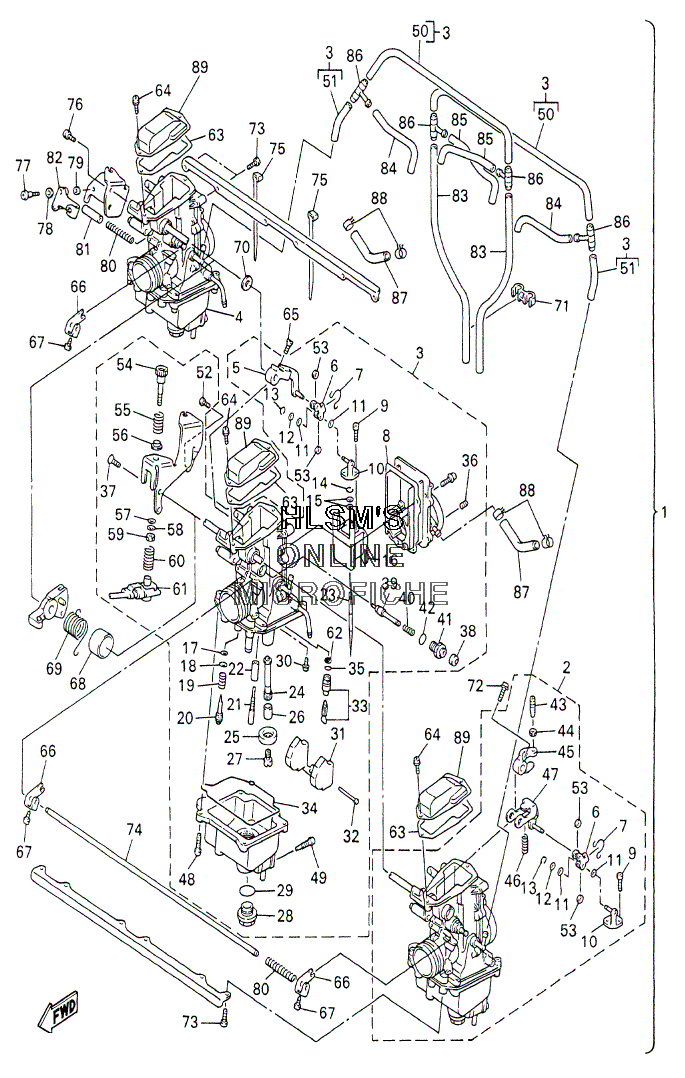

CARBURETOR ASSY для Yamaha VENTURE 700 - 2002 года выпуска
-
№АртикулНазвание
-
18CH-14100-10-00 CARBURETOR ASSY (VT700G)CARBURETOR ASSY (VT700G)
-
18DG-14100-00-00 CARBURETOR ASSY (VT600G)CARBURETOR ASSY (VT600G)
-
28CH-14101-10-00 ....CARBURETOR ASSY 1 (VT700G)....CARBURETOR ASSY 1 (VT700G)
-
28DG-14101-00-00 ....CARBURETOR ASSY 1 (VT600G)....CARBURETOR ASSY 1 (VT600G)
-
38CH-14102-10-00 ....CARBURETOR ASSY 2 (VT700G)....CARBURETOR ASSY 2 (VT700G)
-
38DG-14102-00-00 ....CARBURETOR ASSY 2 (VT600G)....CARBURETOR ASSY 2 (VT600G)
-
48CH-14103-10-00 ....CARBURETOR ASSY 3 (VT700G)....CARBURETOR ASSY 3 (VT700G)
-
48DG-14103-00-00 ....CARBURETOR ASSY 3 (VT600G)....CARBURETOR ASSY 3 (VT600G)
-
589A-14292-00-00 ........LEVER A (CARB 2)........LEVER A (CARB 2)
-
689A-14243-00-00 ........PLATE........PLATE
-
789A-14137-00-00 ........CLIP........CLIP
-
889A-14199-00-00 ........GASKET........GASKET
-
991316-03012-00 ........BOLT........BOLT
-
1089A-14188-00-00 ........CONNECTOR........CONNECTOR
-
113GF-14126-00-00 ........GASKET........GASKET
-
12620-14198-00-00 ........GASKET........GASKET
-
133MA-14937-00-00 ........CLIP........CLIP
-
143FA-14137-00-00 ........CLIP........CLIP
-
158AB-14227-00-00 ........WASHER (T=0.4MM)........WASHER (T=0.4MM)
-
1689A-14112-35-00 ........VALVE, THROTTLE 1 (VT600G)........VALVE, THROTTLE 1 (VT600G)
-
1689A-14112-30-00 ........VALVE, THROTTLE 1 (VT700G)........VALVE, THROTTLE 1 (VT700G)
-
173H1-14147-00-00 ......O-RING......O-RING
-
183H1-14962-00-00 ........WASHER........WASHER
-
195K7-14134-00-00 ........SPRING, AIR ADJUSTING........SPRING, AIR ADJUSTING
-
2089A-14565-00-00 ........SCREW, PILOT ADJUSTING........SCREW, PILOT ADJUSTING
-
213H1-14142-45-00 ........JET, PILOT (# 45) (STD) (VT700G)........JET, PILOT (# 45) (STD) (VT700G)
-
213H1-14142-50-00 ........JET, PILOT (# 50) (OPT)........JET, PILOT (# 50) (OPT)
-
213H1-14142-55-00 ........JET, PILOT (# 55) (OPT)........JET, PILOT (# 55) (OPT)
-
213H1-14142-52-00 ........JET, PILOT (# 52.5) (OPT)........JET, PILOT (# 52.5) (OPT)
-
213H1-14142-57-00 ........JET, PILOT (# 57.5) (OPT)........JET, PILOT (# 57.5) (OPT)
-
213H1-14142-60-00 ........JET, PILOT (# 60) (OPT)........JET, PILOT (# 60) (OPT)
-
213H1-14142-62-00 ........JET, PILOT (# 62.5) (OPT) (VT700G ONLY)........JET, PILOT (# 62.5) (OPT) (VT700G ONLY)
-
213H1-14142-42-00 ........JET, PILOT (# 42.5) (STD) (VT600G)........JET, PILOT (# 42.5) (STD) (VT600G)
-
2289A-14996-00-00 ........PIPE........PIPE
-
23275-14116-F1-00 ........NEEDLE (VT700G)........NEEDLE (VT700G)
-
23275-14116-50-00 ........NEEDLE (VT600G)........NEEDLE (VT600G)
-
248CH-14141-54-00 ........NOZZLE, MAIN (CARB 1) (VT700G)........NOZZLE, MAIN (CARB 1) (VT700G)
-
248CH-14141-52-00 ........NOZZLE, MAIN (CARB 1) (VT600G)........NOZZLE, MAIN (CARB 1) (VT600G)
-
248CH-14141-58-00 ........NOZZLE, MAIN (CARBS 2,3)........NOZZLE, MAIN (CARBS 2,3)
-
251LX-14153-00-00 ........WASHER, MAIN JET........WASHER, MAIN JET
-
2689A-14194-00-00 ........RING........RING
-
273G2-14231-27-00 ........JET, MAIN (#135) (OPT)........JET, MAIN (#135) (OPT)
-
273G2-1423A-78-00 ........JET, MAIN (#137.5) (OPT)........JET, MAIN (#137.5) (OPT)
-
273G2-14231-26-00 .......JET, MAIN (#130) (OPT).......JET, MAIN (#130) (OPT)
-
273G2-1423A-77-00 ........JET, MAIN (#132.5) (OPT)........JET, MAIN (#132.5) (OPT)
-
273G2-14231-28-00 ........JET, MAIN (#140) (OPT)........JET, MAIN (#140) (OPT)
-
273G2-14231-29-00 ........JET, MAIN (#145) (STD) (CARB 1) (VT700G)........JET, MAIN (#145) (STD) (CARB 1) (VT700G)
-
273G2-1423E-57-00 ........JET, MAIN (#143.8) (STD) (CARBS 2,3) (VT700G)........JET, MAIN (#143.8) (STD) (CARBS 2,3) (VT700G)
-
273G2-1423A-79-00 ........JET, MAIN (#142.5) (OPT)........JET, MAIN (#142.5) (OPT)
-
273G2-1423E-51-00 ........JET, MAIN (#128.8) (OPT)........JET, MAIN (#128.8) (OPT)
-
273G2-1423E-55-00 ........JET, MAIN (#138.8) (OPT)........JET, MAIN (#138.8) (OPT)
-
273G2-1423E-54-00 ........JET, MAIN (#136.3) (STD) (CARB 1) (VT600G)........JET, MAIN (#136.3) (STD) (CARB 1) (VT600G)
-
273G2-1423E-54-00 ........JET, MAIN (#136.3) (OPT)........JET, MAIN (#136.3) (OPT)
-
273G2-1423E-53-00 ........JET, MAIN (#133.8) (STD) (CARBS 2,3) (VT600G)........JET, MAIN (#133.8) (STD) (CARBS 2,3) (VT600G)
-
273G2-1423E-53-00 ........JET, MAIN (#133.8) (OPT)........JET, MAIN (#133.8) (OPT)
-
273G2-1423E-52-00 ........JET, MAIN (#131.3) (OPT)........JET, MAIN (#131.3) (OPT)
-
273G2-1423E-59-00 ........JET, MAIN (#148.8) (OPT)........JET, MAIN (#148.8) (OPT)
-
273G2-1423E-58-00 ........JET, MAIN (#146.3) (OPT)........JET, MAIN (#146.3) (OPT)
-
273G2-1423E-56-00 ........JET, MAIN (#141.3) (OPT)........JET, MAIN (#141.3) (OPT)
-
273G2-1423A-80-00 ........JET, MAIN (#147.5) (OPT)........JET, MAIN (#147.5) (OPT)
-
28500-14115-00-00 ........PLUG, SCREW........PLUG, SCREW
-
29558-14147-00-00 ........O-RING........O-RING
-
302LN-14565-00-00 ........SCREW........SCREW
-
311UY-14185-00-00 ........FLOAT........FLOAT
-
32537-14186-00-00 ........PIN, FLOAT........PIN, FLOAT
-
331AE-14190-13-00 ........NEEDLE VALVE ASSY (VT600G)........NEEDLE VALVE ASSY (VT600G)
-
331AE-14190-12-00 ........NEEDLE VALVE ASSY (VT700G)........NEEDLE VALVE ASSY (VT700G)
-
3489A-14147-00-00 ........O-RING........O-RING
-
358F2-14147-00-00 ........O-RING........O-RING
-
36239-14172-10-00 ........PILOT JET, AIR (1.0)........PILOT JET, AIR (1.0)
-
3798702-05008-00 ........SCREW, FLAT HEAD (CARB 2)........SCREW, FLAT HEAD (CARB 2)
-
38302-14173-00-00 ........COVER, PLUNGER CAP........COVER, PLUNGER CAP
-
394G0-14171-00-00 ........PLUNGER, STARTER........PLUNGER, STARTER
-
401AW-14135-00-00 ........SPRING, PLUNGER........SPRING, PLUNGER
-
411FN-14174-00-00 ........CAP, PLUNGER........CAP, PLUNGER
-
421AE-14147-00-00 ........O-RING........O-RING
-
4389A-14216-00-00 ........SCREW (CARBS 1,3)........SCREW (CARBS 1,3)
-
4495302-05700-00 ........NUT (CARBS 1,3)........NUT (CARBS 1,3)
-
4589A-14276-00-00 ........LEVER (CARBS 1,3)........LEVER (CARBS 1,3)
-
4689A-14286-00-00 ........SPRING (CARBS 1,3)........SPRING (CARBS 1,3)
-
4789A-14905-00-00 ........LEVER, STARTER (CARBS 1,3)........LEVER, STARTER (CARBS 1,3)
-
4898501-04014-00 ........SCREW, PAN HEAD........SCREW, PAN HEAD
-
4912R-14191-00-00 ........PLUG, DRAIN........PLUG, DRAIN
-
5084M-14197-00-00 ........PIPE (CARBS 1,3)........PIPE (CARBS 1,3)
-
518CH-14348-00-00 ........PIPE 1 (CARBS 1,3)........PIPE 1 (CARBS 1,3)
-
5298502-04010-00 .......SCREW, PAN HEAD (CARB 2).......SCREW, PAN HEAD (CARB 2)
-
533MA-14918-00-00 ........RING........RING
-
548CC-14122-00-00 ........SCREW, THROTTLE........SCREW, THROTTLE
-
552J2-14133-00-00 ........SPRING, THROTTLE STOP........SPRING, THROTTLE STOP
-
5689A-14265-00-00 ........COLLAR........COLLAR
-
5722F-14117-00-00 .......WASHER, PLUG SCREW.......WASHER, PLUG SCREW
-
581UF-14952-00-00 ........WASHER........WASHER
-
5989A-14594-00-00 ........NUT........NUT
-
6089A-24529-00-00 ........SPRING........SPRING
-
6187S-8259A-00-00 ........SWITCH, CARBURETOR........SWITCH, CARBURETOR
-
621J7-14994-00-00 ........NET, FILTER........NET, FILTER
-
6389A-14198-00-00 ....GASKET....GASKET
-
6497606-04110-00 ....SCREW....SCREW
-
6598702-04014-00 ....SCREW, FLAT HEAD....SCREW, FLAT HEAD
-
6689A-14208-00-00 ....LEVER COMP. 1....LEVER COMP. 1
-
6711H-14991-00-00 ....SCREW....SCREW
-
6889A-14264-00-00 ....COLLAR (CARB 2)....COLLAR (CARB 2)
-
698CH-14589-00-00 ....SPRING....SPRING
-
703H1-14227-00-00 ....WASHER....WASHER
-
7187M-14137-00-00 ...CLIP...CLIP
-
7297602-04116-00 ....SCREW, PAN HEAD WITH WASHER (CARBS 1,3)....SCREW, PAN HEAD WITH WASHER (CARBS 1,3)
-
7398502-05012-00 ....SCREW, PAN HEAD....SCREW, PAN HEAD
-
748CH-14978-00-00 ....SHAFT, STARTER LEVER....SHAFT, STARTER LEVER
-
7535H-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
7697602-05110-00 ....SCREW, PAN HEAD WITH WASHER (CARB 3)....SCREW, PAN HEAD WITH WASHER (CARB 3)
-
7722F-14115-00-00 ....PLUG, SCREW (CARB 3)....PLUG, SCREW (CARB 3)
-
7822F-14117-00-00 ....WASHER, PLUG SCREW (CARB 3)....WASHER, PLUG SCREW (CARB 3)
-
793FV-14962-00-00 ....WASHER (CARB 3)....WASHER (CARB 3)
-
801AE-14135-00-00 ....SPRING, PLUNGER....SPRING, PLUNGER
-
8189A-14118-00-00 ....CAP....CAP
-
8289A-14588-00-00 ....LEVER....LEVER
-
838A7-14197-00-00 ....PIPE....PIPE
-
848A7-14196-00-00 ....PIPE....PIPE
-
858F2-14197-00-00 ....PIPE....PIPE
-
864N0-14251-00-00 ...NIPPLE...NIPPLE
-
878CH-14987-10-00 ....HOSE....HOSE
-
8890467-10035-00 ....CLIP....CLIP
-
8989A-24452-00-00 ....COVER....COVER
