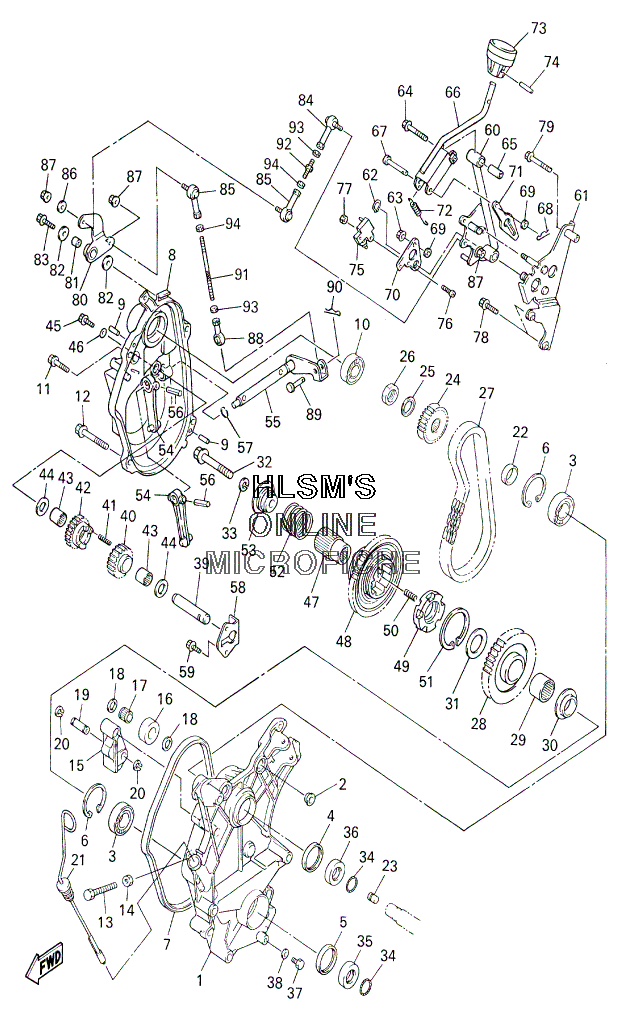

CHAINCASE ASSY для Yamaha VENTURE 700 - 2002 года выпуска
-
№АртикулНазвание
-
18CR-47541-01-00 HOUSING, CHAINHOUSING, CHAIN
-
290179-10679-00 NUTNUT
-
393306-20592-00 BEARINGBEARING
-
493102-35473-00 OIL SEALOIL SEAL
-
593102-35318-00 OIL SEALOIL SEAL
-
699009-52500-00 CIRCLIPCIRCLIP
-
78CR-47558-01-00 RING, HOUSINGRING, HOUSING
-
88CW-47543-02-00 CAP, HOUSINGCAP, HOUSING
-
993606-20044-00 PIN, DOWELPIN, DOWEL
-
1093306-20402-00 BEARING (B6204JRC3)BEARING (B6204JRC3)
-
1195827-08030-00 BOLT, FLANGEBOLT, FLANGE
-
1295827-10060-00 BOLT, FLANGEBOLT, FLANGE
-
1390101-10357-00 BOLTBOLT
-
1495307-10600-00 NUTNUT
-
158CR-47613-00-00 HOLDERHOLDER
-
168CR-47612-00-00 WHEELWHEEL
-
1793315-21227-00 BEARINGBEARING
-
1890201-127E1-00 WASHER, PLATEWASHER, PLATE
-
1990249-12227-00 PINPIN
-
2099009-12400-00 CIRCLIPCIRCLIP
-
218CR-47546-00-00 LEVEL, OILLEVEL, OIL
-
2290387-2508D-00 COLLARCOLLAR
-
2382M-17699-00-00 PLUG, OILPLUG, OIL
-
2489J-17682-00-00 SPROCKET, CHAIN DRIVE (20T) (VT600G)SPROCKET, CHAIN DRIVE (20T) (VT600G)
-
2489J-17682-20-00 SPROCKET, CHAIN DRIVE (22T) (VT700G)SPROCKET, CHAIN DRIVE (22T) (VT700G)
-
2590208-22001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
2690170-22094-00 NUTNUT
-
2794860-02068-00 CHAIN (68L) (VT600G)CHAIN (68L) (VT600G)
-
2794860-02070-00 CHAIN (70L) (VT700G)CHAIN (70L) (VT700G)
-
288CW-47587-90-00 SPROCKET, CHAIN DRIVEN (39T)SPROCKET, CHAIN DRIVEN (39T)
-
2993317-33179-00 BEARINGBEARING
-
3090387-2008G-00 COLLARCOLLAR
-
3190201-320S3-00 WASHER, PLATEWASHER, PLATE
-
3290105-100A7-00 BOLT, FLANGEBOLT, FLANGE
-
3392907-10100-00 WASHER, SPRINGWASHER, SPRING
-
3493210-25071-00 O-RINGO-RING
-
3590387-2508C-00 COLLARCOLLAR
-
3690387-2511J-00 COLLARCOLLAR
-
3797007-08014-00 BOLTBOLT
-
3890210-08017-00 WASHER, SEALWASHER, SEAL
-
398CW-1761A-00-00 SHAFT, 1SHAFT, 1
-
408DM-17692-00-00 SPROCKET, DRIVESPROCKET, DRIVE
-
4190501-06022-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
428CW-17143-00-00 GEAR, REVERSE PINION 1GEAR, REVERSE PINION 1
-
4393317-21578-00 BEARINGBEARING
-
4490201-16245-00 WASHER, PLATEWASHER, PLATE
-
4590105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
4690210-06006-00 WASHER, SEALWASHER, SEAL
-
478CW-47571-00-00 JOURNAL 1JOURNAL 1
-
488CW-17243-00-00 GEAR, REVERSE WHEEL 1GEAR, REVERSE WHEEL 1
-
498CW-17492-00-00 DOG, TRANSMISSION SHIFTDOG, TRANSMISSION SHIFT
-
5090501-066J5-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
5193440-39175-00 CIRCLIPCIRCLIP
-
5290501-326J6-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
538CW-47564-00-00 COLLARCOLLAR
-
548CW-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
558CW-18197-00-00 SHAFTSHAFT
-
5691609-50022-00 PIN, SPRINGPIN, SPRING
-
5793210-12131-00 O-RINGO-RING
-
588CW-47591-00-00 PLATEPLATE
-
5990105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
608CW-18112-01-00 ARM, SHIFTARM, SHIFT
-
618CW-18161-01-00 GUIDE, PLATE STOPPERGUIDE, PLATE STOPPER
-
6299009-12400-00 CIRCLIPCIRCLIP
-
6395607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
6495827-06035-00 BOLT, FLANGEBOLT, FLANGE
-
6590387-06605-00 COLLARCOLLAR
-
668CW-18152-10-00 LEVER, SHIFT 4LEVER, SHIFT 4
-
6791701-06035-00 PIN, CLEVISPIN, CLEVIS
-
6890468-12007-00 CLIPCLIP
-
6992907-06200-00 WASHERWASHER
-
708CW-1811A-00-00 PLATE, SHIFT ARMPLATE, SHIFT ARM
-
718CW-18153-00-00 GUIDE, SHIFT RETURN SPRINGGUIDE, SHIFT RETURN SPRING
-
7290506-14343-00 SPRING, TENSIONSPRING, TENSION
-
738CL-18174-00-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
7491609-40022-00 PIN, SPRINGPIN, SPRING
-
75J51-82817-00-00 SWITCHSWITCH
-
7698907-04016-00 SCREW, BINDSCREW, BIND
-
7795607-04100-00 NUT, UNUT, U
-
7895827-06025-00 BOLT, FLANGEBOLT, FLANGE
-
7995827-06040-00 BOLT, FLANGEBOLT, FLANGE
-
808CW-18198-00-00 LEVERLEVER
-
8190387-0608T-00 COLLARCOLLAR
-
8290201-06071-00 WASHER, PLATEWASHER, PLATE
-
8390105-06601-00 BOLT, FLANGEBOLT, FLANGE
-
84J45-23845-00-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
8588T-18157-00-00 JOINT 2JOINT 2
-
8690201-06778-00 WASHER, PLATEWASHER, PLATE
-
8795607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
888CW-18156-00-00 JOINT 1JOINT 1
-
8991701-06022-00 PIN, CLEVISPIN, CLEVIS
-
9090468-12007-00 CLIPCLIP
-
9188T-18116-01-00 JOINT, ROD 1JOINT, ROD 1
-
9226H-18115-00-00 ROD, SHIFTROD, SHIFT
-
9395304-06600-00 NUTNUT
-
9490170-06289-00 NUTNUT
