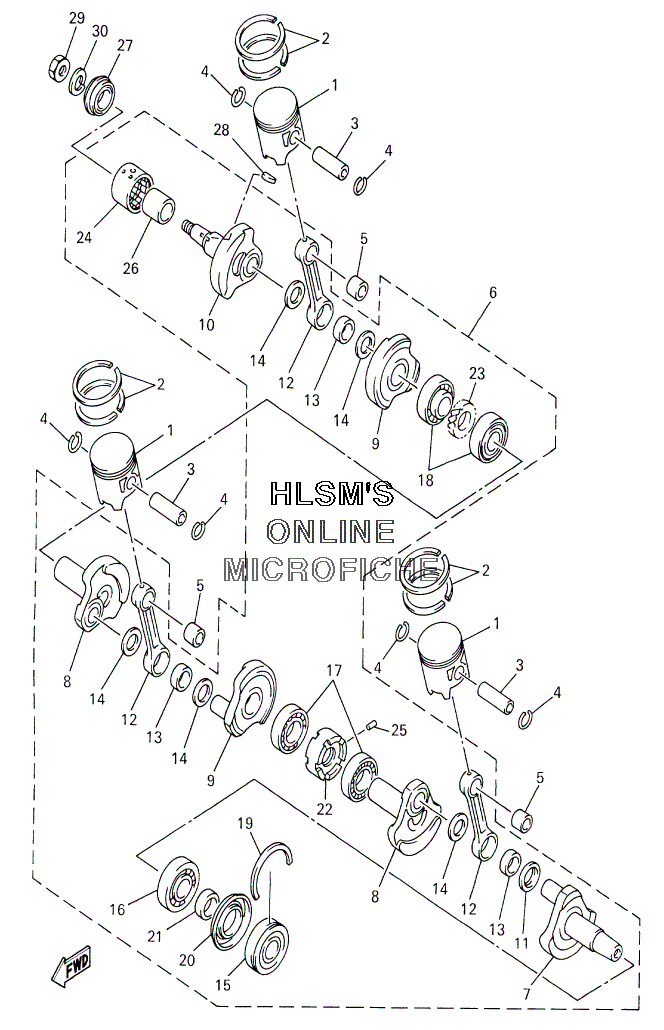

CRANKSHAFT W/ PISTON ASSY для Yamaha VENTURE 700 - 2002 года выпуска
-
№АртикулНазвание
-
18CH-11631-00-A0 PISTON (STD) (VT700G)PISTON (STD) (VT700G)
-
18DG-11631-00-A0 PISTON (STD) (VT600G)PISTON (STD) (VT600G)
-
28CH-11603-00-00 PISTON RING SET (STD) (VT700G)PISTON RING SET (STD) (VT700G)
-
28DG-11603-00-00 PISTON RING SET (STD) (VT600G)PISTON RING SET (STD) (VT600G)
-
38H8-11633-00-00 PIN, PISTONPIN, PISTON
-
493450-21053-00 CIRCLIPCIRCLIP
-
593310-320S0-00 BEARINGBEARING
-
68CH-11400-11-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
78CH-11412-00-00 ....CRANK 1....CRANK 1
-
88CH-11422-00-00 ....CRANK 2....CRANK 2
-
98CH-11432-00-00 ....CRANK 3....CRANK 3
-
108CH-11442-00-00 ....CRANK 4....CRANK 4
-
118CH-11685-00-00 ....WASHER, CRANK PIN....WASHER, CRANK PIN
-
128CH-11651-00-00 ....ROD, CONNECTING....ROD, CONNECTING
-
1393310-527S9-00 ....BEARING....BEARING
-
1490201-272U2-00 ....WASHER, PLATE....WASHER, PLATE
-
1593306-30715-00 ....BEARING....BEARING
-
1693306-30716-00 ....BEARING....BEARING
-
1793306-28201-00 ....BEARING....BEARING
-
1893306-28202-00 ....BEARING....BEARING
-
1993440-80023-00 ....CIRCLIP....CIRCLIP
-
2093103-45179-00 ....OIL SEAL....OIL SEAL
-
218CH-11478-00-00 ....COLLAR....COLLAR
-
228CH-11515-00-00 ....SEAL, LABYRINTH 1....SEAL, LABYRINTH 1
-
238CH-11434-00-00 ....GEAR, CRANK SHAFT....GEAR, CRANK SHAFT
-
2493390-00023-00 ....BEARING....BEARING
-
2591609-30010-00 ....PIN, SPRING....PIN, SPRING
-
268DF-1142A-01-00 ....BEARING....BEARING
-
2793103-32153-00 OIL SEALOIL SEAL
-
2890280-05033-00 KEY, WOODRUFFKEY, WOODRUFF
-
2990170-16425-00 NUTNUT
-
3092907-16600-00 WASHERWASHER
