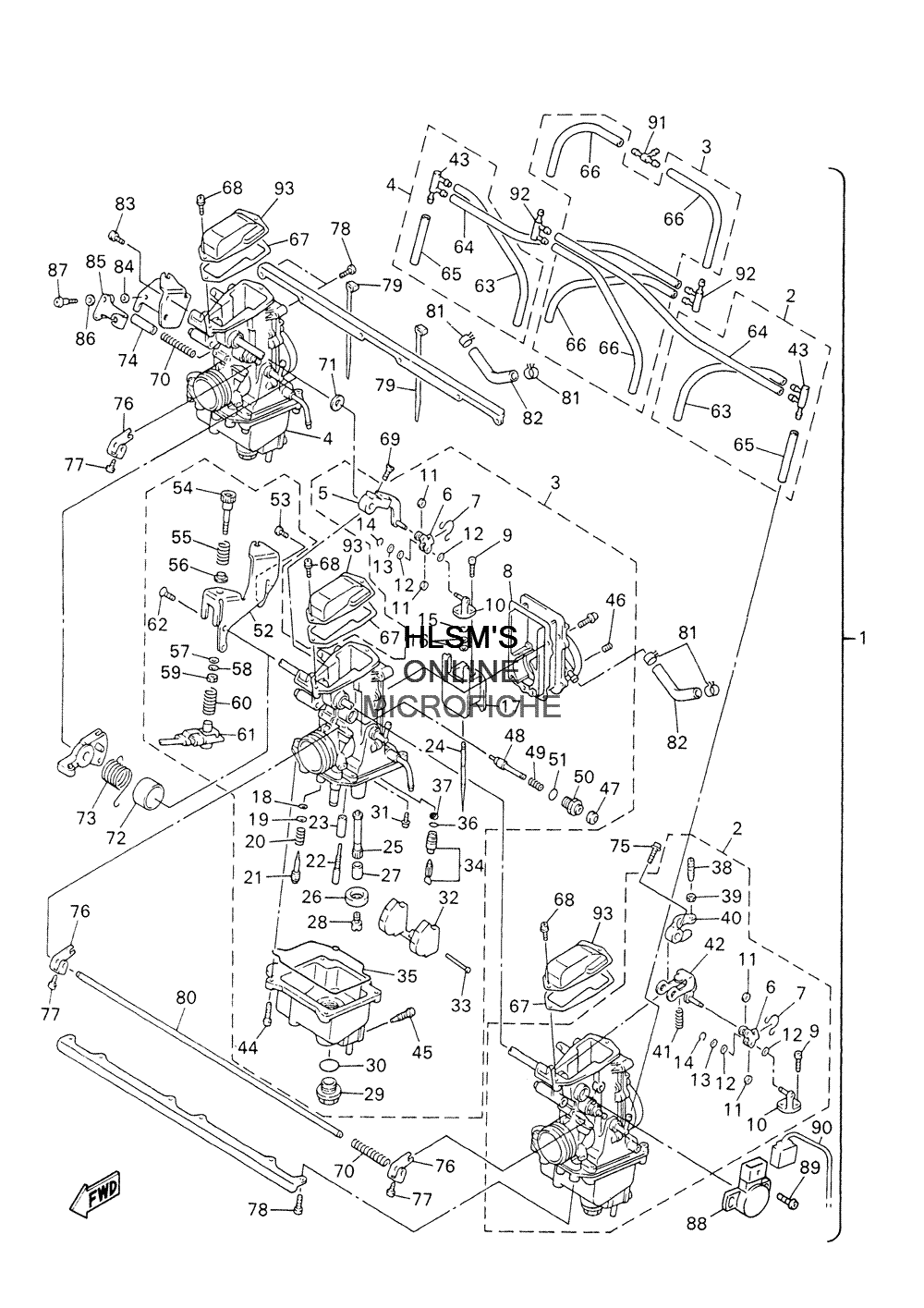

CARBURETOR ASSY для Yamaha SX VIPER S - 2004 года выпуска
-
№АртикулНазвание
-
18EK-14100-10-00 CARBURETOR ASSY.CARBURETOR ASSY.
-
28EK-14101-10-00 ...CARBURETOR ASSY. 1...CARBURETOR ASSY. 1
-
38EK-14102-10-00 ...CARBURETOR ASSY. 2...CARBURETOR ASSY. 2
-
48EK-14103-10-00 ...CARBURETOR ASSY. 3...CARBURETOR ASSY. 3
-
589A-14292-00-00 ......LEVER A (#2)......LEVER A (#2)
-
689A-14243-00-00 ......PLATE......PLATE
-
789A-14137-00-00 ......CLIP......CLIP
-
889A-14199-00-00 ......GASKET......GASKET
-
98CC-14216-00-00 ......SCREW......SCREW
-
1089A-14188-00-00 ......CONNECTOR......CONNECTOR
-
113MA-14918-00-00 ......RING......RING
-
123GF-14126-00-00 ......GASKET......GASKET
-
13620-14198-00-00 ......GASKET......GASKET
-
143MA-14937-00-00 ......CLIP......CLIP
-
153MA-14159-00-00 ......CLIP......CLIP
-
168AB-14227-00-00 ......WASHER (T=0.4MM)......WASHER (T=0.4MM)
-
178EK-14112-15-00 ......VALVE, THROTTLE 1......VALVE, THROTTLE 1
-
183H1-14147-00-00 ......O-RING......O-RING
-
193H1-14962-00-00 ......WASHER......WASHER
-
205K7-14134-00-00 ......SPRING, AIR ADJUSTING......SPRING, AIR ADJUSTING
-
2189A-14565-00-00 ......SCREW, PILOT ADJUSTING......SCREW, PILOT ADJUSTING
-
223H1-14142-45-00 ......JET, PILOT (#45) (STD)......JET, PILOT (#45) (STD)
-
223H1-14142-50-00 ......JET, PILOT (#50) (OPT)......JET, PILOT (#50) (OPT)
-
223H1-14142-55-00 ......JET, PILOT (#55) (OPT)......JET, PILOT (#55) (OPT)
-
223H1-14142-52-00 ......JET, PILOT (#52.5) (OPT)......JET, PILOT (#52.5) (OPT)
-
223H1-14142-47-00 ......JET, PILOT (#47.5) (OPT)......JET, PILOT (#47.5) (OPT)
-
2389A-14996-00-00 ......PIPE......PIPE
-
241T1-14116-A4-00 ......NEEDLE......NEEDLE
-
2589A-14141-48-00 ......NOZZLE, MAIN......NOZZLE, MAIN
-
261LX-14153-00-00 ......WASHER, MAIN JET......WASHER, MAIN JET
-
2789A-14194-00-00 ......RING......RING
-
283G2-14231-32-00 ......JET, MAIN (#160) (OPT)......JET, MAIN (#160) (OPT)
-
283G2-14231-31-00 ......JET, MAIN (#155) (OPT)......JET, MAIN (#155) (OPT)
-
283G2-14231-28-00 ......JET, MAIN (#140) (OPT)......JET, MAIN (#140) (OPT)
-
283G2-14231-29-00 ......JET, MAIN (#145) (OPT)......JET, MAIN (#145) (OPT)
-
283G2-1423A-81-00 ......JET, MAIN (#152.5) (OPT)......JET, MAIN (#152.5) (OPT)
-
283G2-1423E-57-00 ......JET, MAIN (#143.8) (OPT)......JET, MAIN (#143.8) (OPT)
-
283G2-14231-30-00 ......JET, MAIN (#150) (OPT)......JET, MAIN (#150) (OPT)
-
283G2-1423E-55-00 ......JET, MAIN (#138.8) (OPT)......JET, MAIN (#138.8) (OPT)
-
283G2-1423A-82-00 ......JET, MAIN (#157.5) (OPT)......JET, MAIN (#157.5) (OPT)
-
283G2-1423E-60-00 ......JET, MAIN (#151.3) (OPT)......JET, MAIN (#151.3) (OPT)
-
283G2-1423E-61-00 ......JET, MAIN (#153.8) (OPT)......JET, MAIN (#153.8) (OPT)
-
283G2-1423E-59-00 ......JET, MAIN (#148.8) (OPT)......JET, MAIN (#148.8) (OPT)
-
283G2-1423E-58-00 ......JET, MAIN (#146.3) (OPT)......JET, MAIN (#146.3) (OPT)
-
283G2-1423E-62-00 ......JET, MAIN (#156.3) (STD)......JET, MAIN (#156.3) (STD)
-
283G2-1423E-63-00 ......JET, MAIN (#158.8) (OPT)......JET, MAIN (#158.8) (OPT)
-
283G2-1423E-56-00 ......JET, MAIN (#141.3) (OPT)......JET, MAIN (#141.3) (OPT)
-
283G2-1423A-80-00 ......JET, MAIN (#147.5) (OPT)......JET, MAIN (#147.5) (OPT)
-
29500-14115-00-00 ......PLUG, SCREW......PLUG, SCREW
-
30558-14147-00-00 ......O-RING......O-RING
-
312LN-14565-00-00 ......SCREW......SCREW
-
328EK-14185-00-00 ......FLOAT......FLOAT
-
33537-14186-00-00 ......PIN, FLOAT......PIN, FLOAT
-
341AE-14190-13-00 ......NEEDLE VALVE ASSY.......NEEDLE VALVE ASSY.
-
3589A-14147-00-00 ......O-RING......O-RING
-
368F2-14147-00-00 ......O-RING......O-RING
-
371J7-14994-00-00 ......NET, FILTER......NET, FILTER
-
3889A-14216-00-00 ......SCREW (#1,3)......SCREW (#1,3)
-
3995302-05700-00 ......NUT (#1,3)......NUT (#1,3)
-
4089A-14276-00-00 ......LEVER (#1,3)......LEVER (#1,3)
-
4189A-14286-00-00 ......SPRING (#1,3)......SPRING (#1,3)
-
4289A-14905-00-00 ......LEVER, STARTER (#1,3)......LEVER, STARTER (#1,3)
-
438EK-14251-00-00 ......NIPPLE (#1,3)......NIPPLE (#1,3)
-
4498501-04014-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
4512R-14191-00-00 ......PLUG, DRAIN......PLUG, DRAIN
-
46239-14172-10-00 ......PILOT JET, AIR (#1.0)......PILOT JET, AIR (#1.0)
-
47302-14173-00-00 ......COVER, PLUNGER CAP......COVER, PLUNGER CAP
-
488EK-14171-00-00 ......PLUNGER, STARTER......PLUNGER, STARTER
-
491AW-14135-00-00 ......SPRING, PLUNGER......SPRING, PLUNGER
-
501FN-14174-00-00 ......CAP, PLUNGER......CAP, PLUNGER
-
511AE-14147-00-00 ......O-RING......O-RING
-
528CH-14995-00-00 ......BRACKET (#2)......BRACKET (#2)
-
5398502-04010-00 ......SCREW, PAN HEAD (#2)......SCREW, PAN HEAD (#2)
-
548CC-14122-00-00 ......SCREW, THROTTLE (#2)......SCREW, THROTTLE (#2)
-
552J2-14133-00-00 ......SPRING, THROTTLE STOP (#2)......SPRING, THROTTLE STOP (#2)
-
5689A-14265-00-00 ......COLLAR (#2)......COLLAR (#2)
-
5722F-14117-00-00 ......WASHER, PLUG SCREW (#2)......WASHER, PLUG SCREW (#2)
-
581UF-14952-00-00 ......WASHER (#2)......WASHER (#2)
-
5989A-14594-00-00 ......NUT (#2)......NUT (#2)
-
6089A-24529-00-00 ......SPRING (#2)......SPRING (#2)
-
6187S-8259A-00-00 ......SWITCH, CARBURETOR (#2)......SWITCH, CARBURETOR (#2)
-
6298702-05008-00 ......SCREW, FLAT HEAD (#2)......SCREW, FLAT HEAD (#2)
-
638EK-14348-00-00 ......PIPE 1 (#1,3)......PIPE 1 (#1,3)
-
648EK-14349-00-00 ......PIPE (#1,3)......PIPE (#1,3)
-
658CH-14348-00-00 ......PIPE 1 (#1,3)......PIPE 1 (#1,3)
-
668F2-14197-00-00 ......PIPE (#2)......PIPE (#2)
-
6789A-14198-00-00 ...GASKET...GASKET
-
6897605-04110-00 ...SCREW, PAN HEAD WITH WASHER...SCREW, PAN HEAD WITH WASHER
-
6998702-04014-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
701AE-14135-00-00 ...SPRING, PLUNGER...SPRING, PLUNGER
-
713H1-14227-00-00 ...WASHER...WASHER
-
7289A-14264-00-00 ...COLLAR...COLLAR
-
738EX-14589-00-00 ...SPRING...SPRING
-
7489A-14118-00-00 ...CAP...CAP
-
7597602-04116-00 ...SCREW, PAN HEAD WITH WASHER...SCREW, PAN HEAD WITH WASHER
-
7689A-14208-00-00 ...LEVER COMP. 1...LEVER COMP. 1
-
7711H-14991-00-00 ...SCREW...SCREW
-
7898502-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
7935H-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
808CH-14978-00-00 ...SHAFT, STARTER LEVER...SHAFT, STARTER LEVER
-
8190467-10035-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
828CH-14987-10-00 ...HOSE...HOSE
-
8397602-05110-00 ...SCREW, PAN HEAD WITH WASHER...SCREW, PAN HEAD WITH WASHER
-
843FV-14962-00-00 ...WASHER...WASHER
-
8589A-14588-00-00 ...LEVER...LEVER
-
8622F-14117-00-00 ...WASHER, PLUG SCREW...WASHER, PLUG SCREW
-
8722F-14115-00-00 ...PLUG, SCREW...PLUG, SCREW
-
885FL-85885-00-00 ...THROTTLE SENSOR ASSY....THROTTLE SENSOR ASSY.
-
898CC-14216-10-00 ...SCREW...SCREW
-
908DN-82309-00-00 ...WIRE, SUB LEAD...WIRE, SUB LEAD
-
914N0-14251-00-00 ...NIPPLE...NIPPLE
-
928EK-14251-00-00 ...NIPPLE...NIPPLE
-
9389A-24452-00-00 ...COVER...COVER
