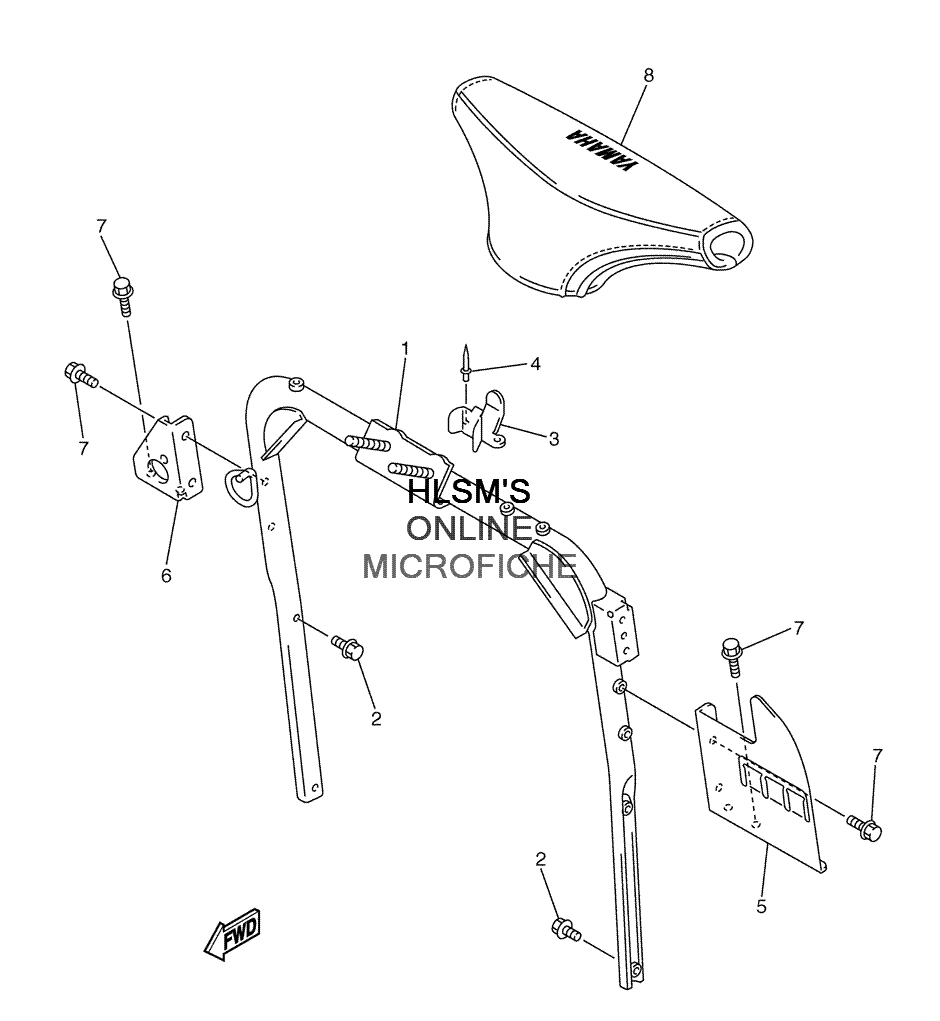

HANDLEBAR PAD W/ STEERING GATE для Yamaha SX VIPER S - 2004 года выпуска
-
№АртикулНазвание
-
18EK-23870-00-00 STEERING GATE COMP.STEERING GATE COMP.
-
295827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
38DF-23867-00-00 HOLDER 2HOLDER 2
-
490267-48095-00 RIVET, BLINDRIVET, BLIND
-
58EK-23882-00-00 BRACKET 2BRACKET 2
-
68CR-23881-00-00 BRACKET 1BRACKET 1
-
795827-06016-00 BOLT, FLANGEBOLT, FLANGE
-
88FE-23815-00-00 PAD, STEERINGPAD, STEERING
