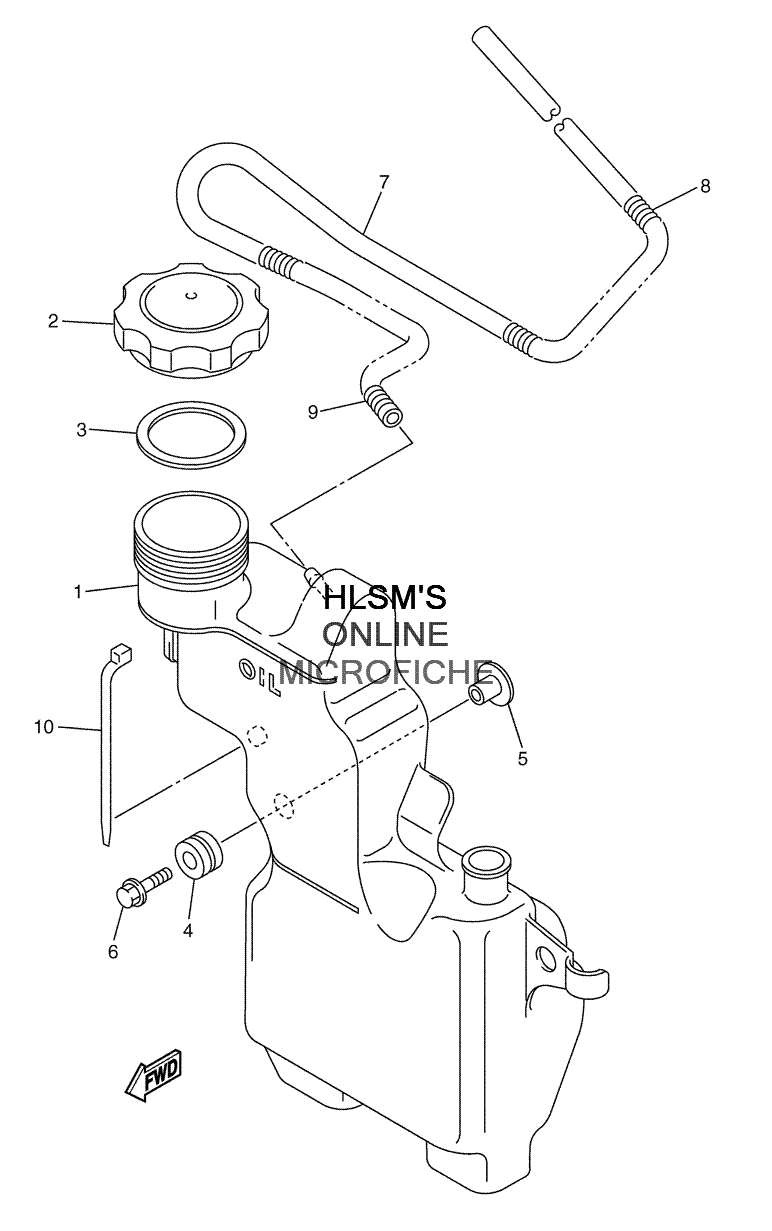

OIL TANK ASSY для Yamaha SX VIPER S - 2004 года выпуска
-
№АртикулНазвание
-
18EK-21751-00-00 TANK, OILTANK, OIL
-
28EK-21771-00-00 BODY, CAPBODY, CAP
-
38EK-21772-00-00 GASKET, CAPGASKET, CAP
-
490480-14101-00 GROMMETGROMMET
-
590387-063G3-00 COLLARCOLLAR
-
695827-06025-00 BOLT, FLANGEBOLT, FLANGE
-
791A30-05085-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
890501-08430-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
990501-08486-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1090464-13073-00 CLAMPCLAMP
