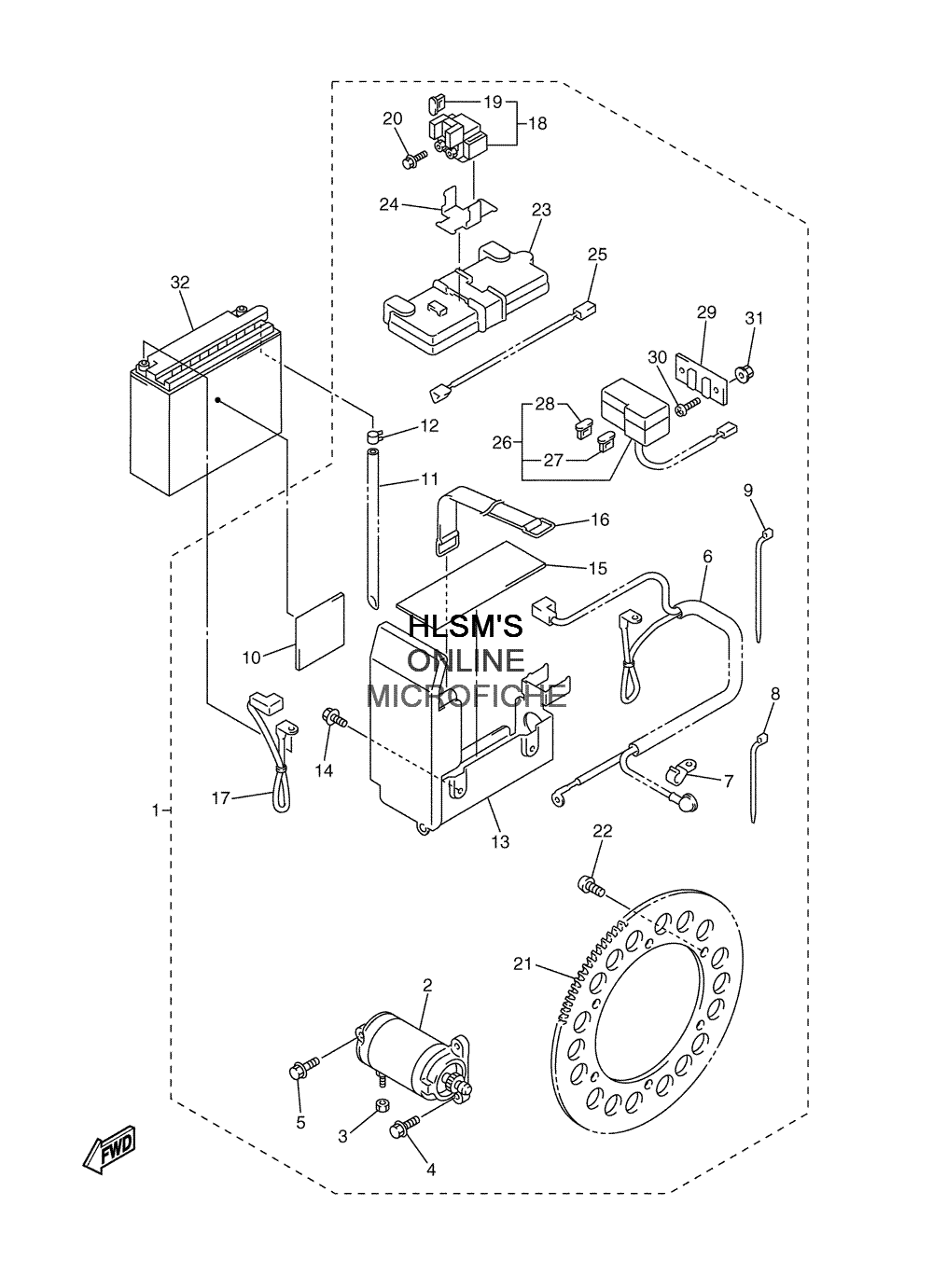

STARTER - ELECTRICAL STARTER KIT W/ BATTERY AND STARTER (OPTION) для Yamaha SX VIPER S - 2004 года выпуска
-
№АртикулНазвание
-
18EK-W8180-01-00 ELECTRIC STARTER KITELECTRIC STARTER KIT
-
28CW-81800-01-00 ...STARTING MOTOR ASSY....STARTING MOTOR ASSY.
-
395307-06600-00 ...NUT...NUT
-
495027-08030-00 ...BOLT, FLANGE...BOLT, FLANGE
-
595027-08080-00 ...BOLT, FLANGE...BOLT, FLANGE
-
68EK-82105-00-00 ...WIRE HARNESS...WIRE HARNESS
-
790462-08016-00 ...CLAMP...CLAMP
-
890464-13073-00 ...CLAMP...CLAMP
-
990464-15195-00 ...CLAMP...CLAMP
-
108CW-82176-00-00 ...DAMPER...DAMPER
-
118CW-8235W-01-00 ...PIPE...PIPE
-
1290467-08092-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
138FB-8212X-00-00 ...BATTERY BOX COMP....BATTERY BOX COMP.
-
1490109-06513-00 ...BOLT...BOLT
-
158DM-82122-00-00 ...SEAT, BATTERY...SEAT, BATTERY
-
168DM-82131-10-00 ...BAND, BATTERY...BAND, BATTERY
-
178DY-82115-00-00 ...WIRE, PLUS LEAD...WIRE, PLUS LEAD
-
184BH-81940-00-00 ...STARTER RELAY ASSY....STARTER RELAY ASSY.
-
191AE-82151-00-00 ......FUSE (30A-BL)......FUSE (30A-BL)
-
2095027-06008-00 ...BOLT, FLANGE...BOLT, FLANGE
-
218DM-1760A-18-00 ...GEAR 1...GEAR 1
-
2290150-08008-00 ...SCREW, ROUND HEAD...SCREW, ROUND HEAD
-
238DM-82129-01-00 ...COVER, BATTERY...COVER, BATTERY
-
248CY-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
258EK-82541-00-00 ...WIRE, LEAD...WIRE, LEAD
-
268EK-82170-00-00 ...FUSE BOX ASSY....FUSE BOX ASSY.
-
275JJ-82151-30-00 ......FUSE (10A-BL)......FUSE (10A-BL)
-
285JJ-82151-20-00 ......FUSE (20A-BL)......FUSE (20A-BL)
-
29JT1-83614-00-00 ...BRACKET...BRACKET
-
3098907-06014-00 ...SCREW, BIND...SCREW, BIND
-
3195607-06200-00 ...NUT, SELF U-FLANGE...NUT, SELF U-FLANGE
-
3211K-82110-62-00 BATTERY ASSY. (GM18Z-3A)BATTERY ASSY. (GM18Z-3A)
