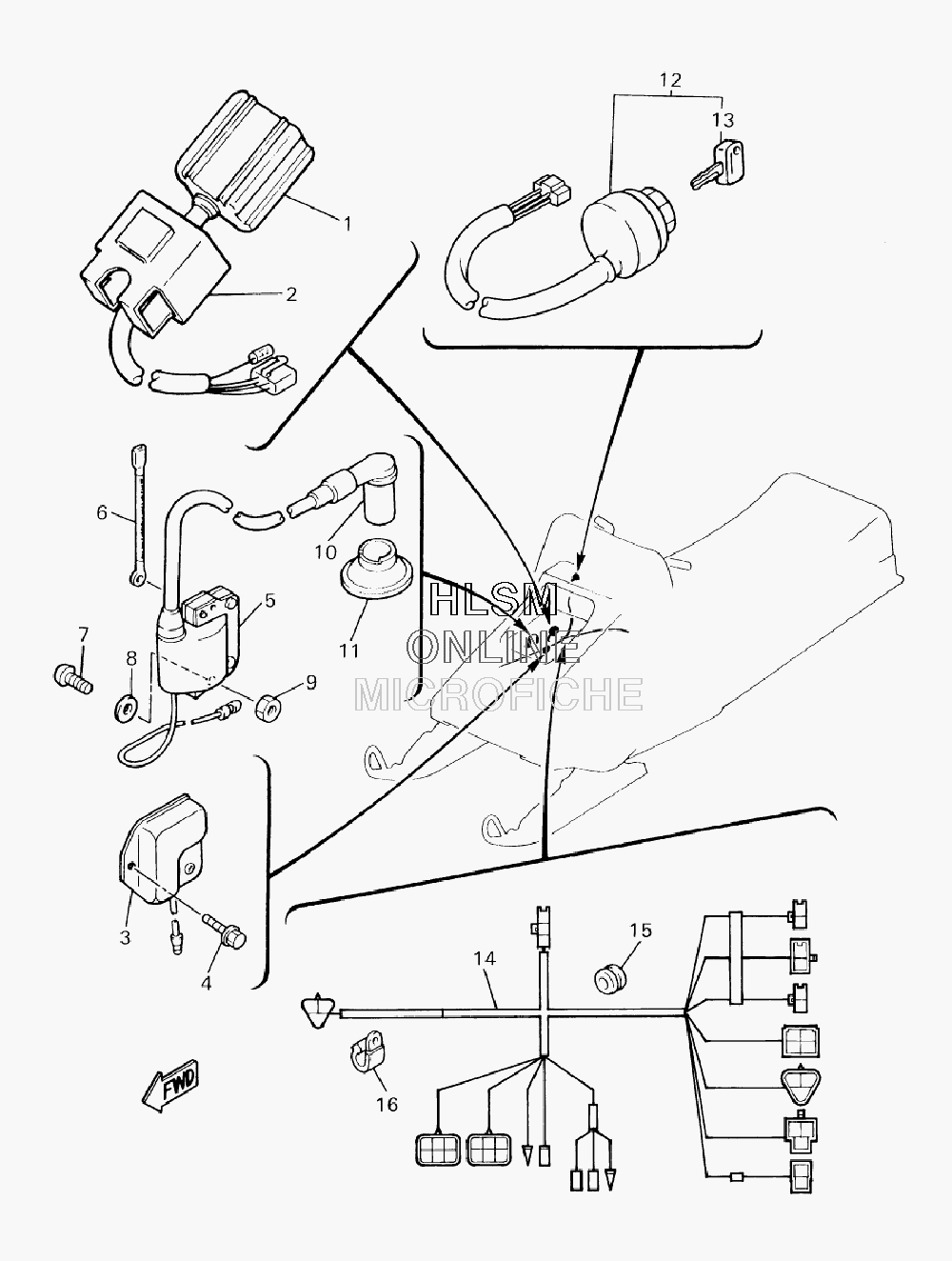

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha BRAVO T - 2009 года выпуска
-
№АртикулНазвание
-
18AU-85540-00-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
22A7-85546-00-00 BANDBAND
-
382M-81910-A0-00 VOLTAGE REGULATOR ASSYVOLTAGE REGULATOR ASSY
-
495807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
586B-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
683Y-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
797880-06040-00 SCREW, PAN HEADSCREW, PAN HEAD
-
892990-06600-00 WASHER, PLATEWASHER, PLATE
-
995307-06600-00 NUTNUT
-
108K1-82370-20-00 PLUG CAP ASSY (WITH RESISTOR)PLUG CAP ASSY (WITH RESISTOR)
-
118G5-82372-00-00 SEAL, PLUG CAPSEAL, PLUG CAP
-
128R4-82510-20-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
13526-82579-00-00 ...CAP, KEY...CAP, KEY
-
148BD-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
1590480-16422-00 GROMMETGROMMET
-
1690465-08028-00 CLAMPCLAMP
