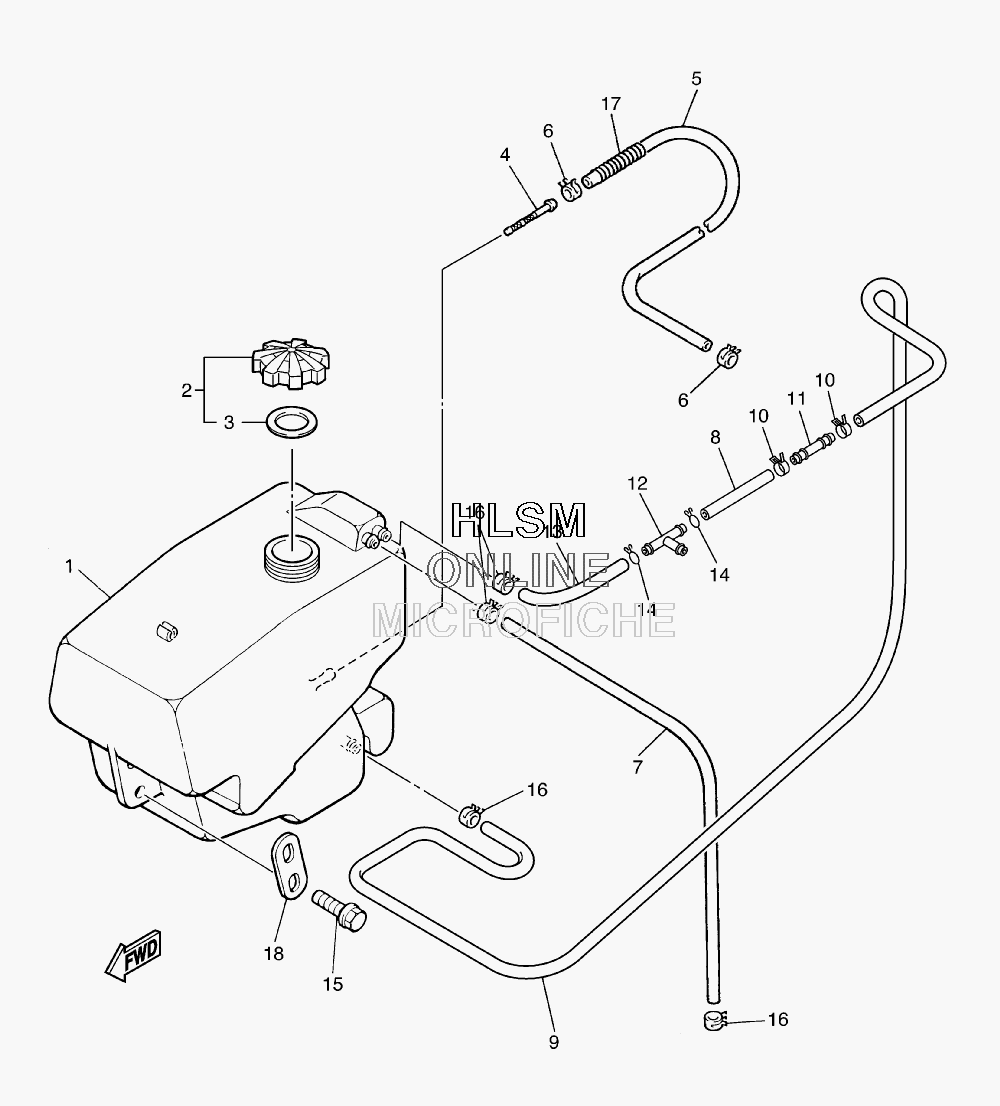

FUEL TANK ASSY для Yamaha BRAVO T - 2009 года выпуска
-
№АртикулНазвание
-
18R4-24111-10-00 TANK, FUELTANK, FUEL
-
28BD-24610-10-00 CAP ASSYCAP ASSY
-
38BD-24641-10-00 ...GASKET, CAP 1...GASKET, CAP 1
-
422F-24514-01-00 NET, FILTER 1NET, FILTER 1
-
590445-11051-00 HOSEHOSE
-
690467-11028-00 CLIP, SCISSORCLIP, SCISSOR
-
791A20-05140-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
890445-09029-00 HOSEHOSE
-
990445-09031-00 HOSEHOSE
-
1090468-02078-00 CLIPCLIP
-
118BD-24179-00-00 GAUGE, FUELGAUGE, FUEL
-
12801-24376-00-00 PIPE, JOINT 1PIPE, JOINT 1
-
1390445-09030-00 HOSEHOSE
-
1490467-08017-00 CLIP, SCISSORCLIP, SCISSOR
-
1590105-08688-00 BOLT, FLANGEBOLT, FLANGE
-
1690467-09026-00 CLIP, SCISSORCLIP, SCISSOR
-
178F3-24327-00-00 PROTECTOR, PIPEPROTECTOR, PIPE
-
188R4-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
