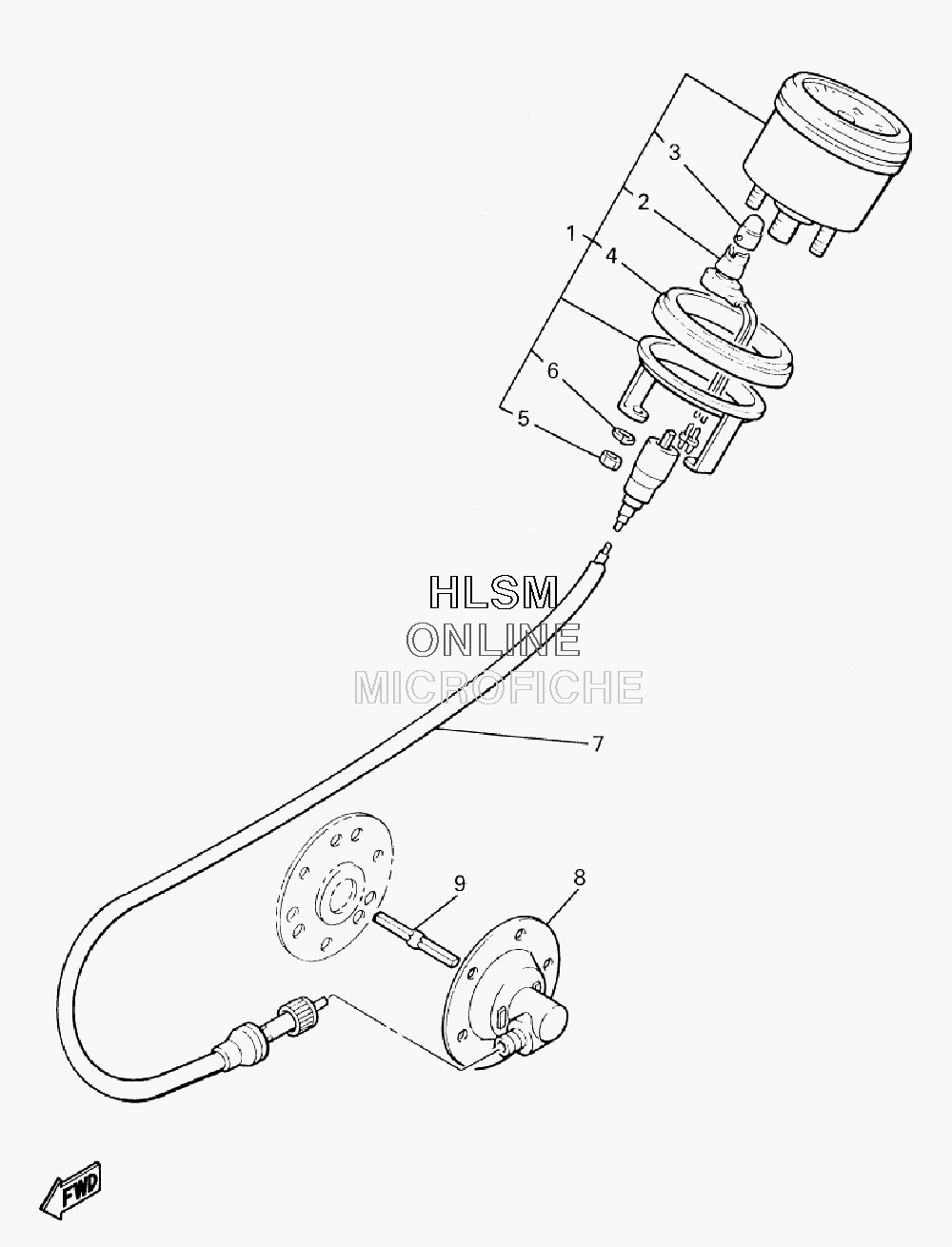

ELECTRICAL - INSTRUMENTS для Yamaha BRAVO T - 2009 года выпуска`
-
№АртикулНазвание
-
180V-83510-40-00 SPEEDOMETER ASSY (MILE/H)SPEEDOMETER ASSY (MILE/H)
-
28V7-83536-40-00 ...SOCKET, METER...SOCKET, METER
-
34R0-83517-00-00 ...BULB (12V-3.4W T10)...BULB (12V-3.4W T10)
-
48G6-83523-00-00 ...DAMPER...DAMPER
-
595307-05600-00 ...NUT...NUT
-
692907-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
78Y8-83550-00-00 SPEEDOMETER CABLE ASSYSPEEDOMETER CABLE ASSY
-
88Y1-47700-00-00 METER GEAR HOUSING COMP.METER GEAR HOUSING COMP.
-
98K4-47715-00-00 JOINTJOINT
