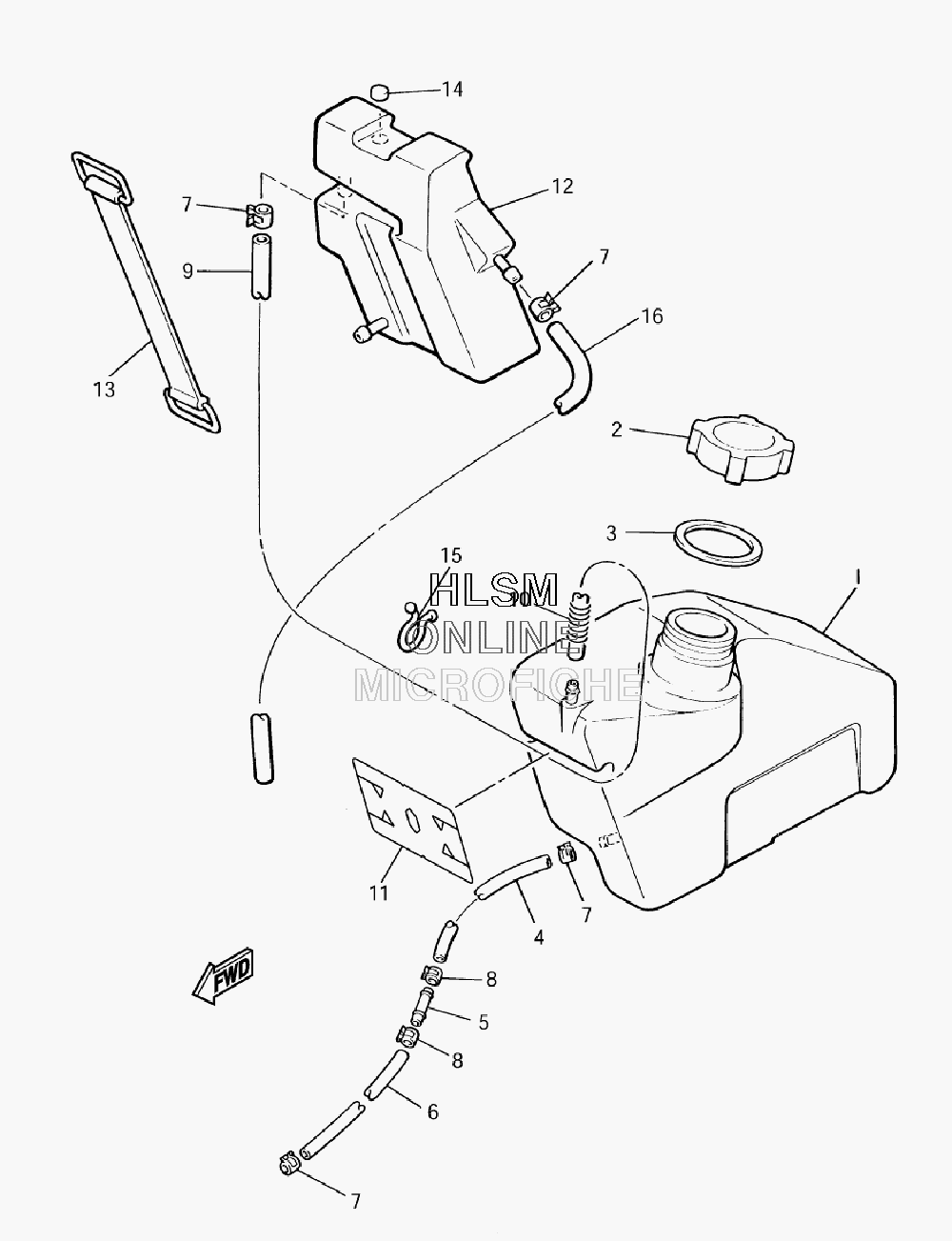

OIL TANK ASSY для Yamaha BRAVO T - 2009 года выпуска
-
№АртикулНазвание
-
18R4-21751-00-00 TANK, OILTANK, OIL
-
2863-21771-00-00 BODY, CAPBODY, CAP
-
390430-31003-00 GASKETGASKET
-
491A30-05045-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
58H8-24376-00-00 PIPE, JOINT 1PIPE, JOINT 1
-
691A30-05024-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
790467-09026-00 CLIP, SCISSORCLIP, SCISSOR
-
890467-08017-00 CLIP, SCISSORCLIP, SCISSOR
-
990446-09003-00 HOSEHOSE
-
1090501-083J8-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
118BD-2173T-00-00 TAPE 1TAPE 1
-
128V7-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
138V7-21776-00-00 BAND, TANK FITTINGBAND, TANK FITTING
-
1490338-10132-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
1590464-16039-00 CLAMPCLAMP
-
1691A20-05045-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
