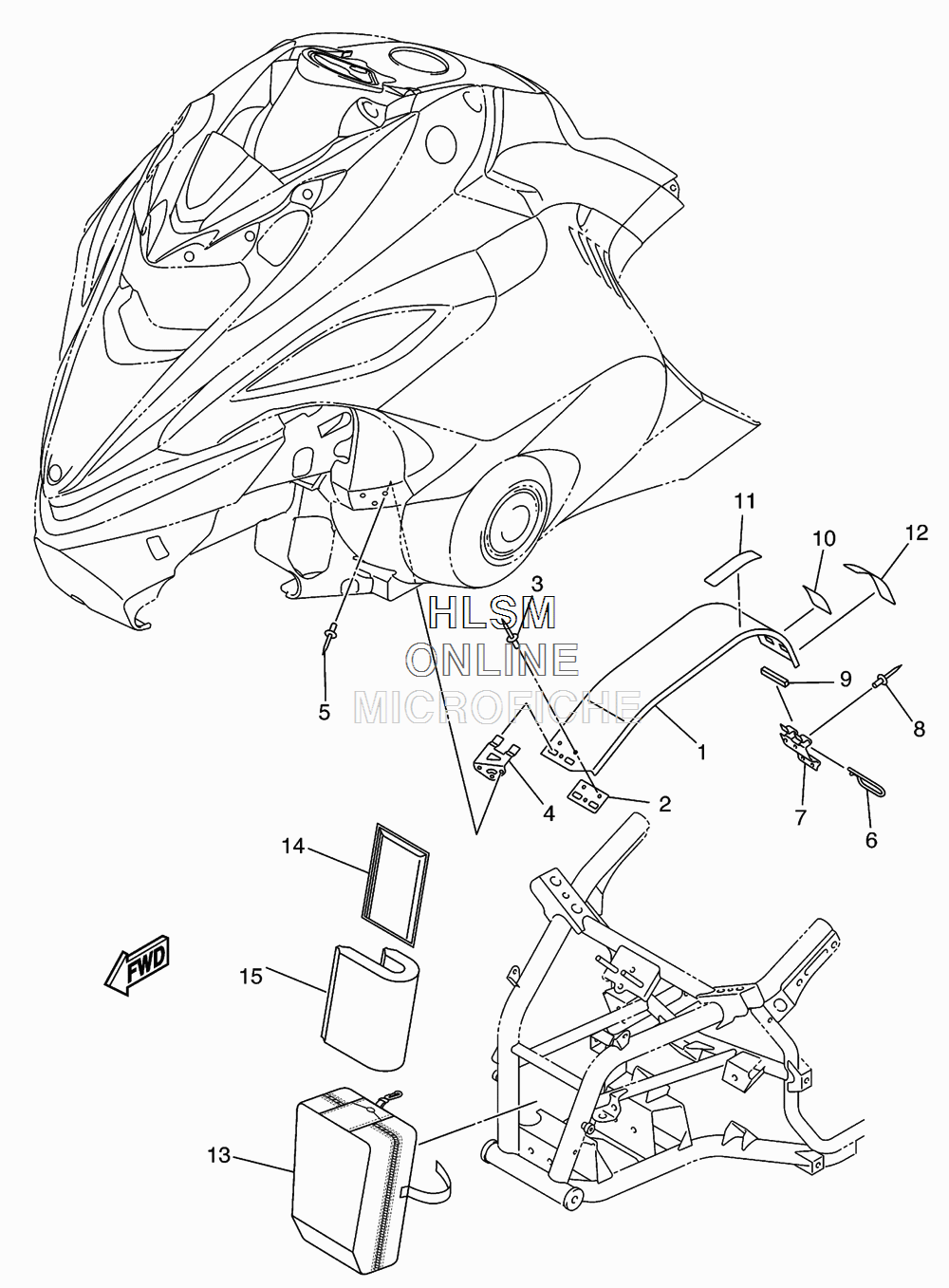

DRIVE GUARD W/ LUGGAGE BOX для Yamaha FX NYTRO RTX SE - 2010 года выпуска
-
№АртикулНазвание
-
18GL-77311-00-00 GUARD, DRIVEGUARD, DRIVE
-
28FP-77373-00-00 PROTECTORPROTECTOR
-
390267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
48GL-77314-00-00 ARM, FITTINGARM, FITTING
-
590267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
68GL-77384-00-00 PINPIN
-
78GL-77397-00-00 STAY 1STAY 1
-
890267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
98GL-77319-00-00 DAMPER 1DAMPER 1
-
108BD-77762-00-00 LABEL, WARNING 2LABEL, WARNING 2
-
118GL-1417E-00-00 LABEL, CAUTIONLABEL, CAUTION
-
128HA-47578-00-00 LABEL 1LABEL 1
-
138GL-2811E-00-00 BAGBAG
-
148GL-28100-10-00 TOOL KITTOOL KIT
-
158GC-28186-00-00 POUCHPOUCH
