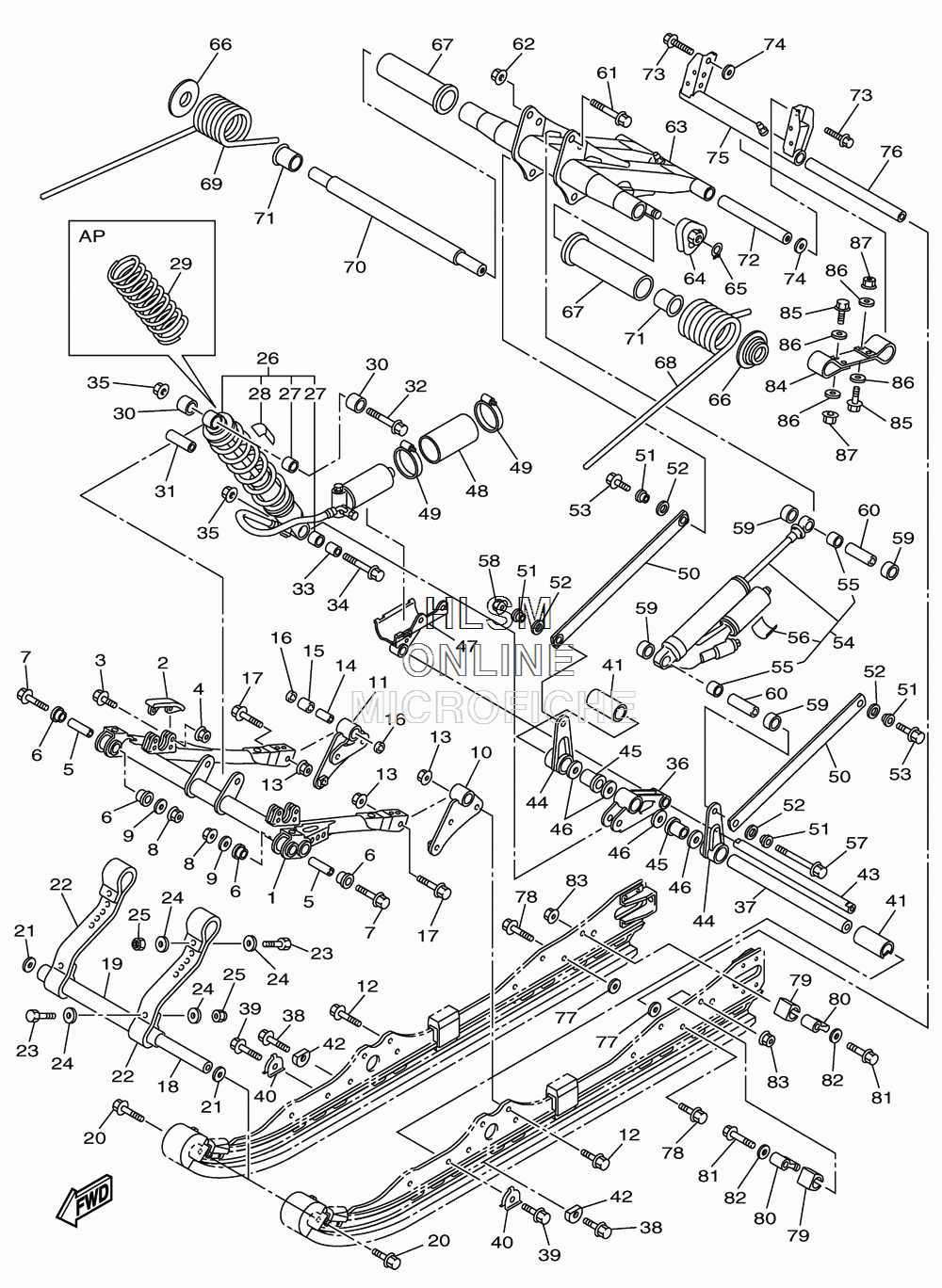

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha FX NYTRO RTX SE - 2010 года выпуска
-
№АртикулНазвание
-
18HK-47331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
28F3-47422-10-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
390105-06164-00 BOLT, FLANGEBOLT, FLANGE
-
495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
58GL-47465-00-00 SHAFT 1SHAFT 1
-
690381-18068-00 BUSH, SOLIDBUSH, SOLID
-
790105-10135-00 BOLT, FLANGEBOLT, FLANGE
-
895602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
990201-10046-00 WASHER, PLATEWASHER, PLATE
-
108GL-47415-00-00 BRACKET 1BRACKET 1
-
118GL-47418-00-00 BRACKET 4BRACKET 4
-
1295812-10025-00 BOLT, FLANGEBOLT, FLANGE
-
1395602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1490387-1012A-00 COLLARCOLLAR
-
1593315-31758-00 BEARINGBEARING
-
1693109-17071-00 OIL SEALOIL SEAL
-
1795812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
188FU-47485-00-00 SHAFT 3SHAFT 3
-
1990387-20002-00 COLLARCOLLAR
-
2090105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
2190201-10126-00 WASHER, PLATEWASHER, PLATE
-
228HK-47495-00-00 STOPPER 1STOPPER 1
-
2397002-06025-00 BOLTBOLT
-
2490201-06036-00 WASHER, PLATEWASHER, PLATE
-
2595702-06300-00 NUT, NYLONNUT, NYLON
-
268HB-47481-30-00 SHOCK ABSORBER 2SHOCK ABSORBER 2
-
2790384-17N50-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
284AA-22259-70-00 LABEL, WARNINGLABEL, WARNING
-
298HB-47336-10-00 SPRING.,2 (K=30N/MM)SPRING.,2 (K=30N/MM)
-
308FU-47341-00-00 SPACERSPACER
-
3190387-10034-00 COLLARCOLLAR
-
3290105-10335-00 BOLT, FLANGEBOLT, FLANGE
-
3390387-10064-00 COLLARCOLLAR
-
3495812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
3595602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
368GL-47349-00-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
378GL-47487-00-00 SHAFT 5SHAFT 5
-
3895817-10030-00 BOLT, FLANGEBOLT, FLANGE
-
3990105-10332-00 BOLT, FLANGEBOLT, FLANGE
-
408GL-47384-00-00 WASHERWASHER
-
4190387-26010-00 COLLARCOLLAR
-
428GL-47341-00-00 SPACERSPACER
-
438GL-47486-00-00 SHAFT 4SHAFT 4
-
448GL-47416-00-00 BRACKET 2BRACKET 2
-
4590386-25002-00 BUSHBUSH
-
4690201-256E4-00 WASHER, PLATE (T=1.5)WASHER, PLATE (T=1.5)
-
478HB-4748A-00-00 HOLDER, ABSORBERHOLDER, ABSORBER
-
488HB-4748B-00-00 BRACKETBRACKET
-
4990450-60001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
508GL-47490-00-00 RELAY ROD ASSYRELAY ROD ASSY
-
518HR-47366-10-00 COLLAR 2COLLAR 2
-
5290201-16027-00 WASHER, PLATEWASHER, PLATE
-
5390105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
548HK-47480-30-00 SHOCK ABSORBERSHOCK ABSORBER
-
5590384-17N50-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
564AA-22259-70-00 LABEL, WARNINGLABEL, WARNING
-
5790105-10375-00 BOLT, FLANGEBOLT, FLANGE
-
5895602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
598FU-47341-00-00 SPACERSPACER
-
6090387-10034-00 COLLARCOLLAR
-
6190105-10335-00 BOLT, FLANGEBOLT, FLANGE
-
6295602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
638HK-47332-00-00 ARM, PIVOT 2ARM, PIVOT 2
-
648ES-47447-00-00 HOOK 2HOOK 2
-
6599009-14400-00 CIRCLIPCIRCLIP
-
668ES-47467-00-00 PLATE, GUIDEPLATE, GUIDE
-
678HK-47445-00-00 PROTECTORPROTECTOR
-
688GL-47473-00-00 SPRING, REAR 1(K=1900NMM/DEG)SPRING, REAR 1(K=1900NMM/DEG)
-
688GL-47473-10-00 SPRING, REAR 1(K=2100NMM/DEG)SPRING, REAR 1(K=2100NMM/DEG)
-
688GL-47473-20-00 SPRING, REAR 1(K=1400NMM/DEG)SPRING, REAR 1(K=1400NMM/DEG)
-
698GL-47474-00-00 SPRING, REAR 2(K=1900NMM/DEG)SPRING, REAR 2(K=1900NMM/DEG)
-
698GL-47474-10-00 SPRING, REAR 2(K=2100NMM/DEG)SPRING, REAR 2(K=2100NMM/DEG)
-
698GL-47474-20-00 SPRING, REAR 2(K=1400NMM/DEG)SPRING, REAR 2(K=1400NMM/DEG)
-
708GL-47475-00-00 SHAFT 2SHAFT 2
-
7190381-28108-00 BUSH, SOLIDBUSH, SOLID
-
728GC-47488-00-00 SHAFT 6SHAFT 6
-
7390105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
7490201-19008-00 WASHER, PLATEWASHER, PLATE
-
758GC-47417-10-00 BRACKET 3BRACKET 3
-
768FU-47485-00-00 SHAFT 3SHAFT 3
-
7790201-10136-00 WASHER, PLATEWASHER, PLATE
-
7890105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
798GC-47496-00-00 STOPPER 2STOPPER 2
-
808GN-47338-00-00 COLLARCOLLAR
-
8197012-10050-00 BOLTBOLT
-
8290201-10061-00 WASHER, PLATEWASHER, PLATE
-
8395602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
848GL-47496-10-00 STOPPER 2STOPPER 2
-
8597002-06025-00 BOLTBOLT
-
8690201-06036-00 WASHER, PLATEWASHER, PLATE
-
8795702-06300-00 NUT, NYLONNUT, NYLON
