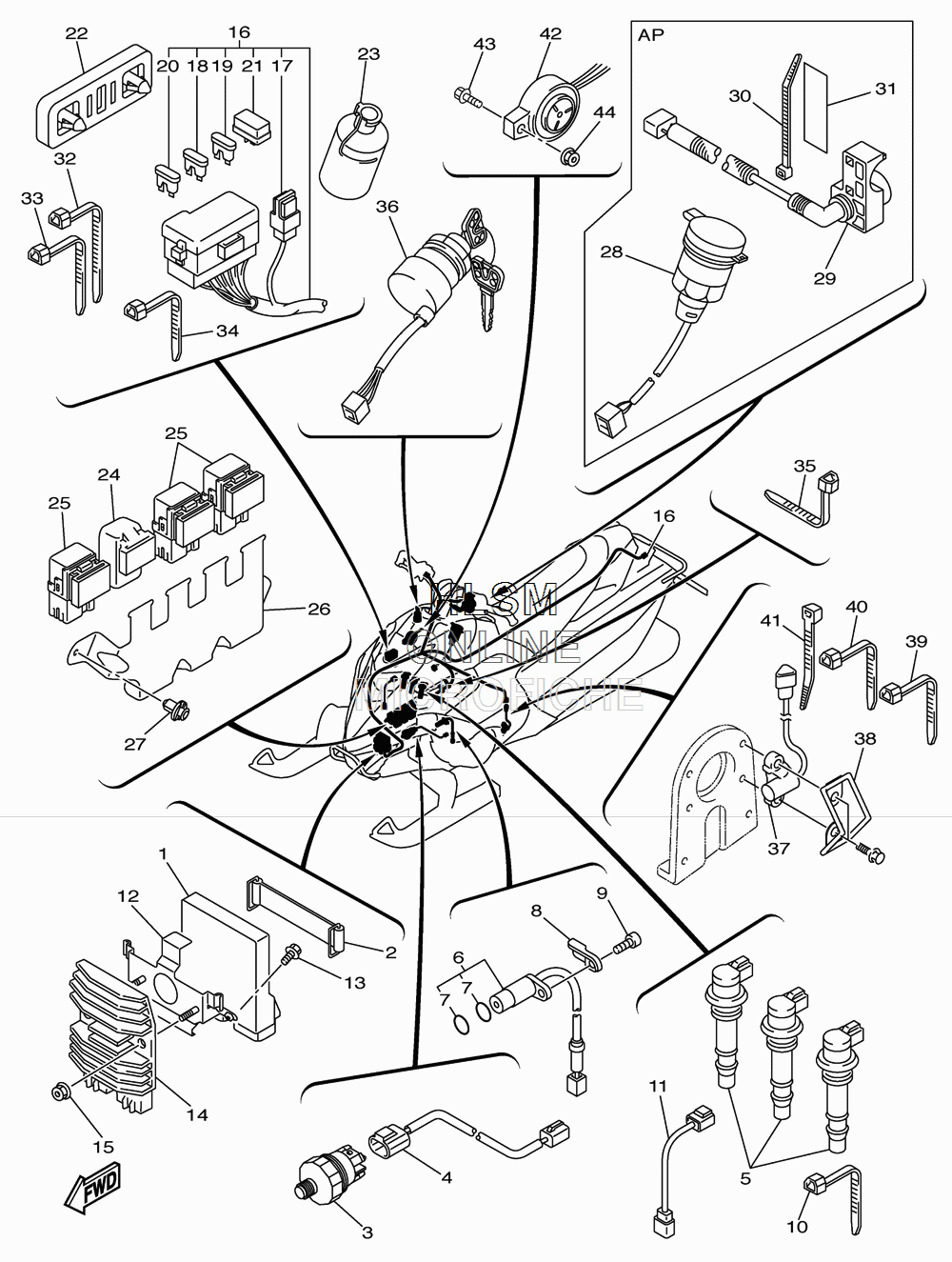

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha FX NYTRO RTX SE - 2010 года выпуска
-
№АртикулНазвание
-
18GL-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
22T4-82131-00-00 BAND, BATTERYBAND, BATTERY
-
38FP-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
48GL-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
58ES-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
68GL-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
75VY-8A8E1-00-00 O-RING 1O-RING 1
-
85VY-15589-02-00 PLATEPLATE
-
990110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1090464-13073-00 CLAMPCLAMP
-
118GL-81515-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
128GL-85991-00-00 BRACKET, UNITBRACKET, UNIT
-
1395022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
141D7-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
1595602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
168HK-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
175PS-82151-00-00 FUSE (40A)FUSE (40A)
-
185JJ-82151-30-00 FUSE (10A-BL)FUSE (10A-BL)
-
195JJ-82151-20-00 FUSE (20A-BL)FUSE (20A-BL)
-
205JJ-82151-50-00 FUSE (3A-BL)FUSE (3A-BL)
-
214WA-81980-00-00 DIODE ASSYDIODE ASSY
-
228FA-83614-00-00 BRACKETBRACKET
-
238GL-8252U-00-00 COVERCOVER
-
245DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
258FP-81950-01-00 RELAY ASSYRELAY ASSY
-
268GL-81952-00-00 HOLDER, RELAYHOLDER, RELAY
-
2790269-08006-00 RIVETRIVET
-
288FP-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
298HK-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
3090464-35132-00 CLAMPCLAMP
-
318HF-84527-00-00 DAMPERDAMPER
-
3290464-15195-00 CLAMPCLAMP
-
3390464-13073-00 CLAMPCLAMP
-
3490464-13077-00 CLAMPCLAMP
-
3590464-12045-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
368GL-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
378GL-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
388GC-2198G-00-00 COVER 2COVER 2
-
3990464-13073-00 CLAMPCLAMP
-
4090464-35132-00 CLAMPCLAMP
-
4190464-15195-00 CLAMPCLAMP
-
428GL-83383-00-00 BUZZERBUZZER
-
4390159-05035-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
4495702-05500-00 NUT, FLANGENUT, FLANGE
