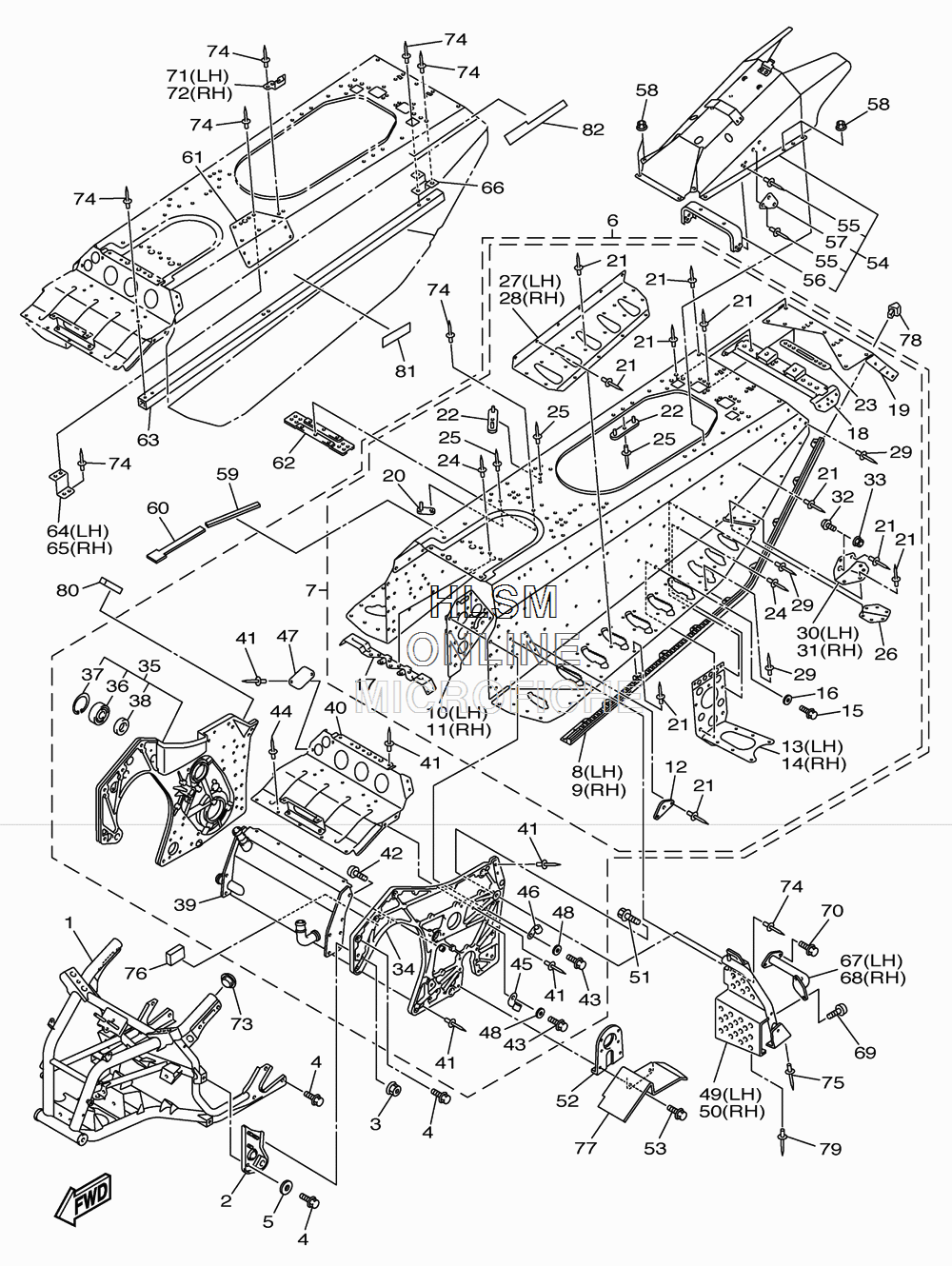

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha FX NYTRO RTX SE - 2010 года выпуска
-
№АртикулНазвание
-
18GL-21940-02-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28GL-2194E-00-00 BRACKET, ENGINEBRACKET, ENGINE
-
390185-08054-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
495827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
590201-086A3-00 WASHER, PLATEWASHER, PLATE
-
68HK-21950-01-00 REAR FRAME COMP.REAR FRAME COMP.
-
78HK-21950-09-00 REAR FRAME COMP.REAR FRAME COMP.
-
88HK-21926-00-00 REINFORCEMENT, FOOTREST 1REINFORCEMENT, FOOTREST 1
-
98HK-21936-00-00 REINFORCEMENT, FOOTREST 2REINFORCEMENT, FOOTREST 2
-
108GL-21943-00-00 BRACKET, MAIN TRACK 1BRACKET, MAIN TRACK 1
-
118GL-21953-00-00 BRACKET, MAIN TRACK 2BRACKET, MAIN TRACK 2
-
128FU-21919-00-00 BRACKET, MAIN TRACK 3BRACKET, MAIN TRACK 3
-
138HK-21944-00-00 BRACKET, RR.TRACK SUSPENTBRACKET, RR.TRACK SUSPENT
-
148HK-21954-00-00 BRACKET, RR.TRACK SUSPENTBRACKET, RR.TRACK SUSPENT
-
1595812-10020-00 BOLT, FLANGEBOLT, FLANGE
-
1690201-10035-00 WASHER, PLATEWASHER, PLATE
-
178GL-2194H-00-00 PROTECTOR, MUFFLERPROTECTOR, MUFFLER
-
188GL-2197N-00-00 BRACKET 7BRACKET 7
-
198GL-21923-00-00 REINEFORCEMENT, FRAME REAREINEFORCEMENT, FRAME REA
-
208CR-2194N-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
2190267-47195-00 RIVET, BLIND(4.7X16.4 YELLOW)RIVET, BLIND(4.7X16.4 YELLOW)
-
228GL-22512-00-00 BRACKET 8BRACKET 8
-
238GL-21295-00-00 NUTNUT
-
2490267-48010-00 RIVET, BLIND (4.8X12 YELLOW)RIVET, BLIND (4.8X12 YELLOW)
-
2590267-48023-00 RIVET, BLIND (4.8X12.1 YELLOW)RIVET, BLIND (4.8X12.1 YELLOW)
-
268HK-21961-00-00 PATCH 1PATCH 1
-
278HK-21963-00-00 PATCH 3PATCH 3
-
288HK-21964-00-00 PATCH 4PATCH 4
-
2990267-48016-00 RIVET, BLIND (4.8X16.4 YELLOW)RIVET, BLIND (4.8X16.4 YELLOW)
-
308HK-21965-00-00 PATCH 5PATCH 5
-
318HK-21966-00-00 PATCH 6PATCH 6
-
3292012-10016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3390176-10075-00 NUT, CROWNNUT, CROWN
-
348GL-21925-00-00 REINF., HOUSING 1REINF., HOUSING 1
-
358GL-21930-00-00 HOUSING, REINF SUB-ASSY(R.H)HOUSING, REINF SUB-ASSY(R.H)
-
3693306-20601-00 BEARINGBEARING
-
3799009-62500-00 CIRCLIPCIRCLIP
-
3893102-30012-00 OIL SEALOIL SEAL
-
398GL-12440-00-00 HEAT EXCHANGER ASSYHEAT EXCHANGER ASSY
-
408GL-21915-00-00 PANEL, SUB FRAME 4PANEL, SUB FRAME 4
-
4190267-47195-00 RIVET, BLIND(4.7X16.4 YELLOW)RIVET, BLIND(4.7X16.4 YELLOW)
-
4292012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4397012-08016-00 BOLTBOLT
-
4490267-48010-00 RIVET, BLIND (4.8X12 YELLOW)RIVET, BLIND (4.8X12 YELLOW)
-
4590462-08061-00 CLAMPCLAMP
-
4690462-08064-00 CLAMPCLAMP
-
478GL-2131D-00-00 PLATE, COVERPLATE, COVER
-
4890201-08512-00 WASHER, PLATEWASHER, PLATE
-
498GL-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
508GL-21970-01-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
5195827-10030-00 BOLT, FLANGEBOLT, FLANGE
-
528GL-21920-00-00 HOUSING, REINF SUB-ASSY(L.H)HOUSING, REINF SUB-ASSY(L.H)
-
5395812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
548GL-21916-00-00 PANEL, SUB FRAME 5PANEL, SUB FRAME 5
-
5590267-47195-00 RIVET, BLIND(4.7X16.4 YELLOW)RIVET, BLIND(4.7X16.4 YELLOW)
-
568GL-2194L-00-00 STAY, MUFFERSTAY, MUFFER
-
578GL-21946-00-00 BRACKET, SEAT FITTINGBRACKET, SEAT FITTING
-
5890176-06016-00 NUT, CAPNUT, CAP
-
598GL-22151-00-00 SEAL, GUARDSEAL, GUARD
-
608GL-22152-00-00 SEAL, GUARDSEAL, GUARD
-
618GL-21967-00-00 PATCH 7PATCH 7
-
628GL-21988-00-00 PATCH 8PATCH 8
-
638GL-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
648GL-2196M-00-00 BRACKET, 5BRACKET, 5
-
658GL-2197M-00-00 BRACKET, 6BRACKET, 6
-
668GL-21443-00-00 BRACKET, PROTECTOR REARBRACKET, PROTECTOR REAR
-
678GL-27471-00-00 BAR, FOOTREST 1BAR, FOOTREST 1
-
688GL-27472-00-00 BAR, FOOTREST 2BAR, FOOTREST 2
-
6992012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
7095812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
718GL-21151-00-00 BRACKET, REAR FENDER 1BRACKET, REAR FENDER 1
-
728GL-21152-00-00 BRACKET, REAR FENDER 2BRACKET, REAR FENDER 2
-
73180-22117-00-00 CAPCAP
-
7490267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
7590267-48016-00 RIVET, BLIND (4.8X16.4 YELLOW)RIVET, BLIND (4.8X16.4 YELLOW)
-
768GL-21852-00-00 DAMPERDAMPER
-
778GL-2197B-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
788FS-2312G-00-00 PLUGPLUG
-
7990267-48023-00 RIVET, BLIND (4.8X12.1 YELLOW)RIVET, BLIND (4.8X12.1 YELLOW)
-
8090520-10003-00 DAMPER, PLATEDAMPER, PLATE
-
818GL-2179D-20-00 PLATE, EPA OFFROAD 2PLATE, EPA OFFROAD 2
-
828GL-2199A-30-00 GRAPHIC 1GRAPHIC 1
