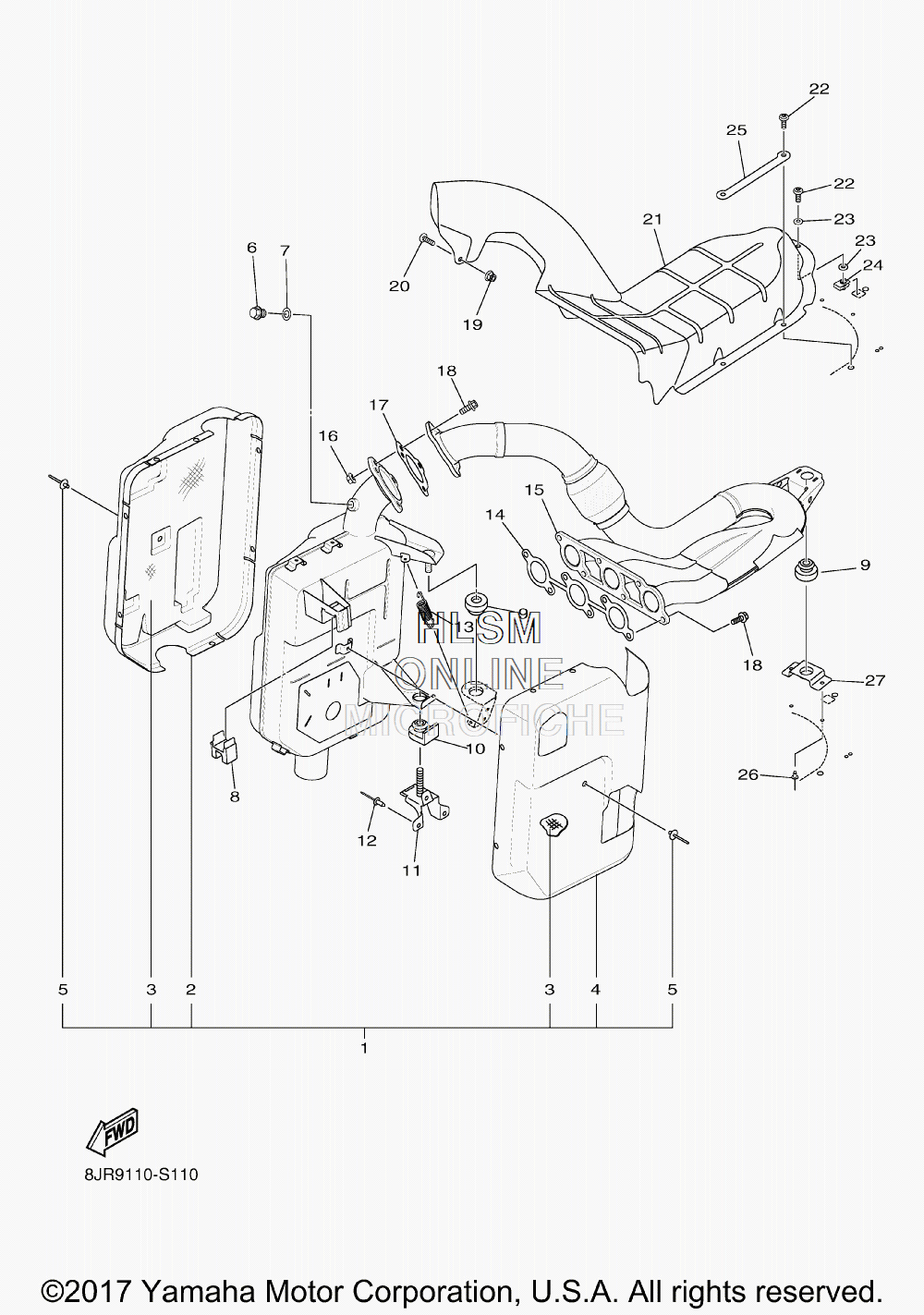

EXHAUST SYSTEM для Yamaha SR VENTURE DX - 2018 года выпуска
-
№АртикулНазвание
-
18JP-E4750-01-00 SILENCER ASSYSILENCER ASSY
-
28JP-E4728-00-00 ...PROTECTOR, MUFFLER 2...PROTECTOR, MUFFLER 2
-
38JP-E4733-00-00 ...MAT 1...MAT 1
-
48JP-E4718-00-00 ...PROTECTOR, MUFFLER 1...PROTECTOR, MUFFLER 1
-
58JP-RA512-00-00 ...RIVET, 3...RIVET, 3
-
68JP-F15A1-00-00 PLUG, DRAINPLUG, DRAIN
-
78JP-E4536-01-00 GASKETGASKET
-
88JP-E4664-00-00 GROMMET, WATER SHUTGROMMET, WATER SHUT
-
98JP-E5357-00-00 GROMMETGROMMET
-
108JP-E5375-00-00 GROMMETGROMMET
-
118JP-E4744-00-00 BRACKETBRACKET
-
128JP-RA521-00-00 RIVET, 12RIVET, 12
-
138JP-RAD14-00-00 SPRING, 3SPRING, 3
-
148GL-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
158JP-E4610-10-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
168JP-RA365-10-00 NUT, FLANGE LOCKING M8X1.25NUT, FLANGE LOCKING M8X1.25
-
178JP-E4623-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
188JP-RA184-00-00 BOLT, FLANGE M8X1.25X20BOLT, FLANGE M8X1.25X20
-
198JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
208JP-RA263-00-00 SCREW, M6X1.0X25SCREW, M6X1.0X25
-
218JP-E4627-00-00 COVER, EXHAUSTCOVER, EXHAUST
-
228JP-RA251-00-00 SCREW, M5X1.0X16SCREW, M5X1.0X16
-
238JP-RA441-00-00 WASHER, 1/4X0.625X0.065WASHER, 1/4X0.625X0.065
-
248JP-RA353-00-00 .NUT, CLIP M5.NUT, CLIP M5
-
258JP-E465R-00-00 PLATE, PROTECTOR 1PLATE, PROTECTOR 1
-
268JP-RA518-00-00 RIVET, 9RIVET, 9
-
278JP-E461L-00-00 BRAKET, 1-1BRAKET, 1-1
