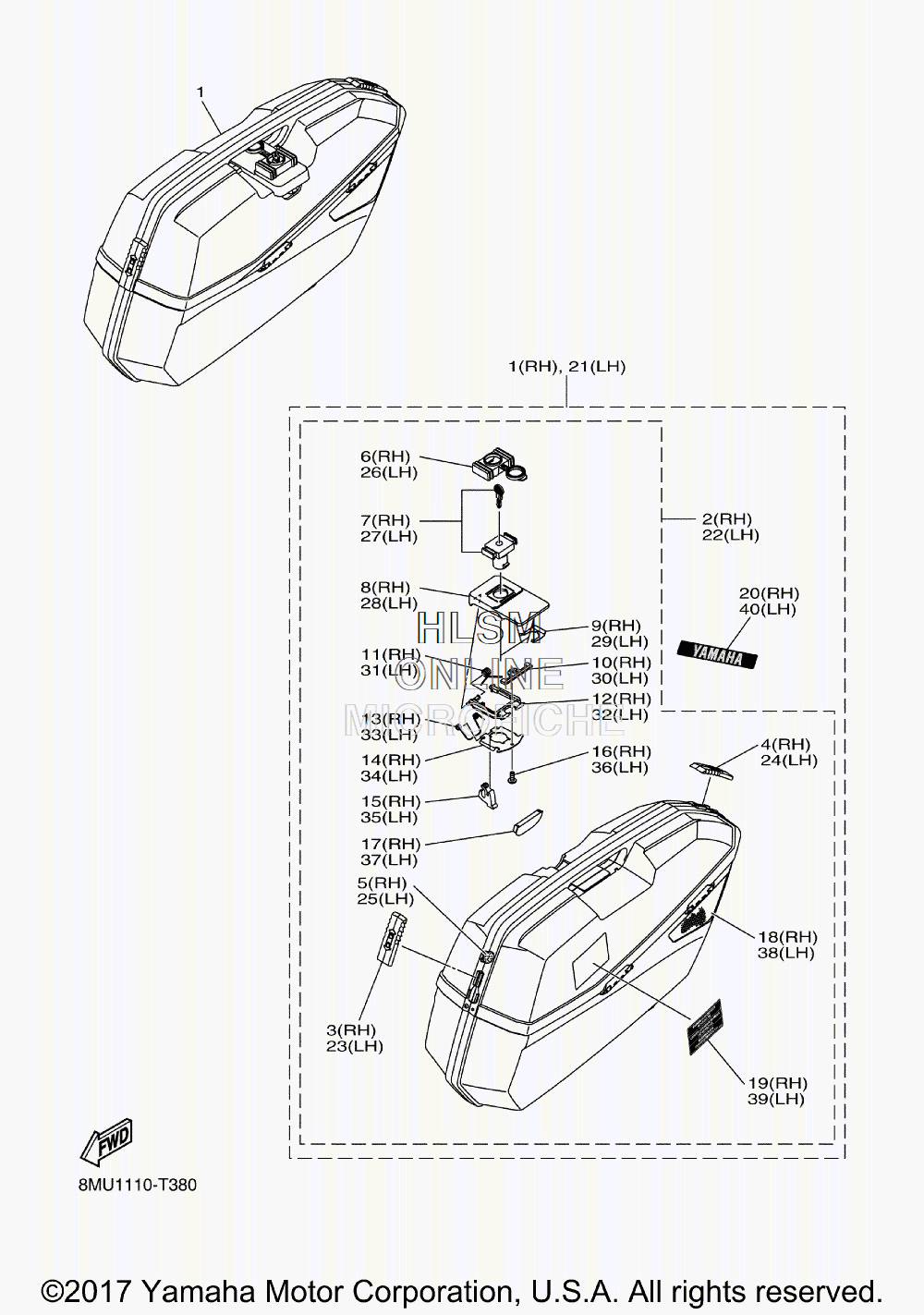

STORAGE BOX для Yamaha SR VENTURE DX - 2018 года выпуска
-
№АртикулНазвание
-
18MU-F846D-00-00 BOX, SIDE 2BOX, SIDE 2
-
28MU-F840W-00-00 ...SIDE BOX ASSY., 2...SIDE BOX ASSY., 2
-
38MU-K7172-00-00 ......BODY, LATCH 2......BODY, LATCH 2
-
48MU-K7182-00-00 ......BODY, LATCH 4......BODY, LATCH 4
-
58MU-F475M-00-00 ......SEAL......SEAL
-
68MU-F4796-00-00 ......COVER......COVER
-
78MU-H250A-00-00 ......KEY ASSY......KEY ASSY
-
88MU-F389F-00-00 ......HANDLE, LATCH......HANDLE, LATCH
-
98MU-F4387-00-00 ......CLIP......CLIP
-
108MU-H5757-00-00 ......RETAINER......RETAINER
-
118MU-F479A-00-00 ......SPRING......SPRING
-
128MU-F4859-00-00 ......HINGE......HINGE
-
138MU-F479E-00-00 ............SPRING 2............SPRING 2
-
148MU-F479K-00-00 ......PLATE, LOCK......PLATE, LOCK
-
158MU-F4754-00-00 ......HOOK, SEAT......HOOK, SEAT
-
168JP-RA291-00-00 ......SCREW, TAPPING......SCREW, TAPPING
-
178MU-F4768-00-00 ......STOPPER......STOPPER
-
188MU-H334B-00-00 ......REFLECTOR, 2......REFLECTOR, 2
-
198MU-F415C-00-00 ......LABEL......LABEL
-
208MU-F4875-00-00 ...LABEL 1...LABEL 1
-
218MU-F846C-00-00 BOX, SIDE 1BOX, SIDE 1
-
228MU-F840V-00-00 ...SIDE BOX ASSY., 1...SIDE BOX ASSY., 1
-
238MU-K7171-00-00 ......BODY, LATCH 1......BODY, LATCH 1
-
248MU-K7181-00-00 ......BODY, LATCH 3......BODY, LATCH 3
-
258MU-F475M-00-00 ......SEAL......SEAL
-
268MU-F4796-00-00 ......COVER......COVER
-
278MU-H250A-00-00 ......KEY ASSY......KEY ASSY
-
288MU-F389F-00-00 ......HANDLE, LATCH......HANDLE, LATCH
-
298MU-F4387-00-00 ......CLIP......CLIP
-
308MU-H5757-00-00 ......RETAINER......RETAINER
-
318MU-F479A-00-00 ......SPRING......SPRING
-
328MU-F4859-00-00 ......HINGE......HINGE
-
338MU-F479E-00-00 ......SPRING 2......SPRING 2
-
348MU-F479K-00-00 ......PLATE, LOCK......PLATE, LOCK
-
358MU-F4754-00-00 ......HOOK, SEAT......HOOK, SEAT
-
368JP-RA291-00-00 ......SCREW, TAPPING......SCREW, TAPPING
-
378MU-F4768-00-00 ......STOPPER......STOPPER
-
388MU-H333B-00-00 ......REFLECTOR 1......REFLECTOR 1
-
398MU-F415C-00-00 ......LABEL......LABEL
-
408MU-F4875-00-00 ...LABEL 1...LABEL 1
