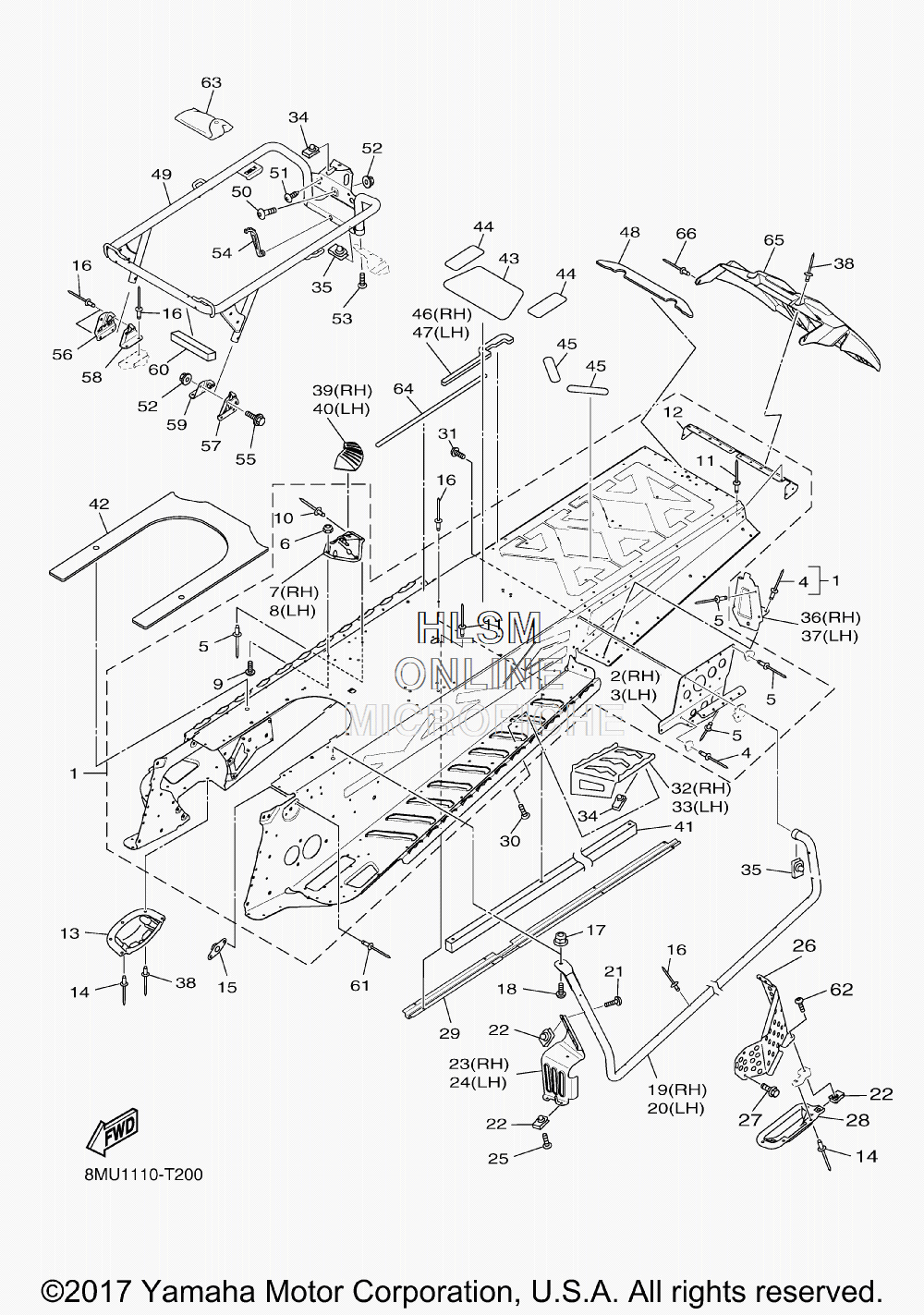

TUNNEL EXTENSION ASSEMBLY для Yamaha SR VENTURE DX - 2018 года выпуска
-
№АртикулНазвание
-
18LN-F1950-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
28LN-F1954-00-00 ...BRACKET, REAR TRACK SUSPENSION...BRACKET, REAR TRACK SUSPENSION
-
38LN-F1944-00-00 ...BRACKET, REAR TRACK SUSPENSION...BRACKET, REAR TRACK SUSPENSION
-
48JP-RA518-00-00 ...RIVET, 9...RIVET, 9
-
58JP-RA527-00-00 ...RIVET, 3/16...RIVET, 3/16
-
68JP-RA370-00-00 ...NUT, HEX. LOCKING...NUT, HEX. LOCKING
-
78JW-F115M-00-00 ...BRACKET, MEMBER 2...BRACKET, MEMBER 2
-
88JW-F115L-00-00 ...BRACKET, MEMBER 1...BRACKET, MEMBER 1
-
98JP-RA241-00-00 ...SCREW, M5X0.8X12...SCREW, M5X0.8X12
-
108JP-RA528-00-00 ...RIVET, 3/16...RIVET, 3/16
-
118JP-RA514-10-00 ...RIVET, 5...RIVET, 5
-
128LN-F1923-00-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
138JP-F2147-00-00 PROTECTOR, CHAINPROTECTOR, CHAIN
-
148JP-RA523-00-00 .RIVET, 14.RIVET, 14
-
158JP-F1919-00-00 BRACKETBRACKET
-
168JP-RA520-00-00 RIVET, 11RIVET, 11
-
178JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
188JP-RA272-00-00 SCREW, M8X1.25X20SCREW, M8X1.25X20
-
198LN-F192E-00-00 REINFORCEMENT, FRAMEREINFORCEMENT, FRAME
-
208LN-F1929-00-00 REINFORCEMENT, FRAME SIDEREINFORCEMENT, FRAME SIDE
-
218JP-RA247-00-00 SCREW, M5X0.8X35SCREW, M5X0.8X35
-
228JP-RA353-00-00 .NUT, CLIP M5.NUT, CLIP M5
-
238JW-F1996-00-00 REINFORCEMENT SUB FRAME FRONT 2REINFORCEMENT SUB FRAME FRONT 2
-
248JW-F1995-00-00 REINFORCEMENT SUB FRAME FRONT 1REINFORCEMENT SUB FRAME FRONT 1
-
258JP-RA251-00-00 SCREW, M5X1.0X16SCREW, M5X1.0X16
-
268LN-F5718-00-00 PROTECTOR, DISC BRAKEPROTECTOR, DISC BRAKE
-
278JP-RA179-00-00 BOLT, FLANGE M6X1.0X12BOLT, FLANGE M6X1.0X12
-
288JP-F5717-00-00 PROTECTOR, DISC BRAKEPROTECTOR, DISC BRAKE
-
298LN-H2589-00-00 PROTECTER, WIRE HARNESSPROTECTER, WIRE HARNESS
-
308KC-RA290-00-00 SCREWSCREW
-
318JP-RA261-00-00 SCREW, M6X1.0X20SCREW, M6X1.0X20
-
328MU-F7441-00-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
338MU-F7431-00-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
348JP-RA351-00-00 NUT, CLIP 10NUT, CLIP 10
-
358JP-RA354-00-00 NUT, CLIP M6NUT, CLIP M6
-
368LN-F1937-00-00 REINFORCEMENT, REAR FOOTREST 2REINFORCEMENT, REAR FOOTREST 2
-
378LN-F1927-00-00 REINFORCEMENT, REAR FOOTREST 1REINFORCEMENT, REAR FOOTREST 1
-
388JP-RA524-00-00 RIVET, 15RIVET, 15
-
398JP-F2556-00-00 SUPPORT, FUEL TANK 2SUPPORT, FUEL TANK 2
-
408JP-F2555-00-00 SUPPORT, FUEL TANK 1SUPPORT, FUEL TANK 1
-
418LN-F1978-10-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
428MJ-K8261-00-00 PLATE, BODY PROTECT 1PLATE, BODY PROTECT 1
-
438MJ-F4141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
448LN-F195A-00-00 PROTECTOR, FRAME APROTECTOR, FRAME A
-
458LN-F195B-00-00 PROTECTOR, FRAME BPROTECTOR, FRAME B
-
468LN-K8262-00-00 PLATE, BODY PROTECT 2PLATE, BODY PROTECT 2
-
478LN-K8263-00-00 PLATE, BODY PRTOTECT 3PLATE, BODY PRTOTECT 3
-
488LN-K8264-00-00 PLATE, BODY PROTECT 4PLATE, BODY PROTECT 4
-
498LN-K8341-00-00 FRAME, LUGGAGE RACK REARFRAME, LUGGAGE RACK REAR
-
508LN-K7519-00-00 BOLTBOLT
-
518JP-RA280-00-00 SCREW, TAPPING M6X12SCREW, TAPPING M6X12
-
528JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
538LN-K7537-00-00 BOLT 1BOLT 1
-
548LN-F15A4-00-00 END, STRAPEND, STRAP
-
558JP-RA1B4-10-00 BOLT, FLANGEBOLT, FLANGE
-
568LN-K7531-00-00 BRACKET, FRONTBRACKET, FRONT
-
578LN-K7532-00-00 BRACKET, FRONT (L.H)BRACKET, FRONT (L.H)
-
588LN-K7533-00-00 BRACKET, REAR (R.H)BRACKET, REAR (R.H)
-
598LN-K7534-00-00 BRACKET, REAR (L.H)BRACKET, REAR (L.H)
-
608MU-K7588-00-00 DAMPERDAMPER
-
618JP-RA521-00-00 RIVET, 12RIVET, 12
-
628JP-RA244-00-00 SCREW, M5X0.8X20SCREW, M5X0.8X20
-
638JP-F8100-00-00 TOOL KITTOOL KIT
-
648LN-K8261-00-00 PLATE, BODY PROTECT 1PLATE, BODY PROTECT 1
-
658LN-K7595-00-00 FLAPFLAP
-
668LN-RA525-00-00 RIVET, 16RIVET, 16
