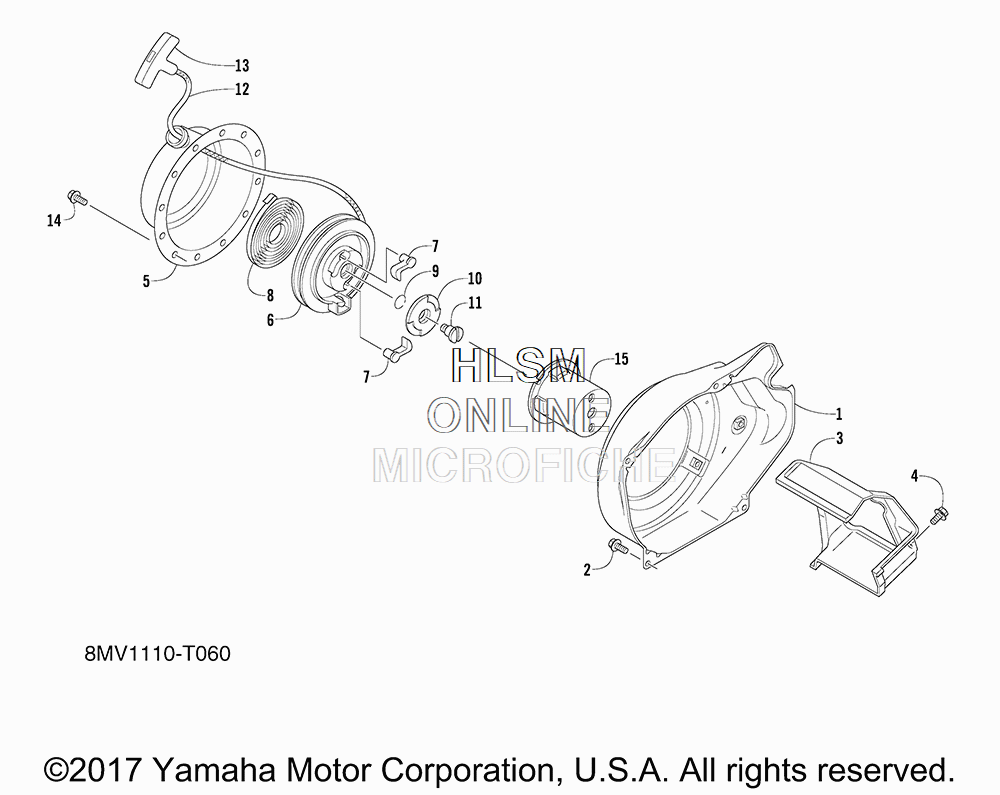

AIR SHROUD W/ RECOIL STARTER для Yamaha SRX 120 - 2018 года выпуска
-
№АртикулНазвание
-
17NJ-12621-00-00 CASE, FANCASE, FAN
-
295802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
37CN-E2651-01-00 AIR SHROUD, CYLINDER 1AIR SHROUD, CYLINDER 1
-
495822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
57CN-E5711-00-00 CASE, STARTERCASE, STARTER
-
67CN-E5714-03-00 DRUM, SHEAVEDRUM, SHEAVE
-
77CN-E5741-01-00 PAWL, DRIVEPAWL, DRIVE
-
87CN-E5713-00-00 SPRING, STARTERSPRING, STARTER
-
97CN-E5715-00-00 SPRING, FRICTIONSPRING, FRICTION
-
107CN-E5716-01-00 PLATE, DRIVEPLATE, DRIVE
-
117CN-E5793-00-00 SCREWSCREW
-
127CN-E5751-11-00 WIRE, STARTERWIRE, STARTER
-
137CN-E5755-00-00 HANDLE, STARTERHANDLE, STARTER
-
1495812-06008-00 BOLT, FLANGEBOLT, FLANGE
-
157CN-E5723-01-00 PULLEY, STARTERPULLEY, STARTER
