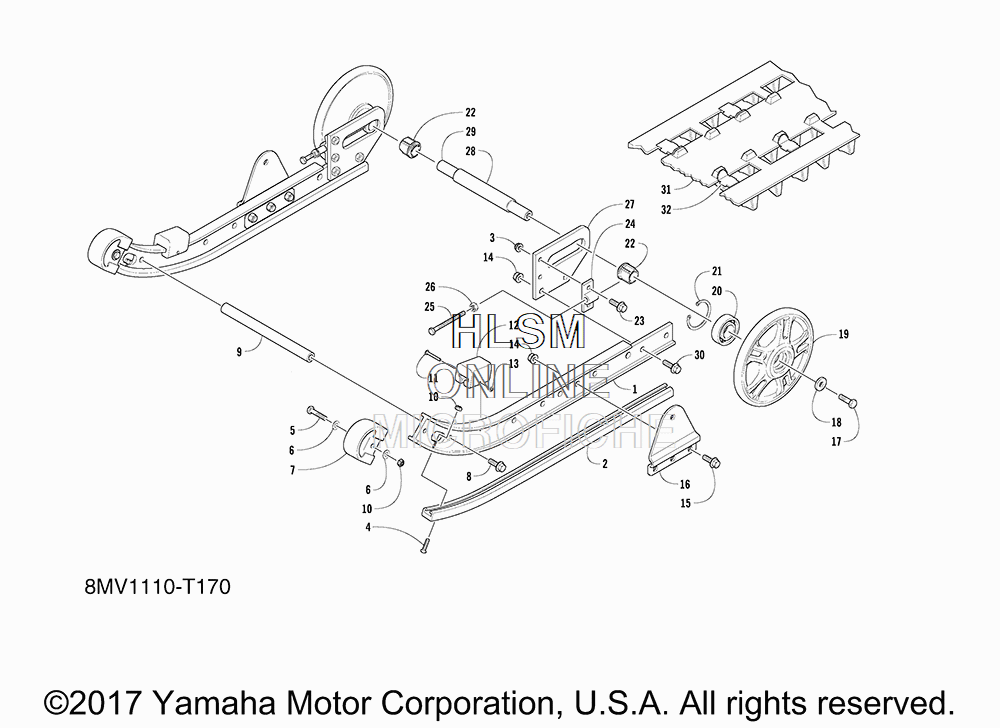

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha SRX 120 - 2018 года выпуска
-
№АртикулНазвание
-
18JM-G741A-00-00 FRAME, SLIDINGFRAME, SLIDING
-
28JM-G7421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
38JP-RA357-00-00 NUT, FLANGE LOCKING 1/4-20NUT, FLANGE LOCKING 1/4-20
-
48JM-RA206-00-00 SCREW, 1/4-20X1.125SCREW, 1/4-20X1.125
-
58JM-RA115-00-00 BOLT, HEXAGON 1/4-20X1.125BOLT, HEXAGON 1/4-20X1.125
-
68JP-RA441-00-00 WASHER, 1/4X0.625X0.065WASHER, 1/4X0.625X0.065
-
78JM-G7422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
88JM-RA116-00-00 BOLT, FLANGE 5/16-18X0.875BOLT, FLANGE 5/16-18X0.875
-
98JM-G7485-00-00 SHAFT 3SHAFT 3
-
108JM-RA311-00-00 NUT, SELF-LOCKING 1/4-20NUT, SELF-LOCKING 1/4-20
-
118JM-RAY02-00-00 PIN, 2PIN, 2
-
128JM-G7456-00-00 DAMPER 1DAMPER 1
-
138JM-RA313-00-00 NUT, SPRING 1/8NUT, SPRING 1/8
-
148JM-RA303-00-00 NUT, SELF-LOCKING 5/16-18NUT, SELF-LOCKING 5/16-18
-
158JM-RA117-00-00 BOLT, FLANGE 5/16-18X0.875BOLT, FLANGE 5/16-18X0.875
-
168JM-G7415-00-00 BRACKET 1BRACKET 1
-
178JM-RA118-00-00 BOLT, FLANGE 3/8-16X1BOLT, FLANGE 3/8-16X1
-
188JM-RA409-00-00 WASHER, PLAIN 0.39WASHER, PLAIN 0.39
-
198JM-G7550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
208JM-RAY03-00-00 ...BEARING, 2...BEARING, 2
-
218JM-RAH01-00-00 ...CIRCLIP, 2...CIRCLIP, 2
-
228JM-G7341-00-00 SPACERSPACER
-
238MV-RA106-00-00 BOLT, FLANGE 1/4-20X0.75BOLT, FLANGE 1/4-20X0.75
-
248JM-G8177-00-00 PLATE, ADJUSTINGPLATE, ADJUSTING
-
258JM-RA119-00-00 BOLT, HEXAGON 3/8-16X4BOLT, HEXAGON 3/8-16X4
-
268JM-RA314-10-00 NUT, HEXAGON 3/8-16NUT, HEXAGON 3/8-16
-
278JM-G741C-00-00 FRAME, SLIDING CFRAME, SLIDING C
-
288JM-RA706-00-00 COLLAR, 20COLLAR, 20
-
298JM-G7521-00-00 AXLE, REARAXLE, REAR
-
308MV-RA117-00-00 BOLT, FLANGE 5/16-18X0.875BOLT, FLANGE 5/16-18X0.875
-
318MV-G7110-00-00 TRACK ASSYTRACK ASSY
-
328JM-G7119-00-00 ...METAL, GUIDE...METAL, GUIDE
