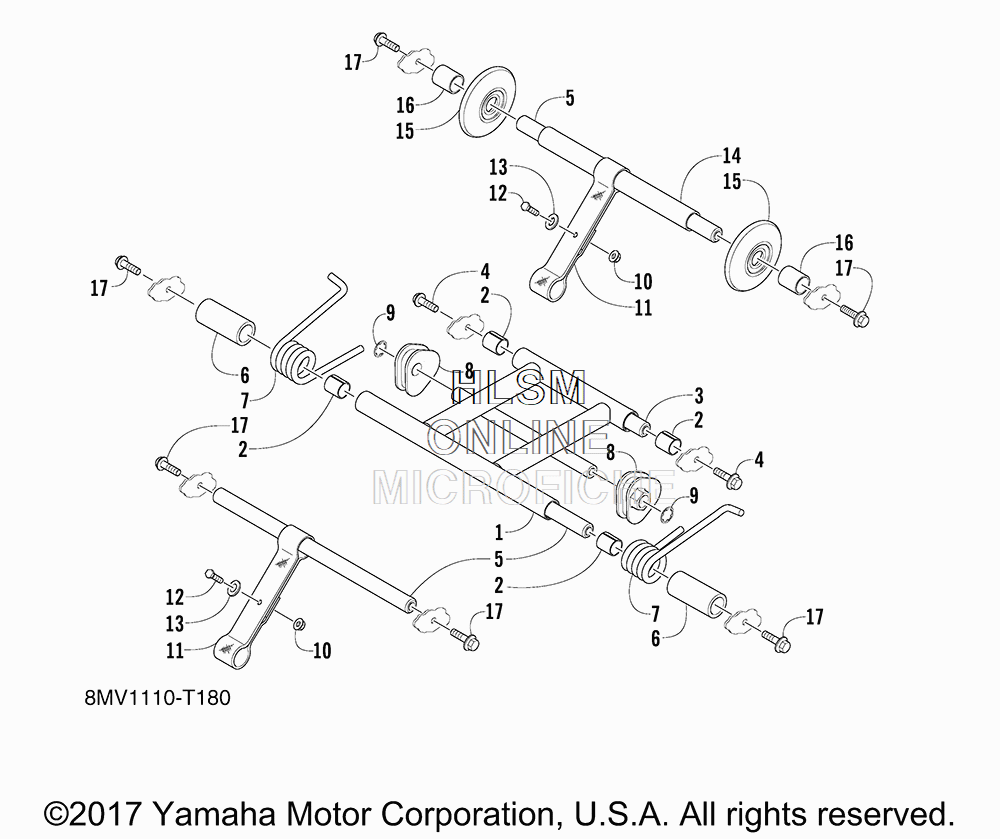

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha SRX 120 - 2018 года выпуска
-
№АртикулНазвание
-
18JM-G7331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
28JM-RA801-00-00 ...BUSH, 16...BUSH, 16
-
38JM-G7486-00-00 SHAFT 4SHAFT 4
-
48JM-RA116-00-00 BOLT, FLANGE 5/16-18X0.875BOLT, FLANGE 5/16-18X0.875
-
58JM-G7465-00-00 SHAFT 1SHAFT 1
-
68JM-RA705-00-00 COLLAR, 22COLLAR, 22
-
78JM-G7473-00-00 SPRING, REAR 1 - LEFTSPRING, REAR 1 - LEFT
-
78JM-G7474-00-00 SPRING, REAR 2 - RIGHTSPRING, REAR 2 - RIGHT
-
88JM-G7447-00-00 HOOK 2 - LEFTHOOK 2 - LEFT
-
88JM-G7448-00-00 HOOK 3 - RIGHTHOOK 3 - RIGHT
-
98JM-RA315-00-00 NUTNUT
-
108JP-RA357-00-00 NUT, FLANGE LOCKING 1/4-20NUT, FLANGE LOCKING 1/4-20
-
118JM-G7495-00-00 STOPPER 1STOPPER 1
-
128JM-RA120-00-00 BOLT, HEXAGON 1/4-20X1BOLT, HEXAGON 1/4-20X1
-
138JM-RA400-00-00 WASHER, PLAIN 1/4WASHER, PLAIN 1/4
-
148JM-RA708-00-00 COLLAR, 17COLLAR, 17
-
158JM-G7310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
168JM-RA709-00-00 COLLAR, 17COLLAR, 17
-
178JM-RA117-00-00 BOLT, FLANGE 5/16-18X0.875BOLT, FLANGE 5/16-18X0.875
