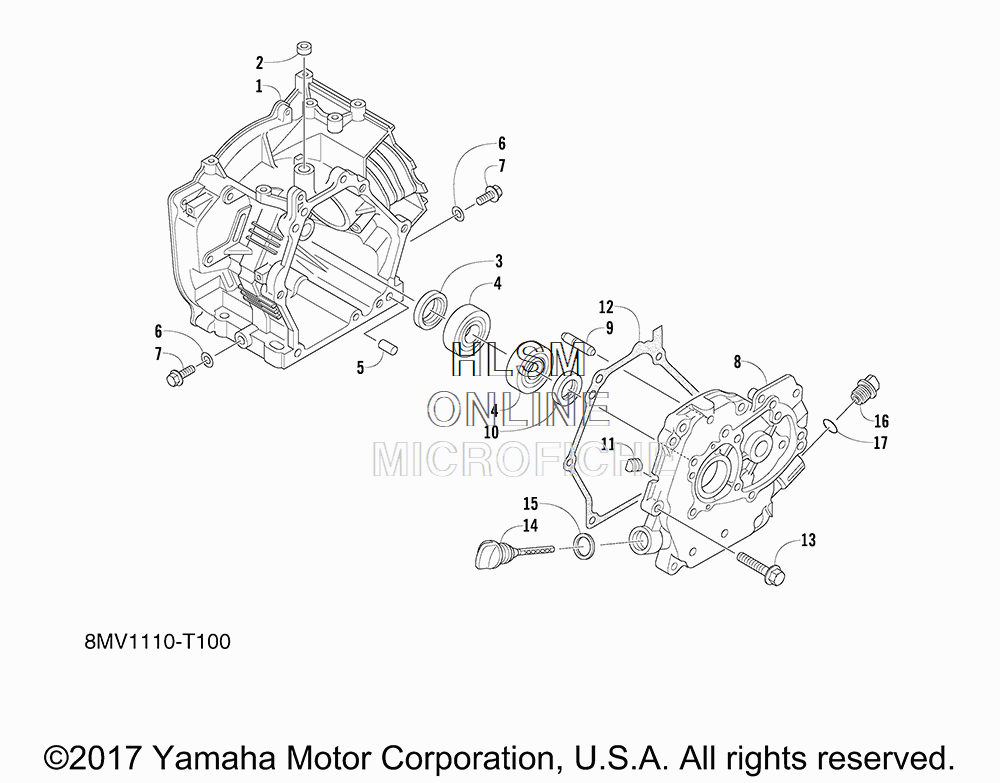

CRANKCASE ASSY для Yamaha SRX 120 - 2018 года выпуска
-
№АртикулНазвание
-
17CL-E5111-21-00 CRANKCASE 1CRANKCASE 1
-
293104-06800-00 OIL SEALOIL SEAL
-
393102-25806-00 OIL SEALOIL SEAL
-
493306-205XE-00 BEARINGBEARING
-
599530-08016-00 PIN, DOWELPIN, DOWEL
-
690430-10801-00 GASKETGASKET
-
795022-10016-00 BOLT, FLANGEBOLT, FLANGE
-
87CN-E5411-50-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
97CN-E1971-00-00 SHAFT, FLYWEIGHTSHAFT, FLYWEIGHT
-
1093102-25805-00 OIL SEALOIL SEAL
-
1190338-06800-00 PLUGPLUG
-
127CN-E5451-10-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
1395822-08035-00 BOLT, FLANGEBOLT, FLANGE
-
147BX-E536A-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
1590430-17801-00 ...GASKET...GASKET
-
167CN-E5362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
1793210-13801-00 O-RINGO-RING
