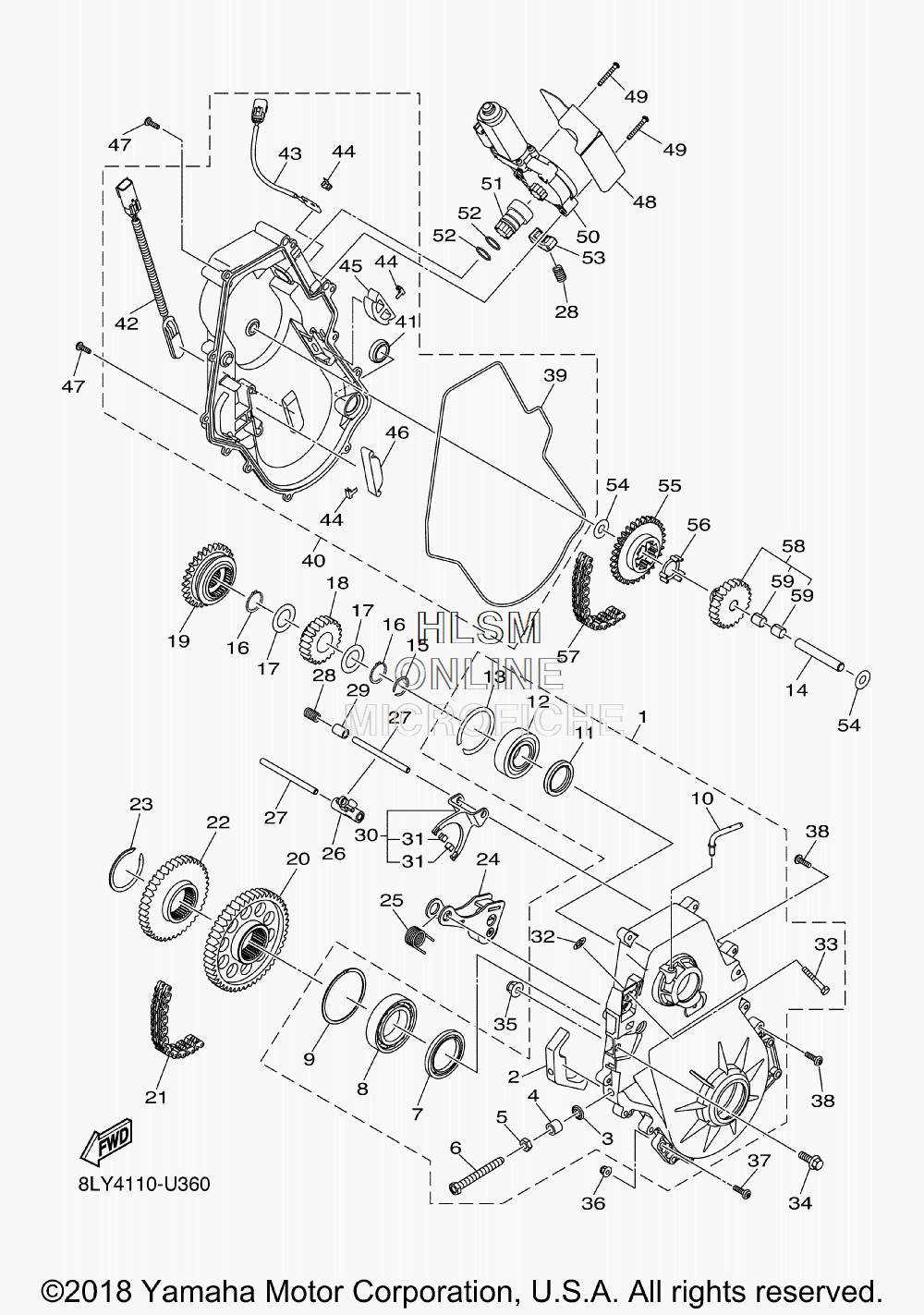

CHAINCASE ASSY для Yamaha SIDEWINDER B TX LE 153 - 2019 года выпуска
-
№АртикулНазвание
-
18JP-G754A-20-00 CHAIN CASE ASSYCHAIN CASE ASSY
-
28JP-G7516-00-00 ...PLATE RATCHET...PLATE RATCHET
-
390210-10004-00 ...WASHER SEAL...WASHER SEAL
-
48JP-RA716-00-00 ...COLLAR 4...COLLAR 4
-
58JP-RA366-00-00 ...NUT HEXAGON...NUT HEXAGON
-
68JP-RA1A8-00-00 ...BOLT HEXAGON...BOLT HEXAGON
-
78JP-RAE03-00-00 ...SEAL OIL...SEAL OIL
-
88JP-RAG05-00-00 ...BEARING...BEARING
-
98JP-RAH05-00-00 ...CIRCLIP (C-IN)...CIRCLIP (C-IN)
-
108JP-G7586-00-00 ...BREATHER...BREATHER
-
118JP-RAE01-00-00 ...SEAL OIL...SEAL OIL
-
128JP-RAG07-10-00 ...BEARING...BEARING
-
138JP-RAH06-00-00 ...CIRCLIP (C-IN)...CIRCLIP (C-IN)
-
148JP-E761A-00-00 SHAFT 1SHAFT 1
-
158JP-RAC04-00-00 CIRCLIP 5CIRCLIP 5
-
168JP-RAH11-00-00 CIRCLIP 5CIRCLIP 5
-
178JP-RA440-00-00 WASHERWASHER
-
188KC-E769A-41-00 DRIVE SPROCKET ASSYDRIVE SPROCKET ASSY
-
198JP-E7143-00-00 GEAR REVERSE PINION 1GEAR REVERSE PINION 1
-
208JP-G7587-00-00 SPROCKET CHAIN DRIVEN (50T)SPROCKET CHAIN DRIVEN (50T)
-
218KC-RAM01-00-00 CHAIN BWA (92L)CHAIN BWA (92L)
-
228JP-G7548-00-00 SPROCKET CHAIN DRIVEN (40T)SPROCKET CHAIN DRIVEN (40T)
-
238JP-RAC03-00-00 CIRCLIP 4CIRCLIP 4
-
248JP-G7613-01-00 HOLDERHOLDER
-
258JP-RAD12-00-00 SPRING 1SPRING 1
-
268JP-E8112-00-00 ARM SHIFTARM SHIFT
-
278JP-E8125-00-00 SHAFT SHIFTSHAFT SHIFT
-
288JP-RAD13-00-00 SPRING 2SPRING 2
-
298JP-RA803-00-00 BUSH 2BUSH 2
-
308JP-E8501-00-00 FORK SHIFT 1FORK SHIFT 1
-
318JP-G7614-00-00 ...SHOE...SHOE
-
328JP-RA347-00-00 ...NUT SPRING (IN 1)...NUT SPRING (IN 1)
-
338JP-RA1A9-00-00 ...BOLT HEXAGON (IN 1)...BOLT HEXAGON (IN 1)
-
348JP-RA185-00-00 BOLT FLANGEBOLT FLANGE
-
358JM-RA301-00-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
368JM-RA322-00-00 NUT FLANGE M6-1.0NUT FLANGE M6-1.0
-
378JP-RA266-00-00 SCREWSCREW
-
388JP-RA283-00-00 SCREW TAPPINGSCREW TAPPING
-
398JP-G7558-02-00 ...RING HOUSING (IN 40)...RING HOUSING (IN 40)
-
408JP-G754B-02-00 HOUSING CAP ASSYHOUSING CAP ASSY
-
418JP-E5361-00-00 ...GAUGE LEVEL...GAUGE LEVEL
-
428JP-H5985-00-00 ...SENSOR SPEED...SENSOR SPEED
-
438JP-H5899-00-00 ...SENSOR GEAR POSITION...SENSOR GEAR POSITION
-
448JP-RAC12-00-00 ...CLIP 3...CLIP 3
-
458JP-E7468-00-00 ...GUIDE CHAIN 2...GUIDE CHAIN 2
-
468JP-E7467-00-00 ...GUIDE CHAIN 1...GUIDE CHAIN 1
-
478KG-RA229-00-00 SCREWSCREW
-
488KC-G613F-00-00 COVER 1COVER 1
-
498JP-RA247-00-00 SCREWSCREW
-
508JP-G616A-10-00 SERVO MOTOR COMPSERVO MOTOR COMP
-
518JP-E7848-10-00 ADAPTERADAPTER
-
528JP-RAF04-00-00 O-RING 2O-RING 2
-
538JP-E8128-00-00 BRACKETBRACKET
-
548JP-RA444-00-00 WASHERWASHER
-
558JP-E7692-00-00 SPROCKET DRIVE (30T)SPROCKET DRIVE (30T)
-
568JP-E8615-00-00 DAMPER RUBBERDAMPER RUBBER
-
578JP-RAM02-00-00 CHAIN REXCHAIN REX
-
588JP-E724A-00-00 REVERSE WHEEL ASSYREVERSE WHEEL ASSY
-
598JP-RA809-00-00 ...BUSH...BUSH
